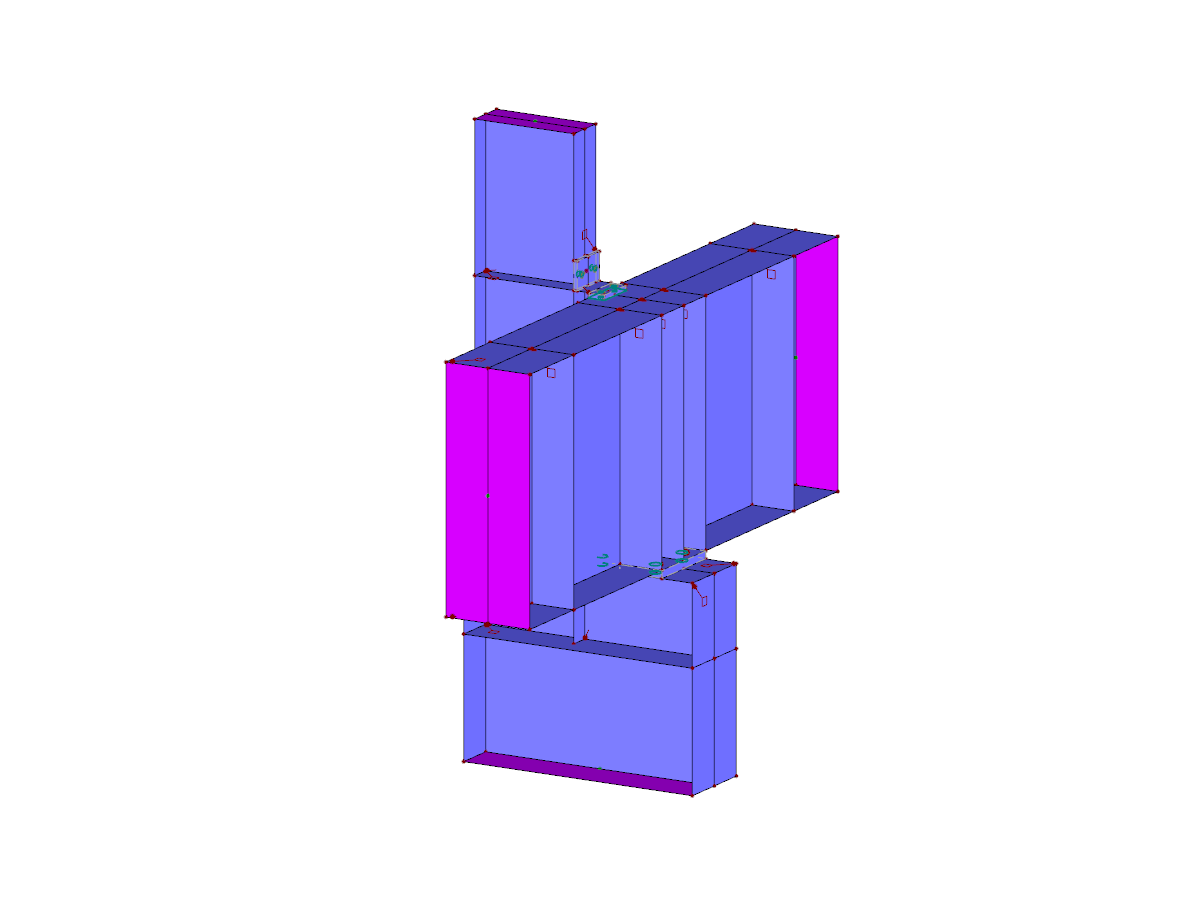

Beam Rail Column Connection
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 149 |
| Number of Lines | 204 |
| Number of Members | 8 |
| Number of Surfaces | 82 |
| Number of Solids | 3 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.324 tons |
| Dimensions (Metric) | 0.600 x 1.500 x 1.400 m |
| Dimensions (Imperial) | 1.97 x 4.92 x 4.59 feet |
