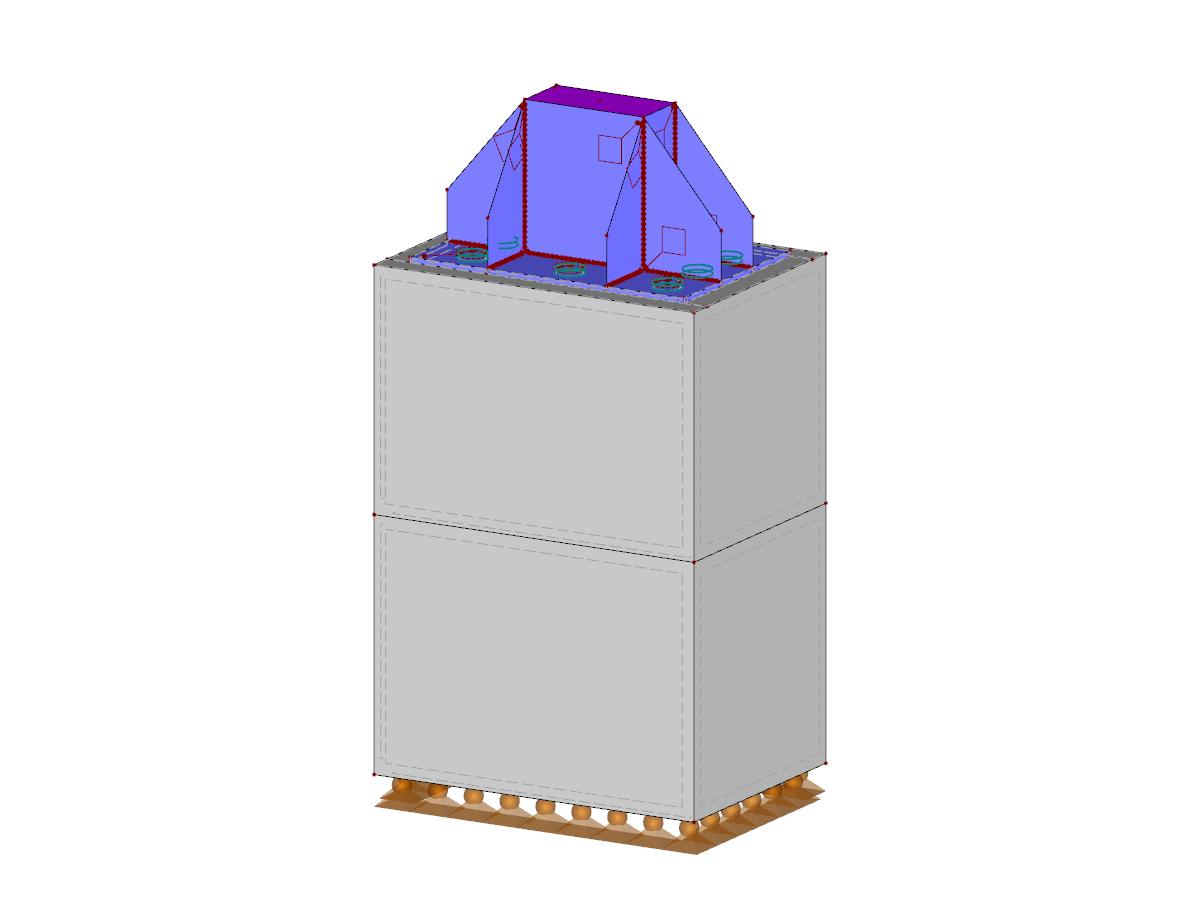

Base Plate for Tubular Posts with Gussets
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 129 |
| Number of Lines | 124 |
| Number of Members | 8 |
| Number of Surfaces | 65 |
| Number of Solids | 3 |
| Total Weight | 0.912 tons |
| Dimensions (Metric) | 0.700 x 0.500 x 1.310 m |
| Dimensions (Imperial) | 2.3 x 1.64 x 4.3 feet |
| Program Version | 5.25.01 |
