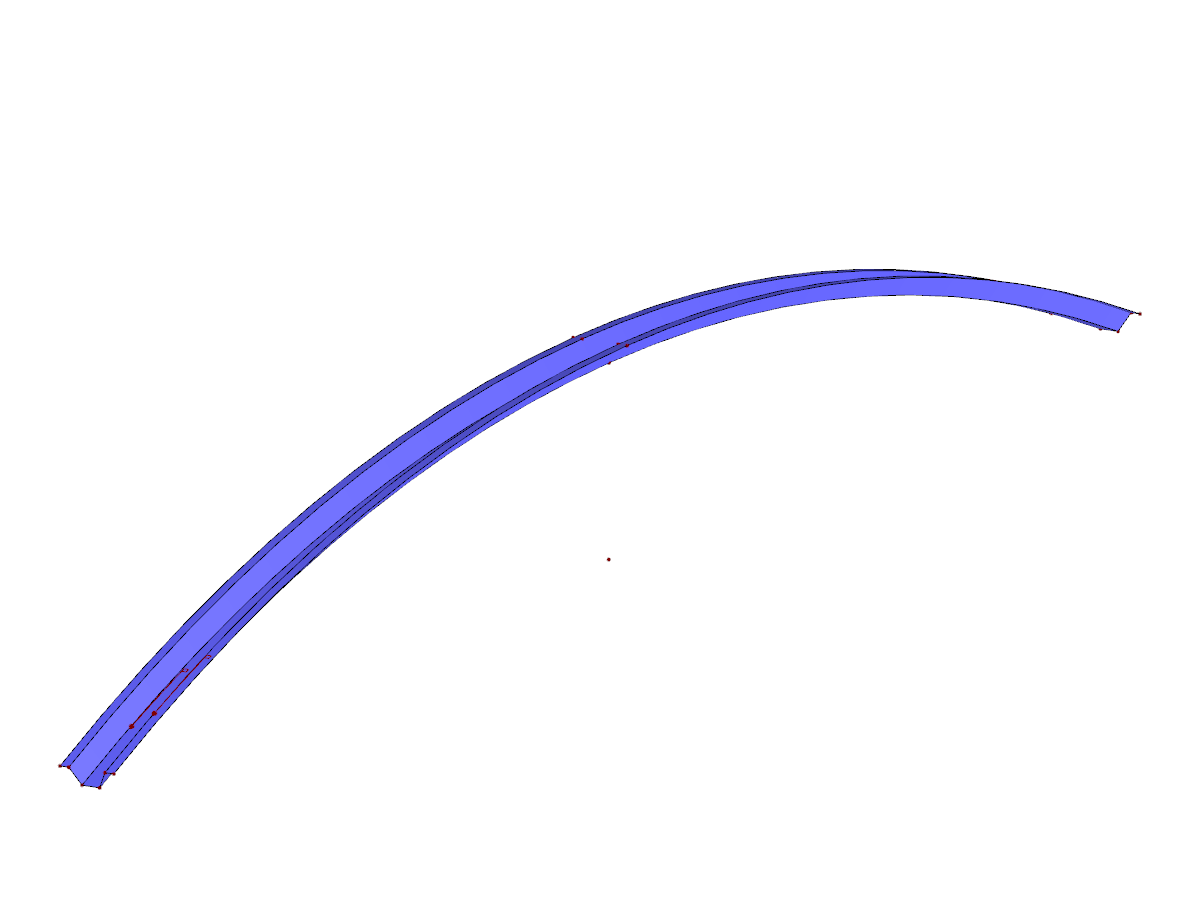

Trapezoidal Section Arc
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 13 |
| Number of Lines | 16 |
| Number of Members | 0 |
| Number of Surfaces | 5 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.169 tons |
| Dimensions (Metric) | 0.610 x 2.202 x 20.155 m |
| Dimensions (Imperial) | 2 x 7.22 x 66.13 feet |
