Dialog Box "New Combination Wizard"

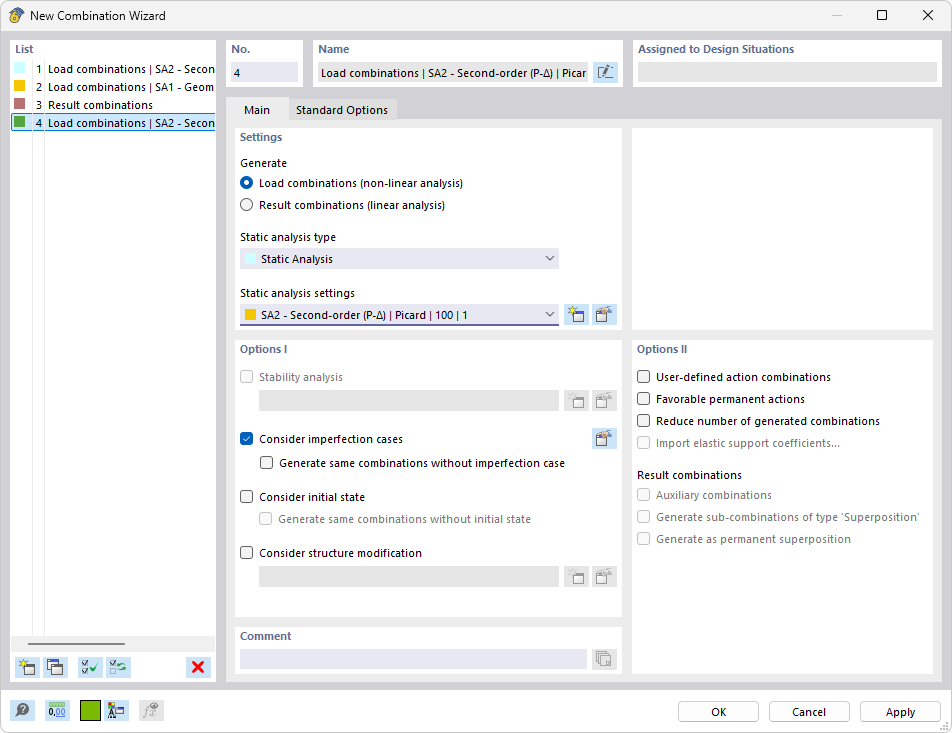

Dialog box "New Combination Wizard"
The "New Combination Wizard" dialog box shows the generation of the load combination No. 4, named "Load Combinations | SA3 - Second Order (P-Δ) | Picard." In the “Main” tab, the generation of load combinations for nonlinear calculation is activated. The structural analysis setting “SA2 - Second Order (P-Δ)” is selected, using the Picard iteration method with 100 iterations. Under Options I, the option to consider imperfection cases is checked, while stability analysis, initial state, and structure modification are disabled. In Options II, you can enable user-defined action combinations, favorable permanent actions, and a reduction in the number of generated action combinations.
