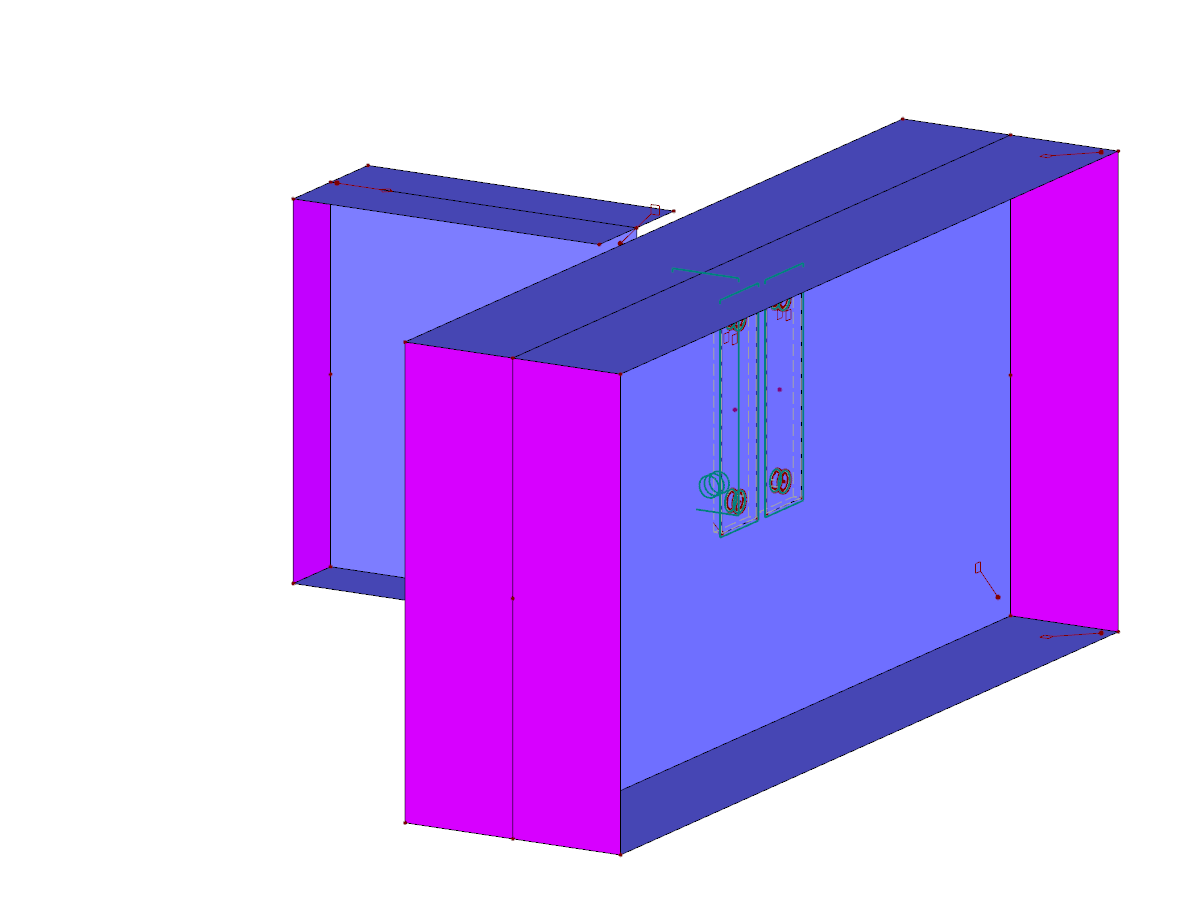

Beam-to-Beam Joint
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 83 |
| Number of Lines | 113 |
| Number of Members | 6 |
| Number of Surfaces | 55 |
| Number of Solids | 4 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.103 tons |
| Dimensions (Metric) | 0.625 x 0.500 x 1.000 m |
| Dimensions (Imperial) | 2.05 x 1.64 x 3.28 feet |
