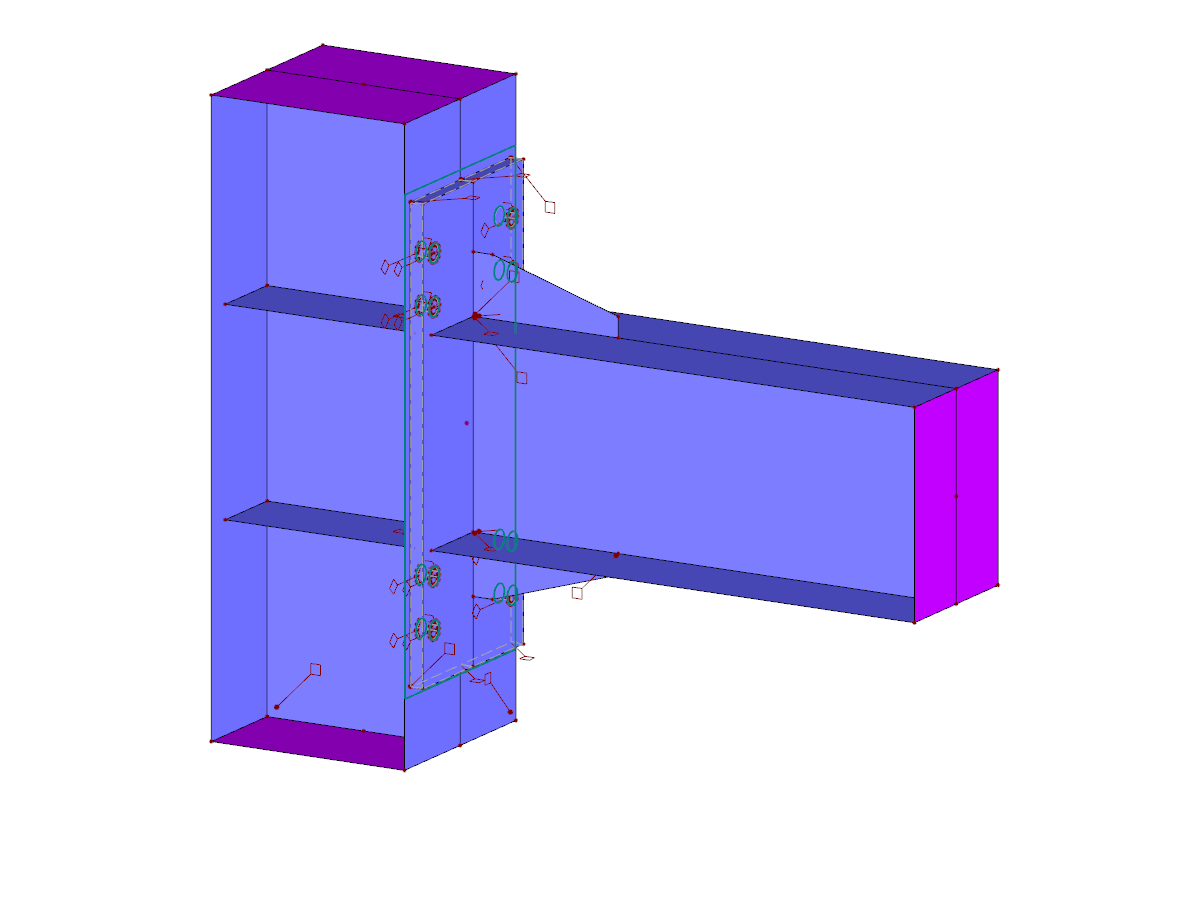

Moment Connection with Stiffeners
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 93 |
| Number of Lines | 120 |
| Number of Members | 8 |
| Number of Surfaces | 49 |
| Number of Solids | 1 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.058 tons |
| Dimensions (Metric) | 0.713 x 0.600 x 0.200 m |
| Dimensions (Imperial) | 2.34 x 1.97 x 0.66 feet |
