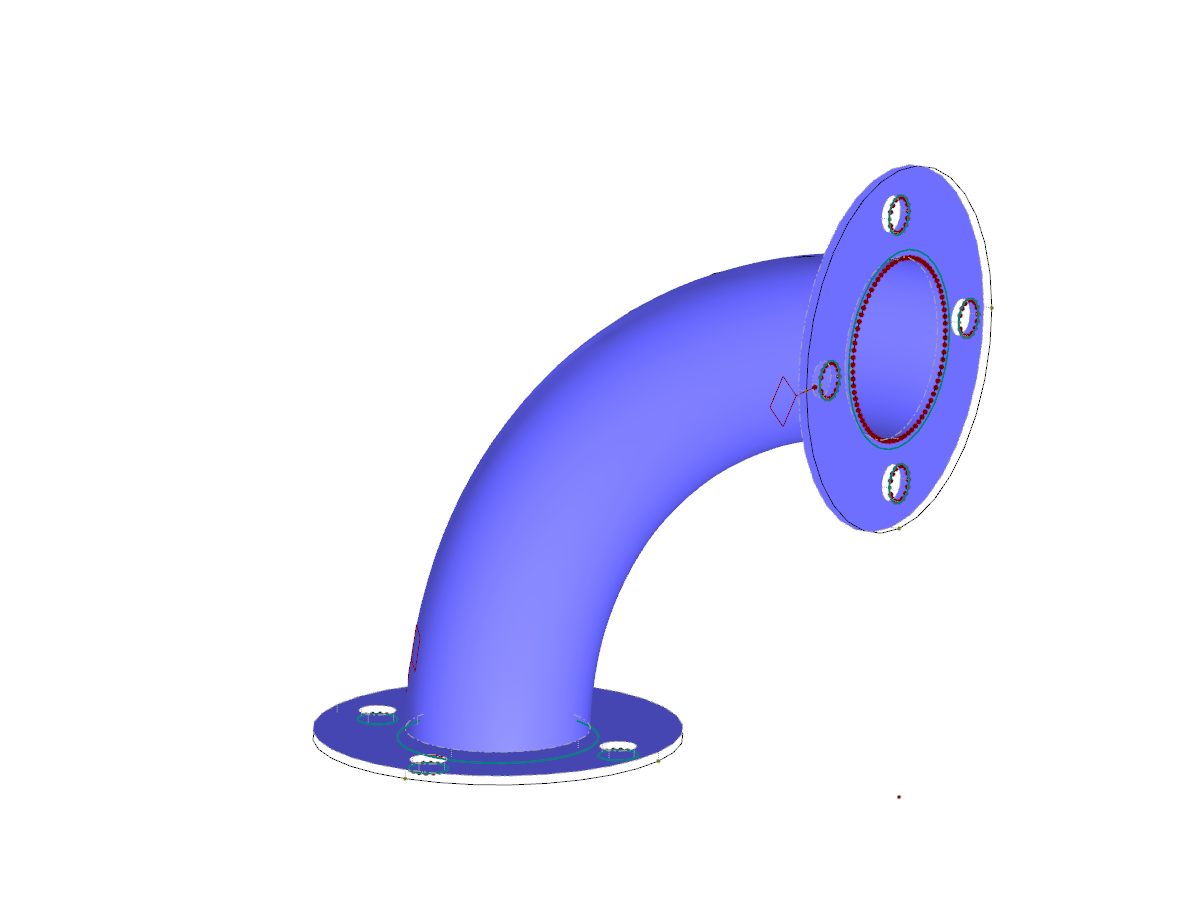

Flanged Elbow Pipe
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 17 |
| Number of Lines | 13 |
| Number of Members | 0 |
| Number of Surfaces | 3 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.170 tons |
| Dimensions (Metric) | 0.875 x 0.875 x 0.500 m |
| Dimensions (Imperial) | 2.87 x 2.87 x 1.64 feet |
