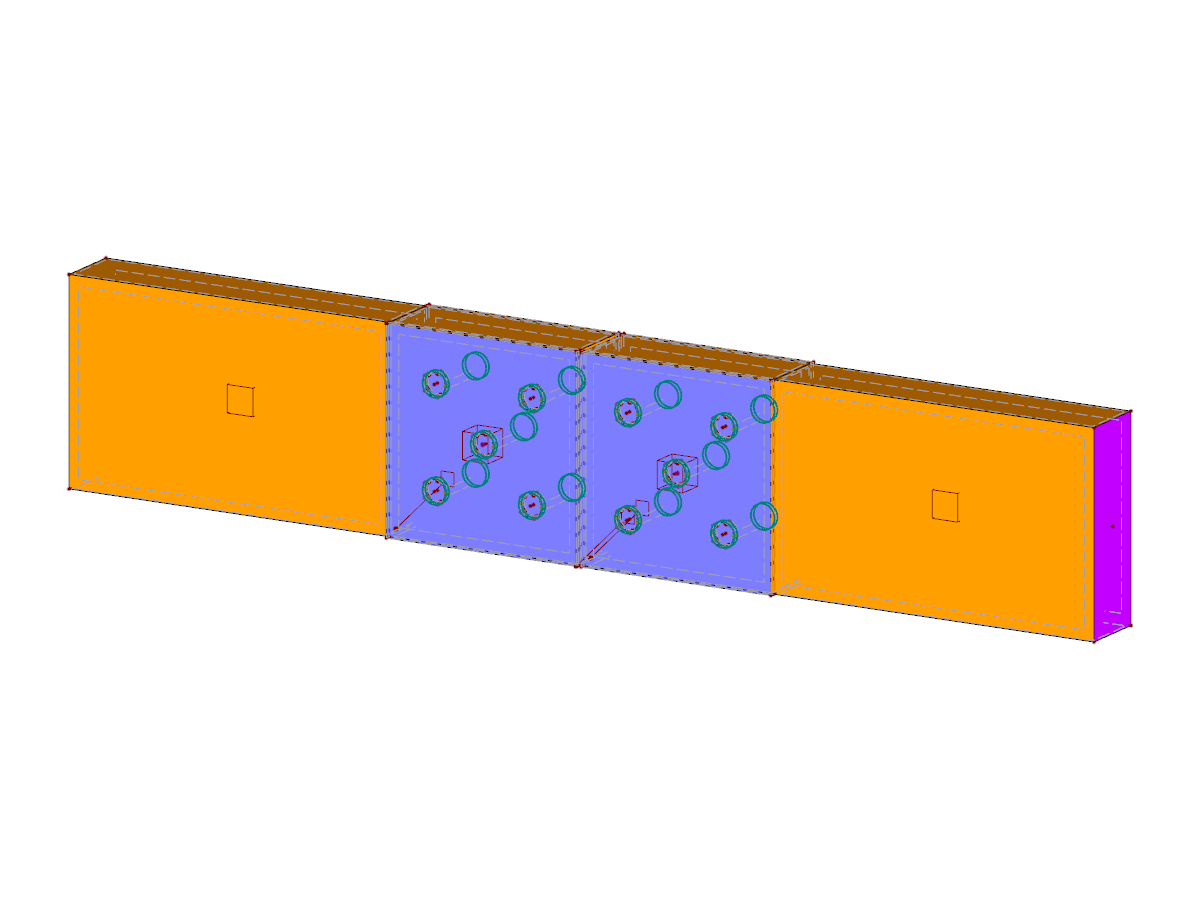

Timber Beam Splice Connection
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 122 |
| Number of Lines | 156 |
| Number of Members | 10 |
| Number of Surfaces | 94 |
| Number of Solids | 8 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 2 |
| Number of Result Combinations | 2 |
| Total Weight | 0.007 tons |
| Dimensions (Metric) | 0.800 x 0.150 x 0.058 m |
| Dimensions (Imperial) | 2.62 x 0.49 x 0.19 feet |
