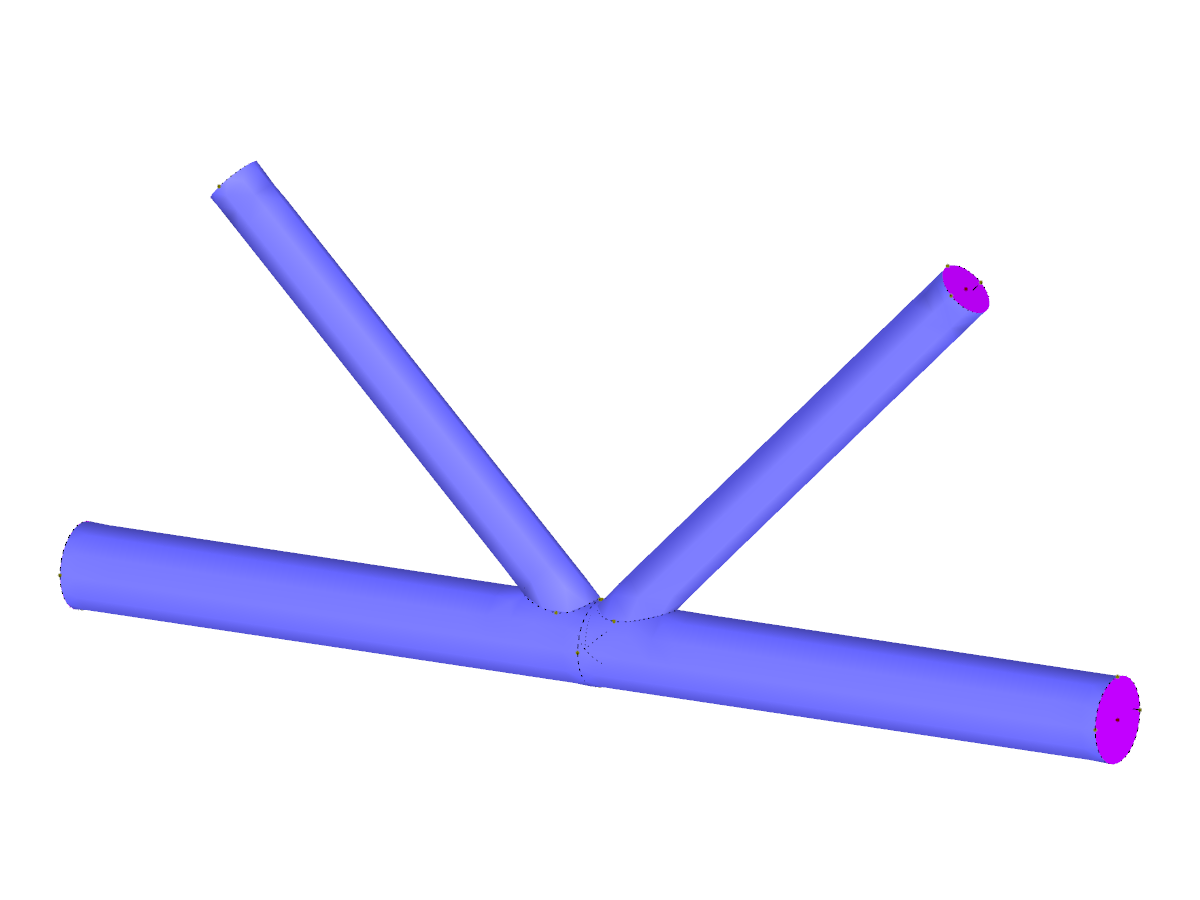

Connection of Tubular Profiles
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 31 |
| Number of Lines | 19 |
| Number of Members | 4 |
| Number of Surfaces | 18 |
| Total Weight | 0.024 tons |
| Dimensions (Metric) | 1.116 x 0.191 x 0.521 m |
| Dimensions (Imperial) | 3.66 x 0.63 x 1.71 feet |
| Program Version | 5.26.01 |
