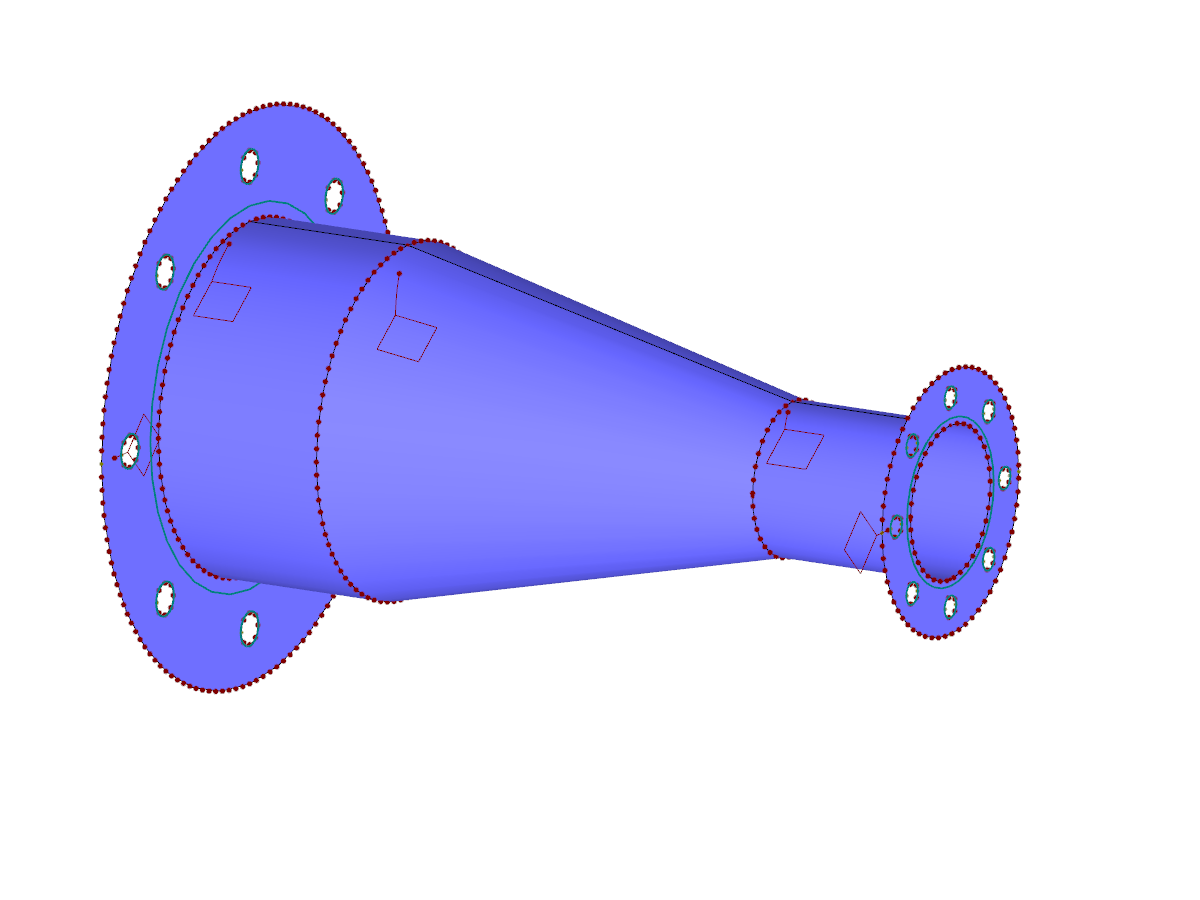

Pipe Reduction
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 66 |
| Number of Lines | 25 |
| Number of Surfaces | 5 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 2 |
| Number of Result Combinations | 2 |
| Total Weight | 0.665 tons |
| Dimensions (Metric) | 2.251 x 1.457 x 1.462 m |
| Dimensions (Imperial) | 7.39 x 4.78 x 4.8 feet |
| Program Version | 5.25.01 |
