FAQ 005085 | Compression and Tension Colors

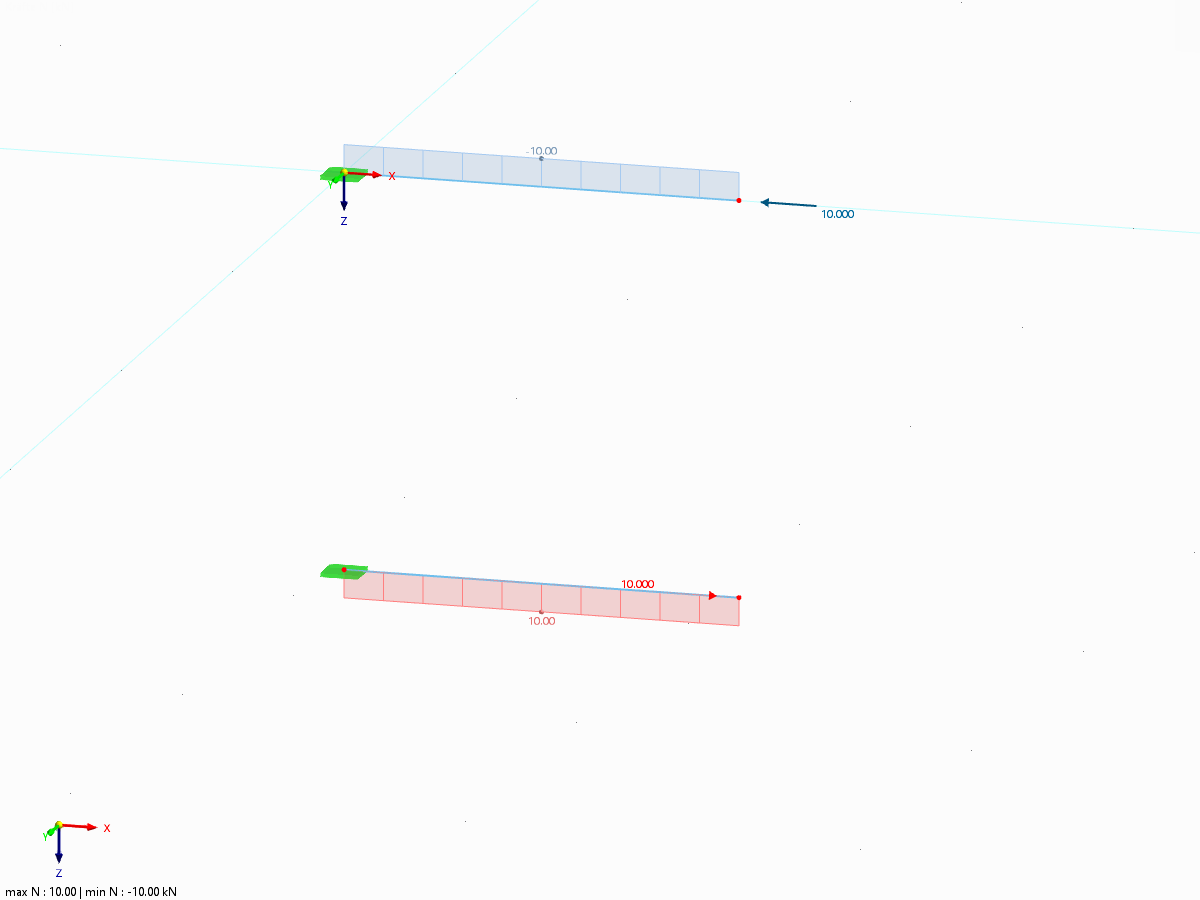

FAQ 005085 | What is the reason for changing the colors for compression and tension in RFEM 6 and RSTAB 9 with respect to previous program versions? Since then, compression has been red and tension has been blue.
3D Model
Specifications
| Number of Nodes | 4 |
| Number of Lines | 2 |
| Number of Members | 2 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 1 |
| Number of Result Combinations | 0 |
| Total Weight | 0.072 tons |
| Dimensions (Metric) | 1,000 x 1,000 x 0,000 m |
| Dimensions (Imperial) | 3.28 x 3.28 x 0 feet |
2024-03-09
024812
Models of Cantilevered Beams

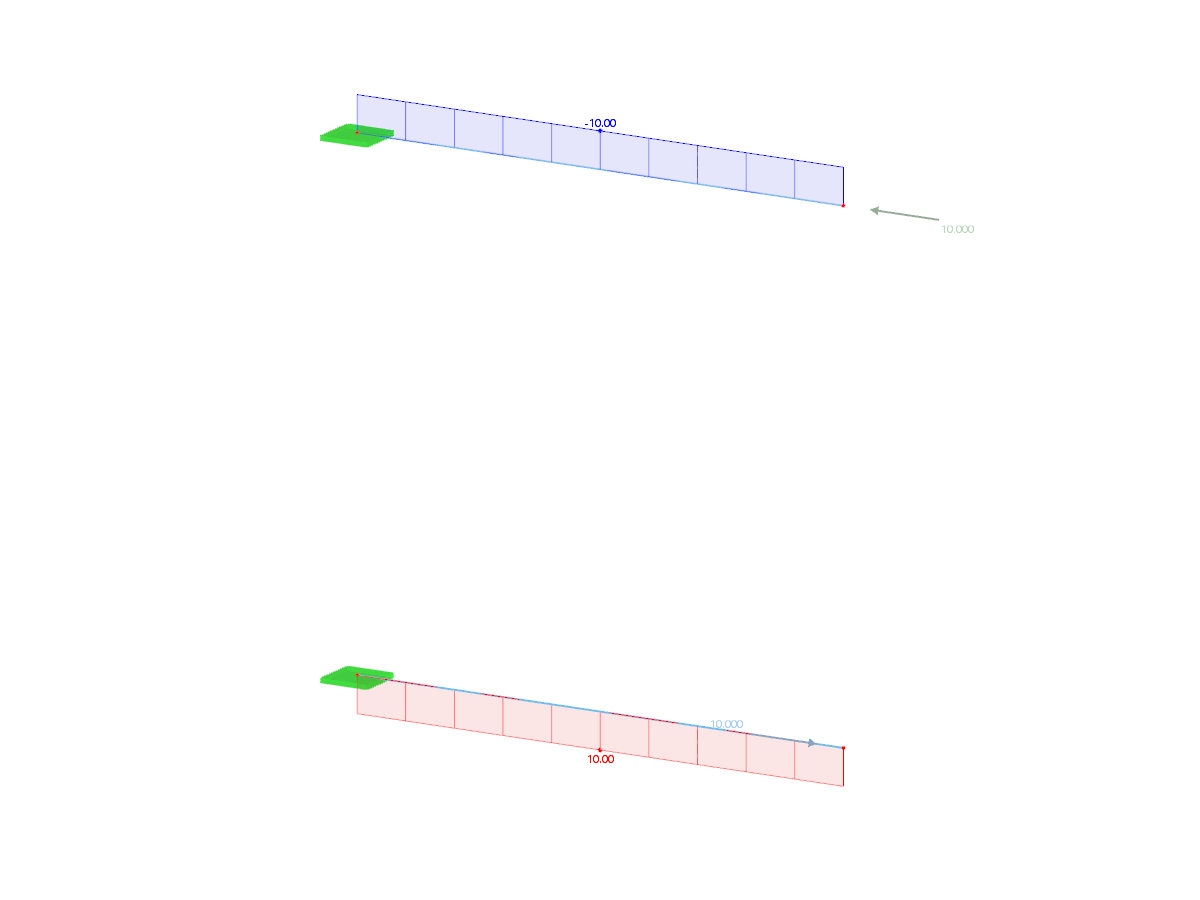

Models of Cantilevers
