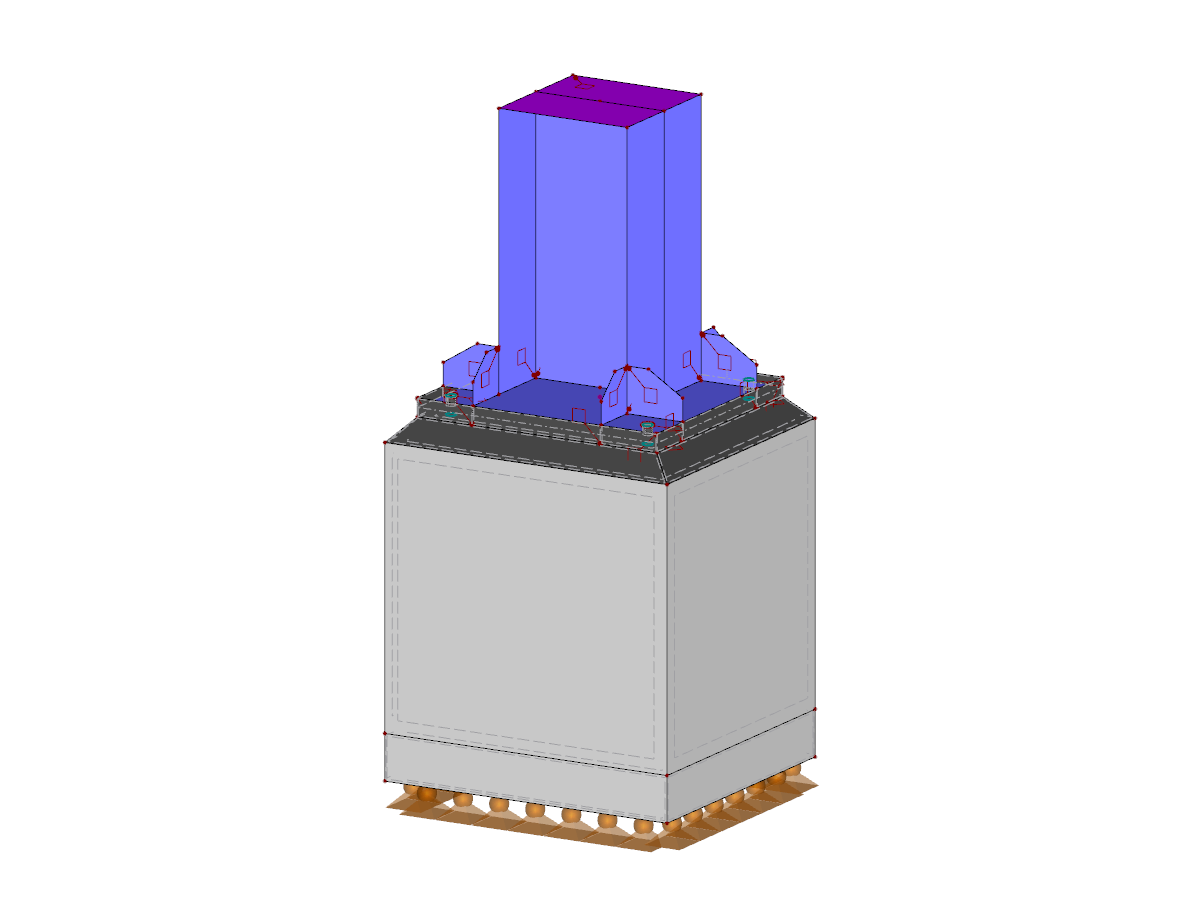

Gusseted Base Plate
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 102 |
| Number of Lines | 132 |
| Number of Members | 4 |
| Number of Surfaces | 55 |
| Number of Solids | 4 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 2 |
| Number of Result Combinations | 2 |
| Total Weight | 0.813 tons |
| Dimensions (Metric) | 0.660 x 0.600 x 1.400 m |
| Dimensions (Imperial) | 2.17 x 1.97 x 4.59 feet |
| Program Version | 5.23.01 |
