2024-03-09
026144

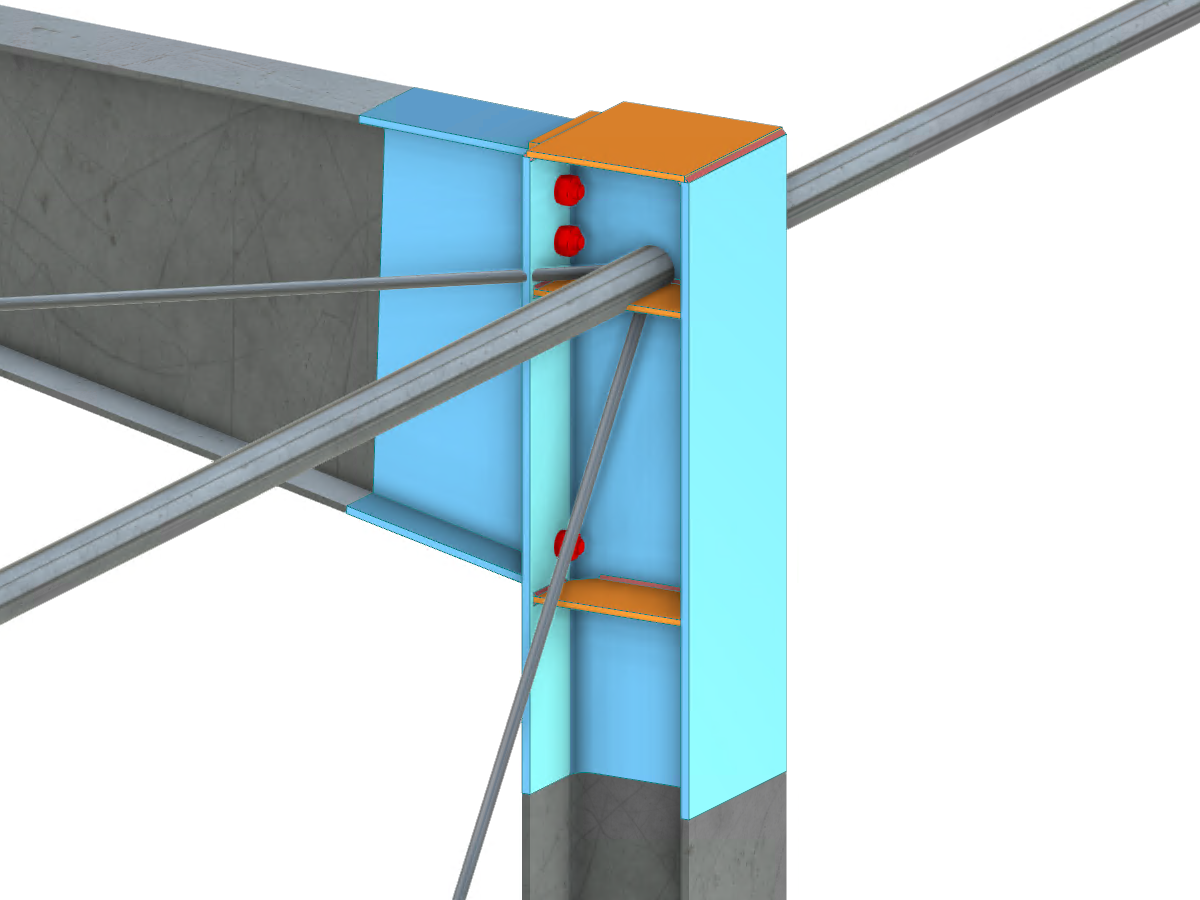

Detail of Steel Connection in Frame Structure
Detail of Steel Connection
3D Model
Specifications
| Number of Nodes | 71 |
| Number of Lines | 116 |
| Number of Members | 116 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 11 |
| Number of Load Combinations | 32 |
| Number of Result Combinations | 0 |
| Total Weight | 17.474 tons |
| Dimensions (Metric) | 23,000 x 14,419 x 50,000 m |
| Dimensions (Imperial) | 75.46 x 47.31 x 164.04 feet |
2024-05-30
027477

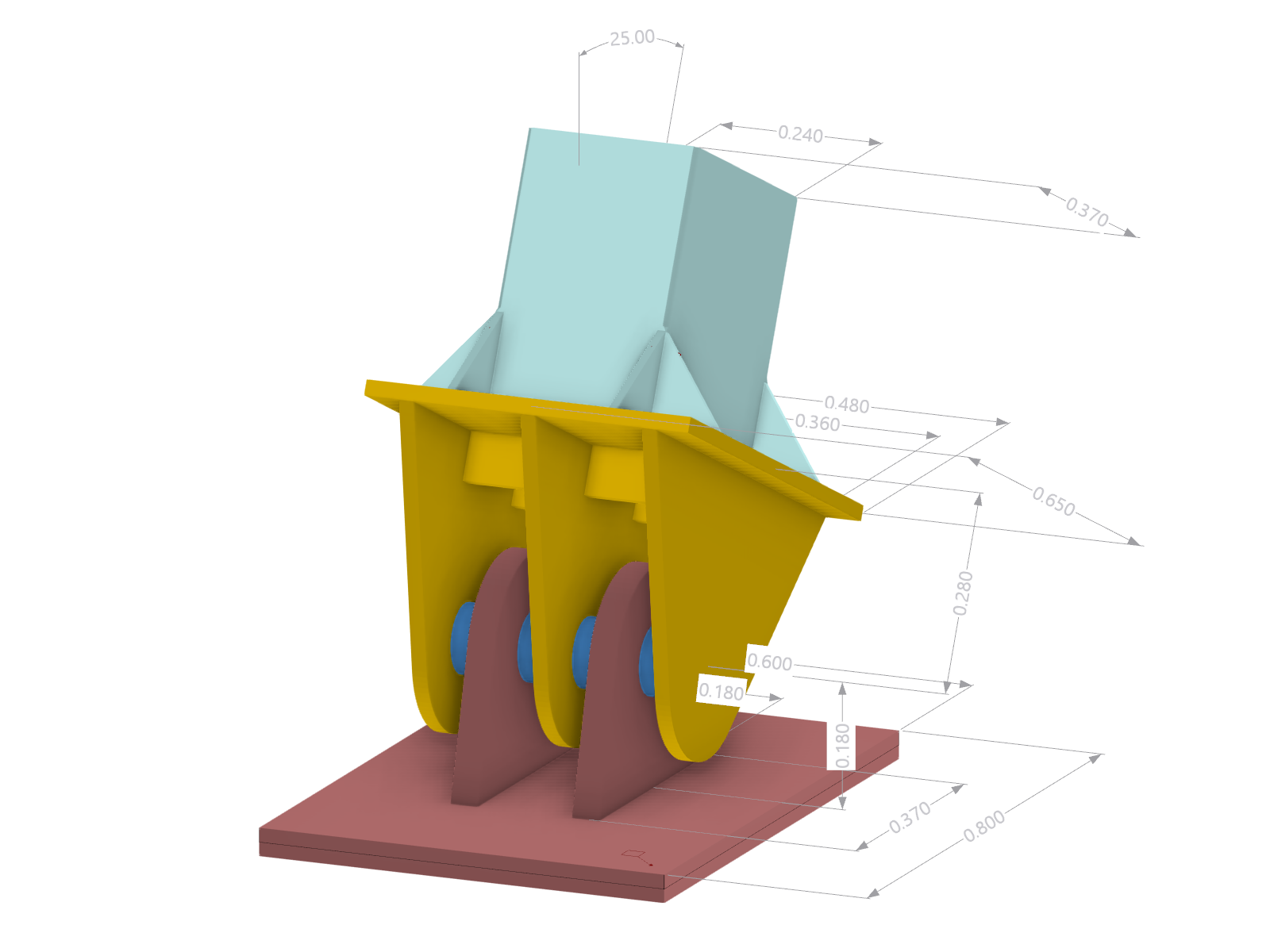

Hinged Support of Steel Column with Dimensions
Hinged Support of Steel Column, Dimensions
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 98 |
| Number of Lines | 106 |
| Number of Members | 1 |
| Number of Surfaces | 32 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.427 tons |
| Dimensions (Metric) | 0.855 x 0.874 x 0.600 m |
| Dimensions (Imperial) | 2.81 x 2.87 x 1.97 feet |
2024-05-30
027468

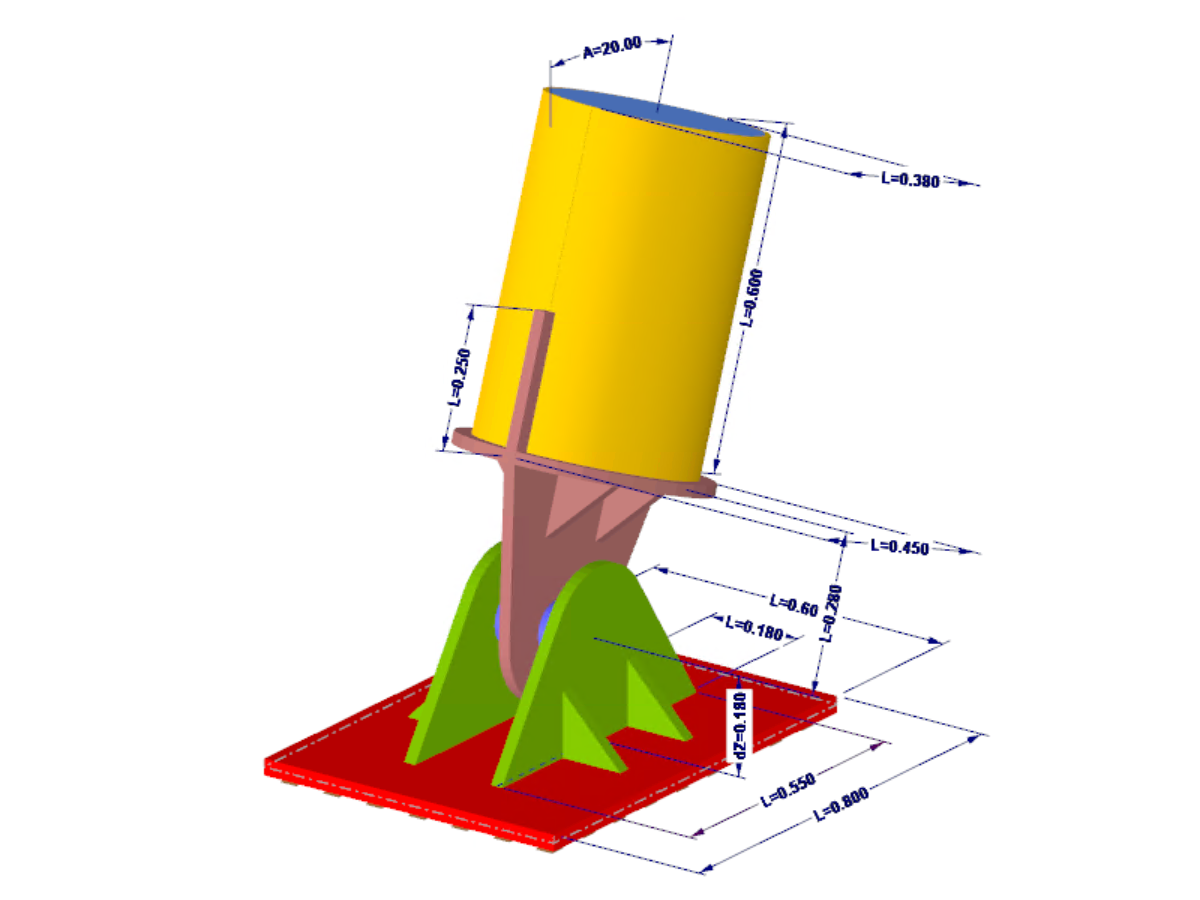

Hinged Support of Steel Column with Dimensions
Hinged Support of Steel Column
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 68 |
| Number of Lines | 54 |
| Number of Members | 1 |
| Number of Surfaces | 20 |
| Total Weight | 0.299 tons |
| Dimensions (Metric) | 1.037 x 0.692 x 1.229 m |
| Dimensions (Imperial) | 3.4 x 2.27 x 4.03 feet |
| Program Version | 5.26.02 |
2024-05-30
027470
Tension on Steel Column Support
Hinged Support of Steel Column, Tension
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 68 |
| Number of Lines | 54 |
| Number of Members | 1 |
| Number of Surfaces | 20 |
| Total Weight | 0.299 tons |
| Dimensions (Metric) | 1.037 x 0.692 x 1.229 m |
| Dimensions (Imperial) | 3.4 x 2.27 x 4.03 feet |
| Program Version | 5.26.02 |
2024-03-09
027498

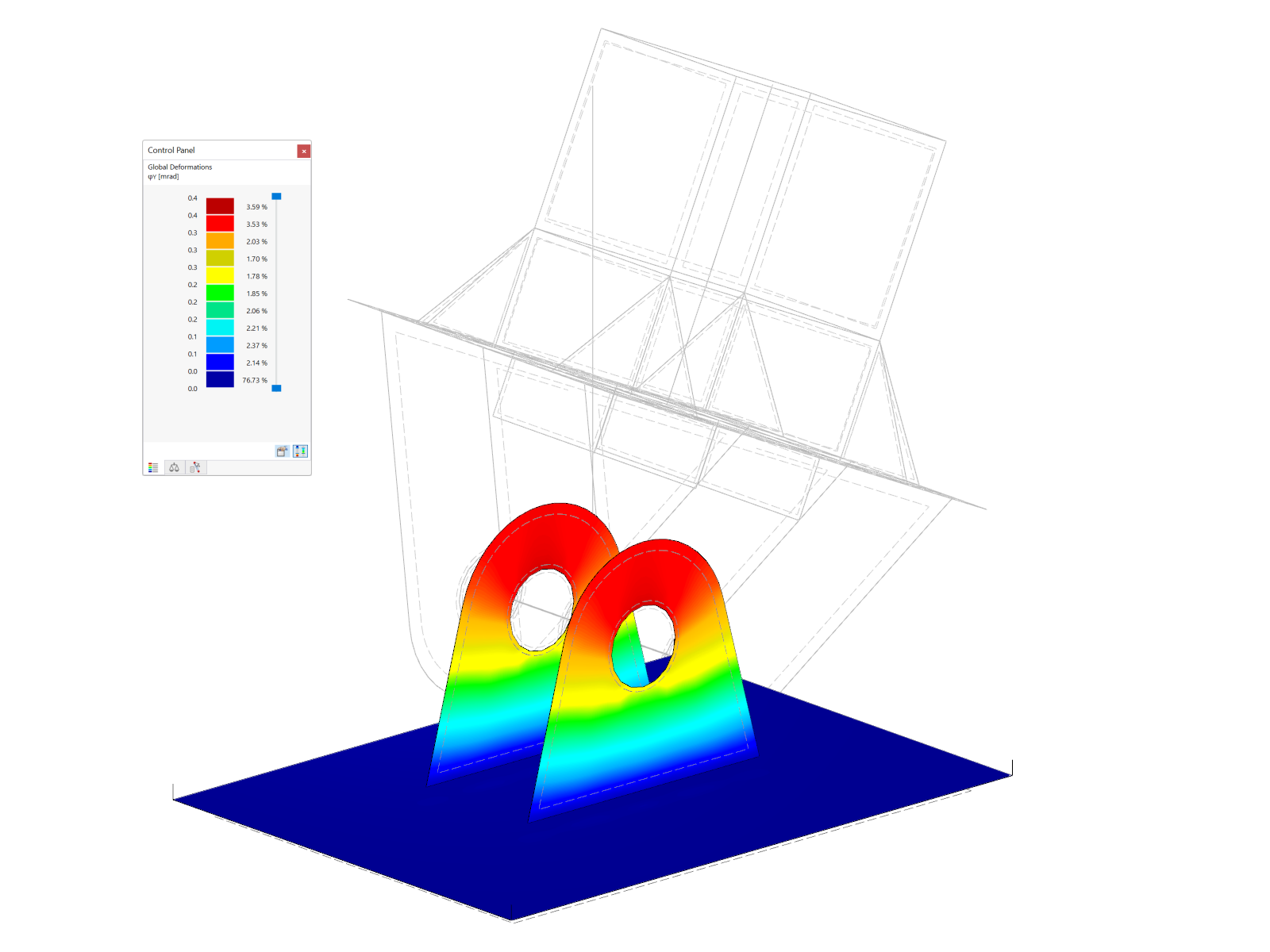

Stress in Joint of Steel Column Support
Stress in Joint of Steel Support
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 98 |
| Number of Lines | 106 |
| Number of Members | 1 |
| Number of Surfaces | 32 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.427 tons |
| Dimensions (Metric) | 0.855 x 0.874 x 0.600 m |
| Dimensions (Imperial) | 2.81 x 2.87 x 1.97 feet |
