2024-03-09
026185

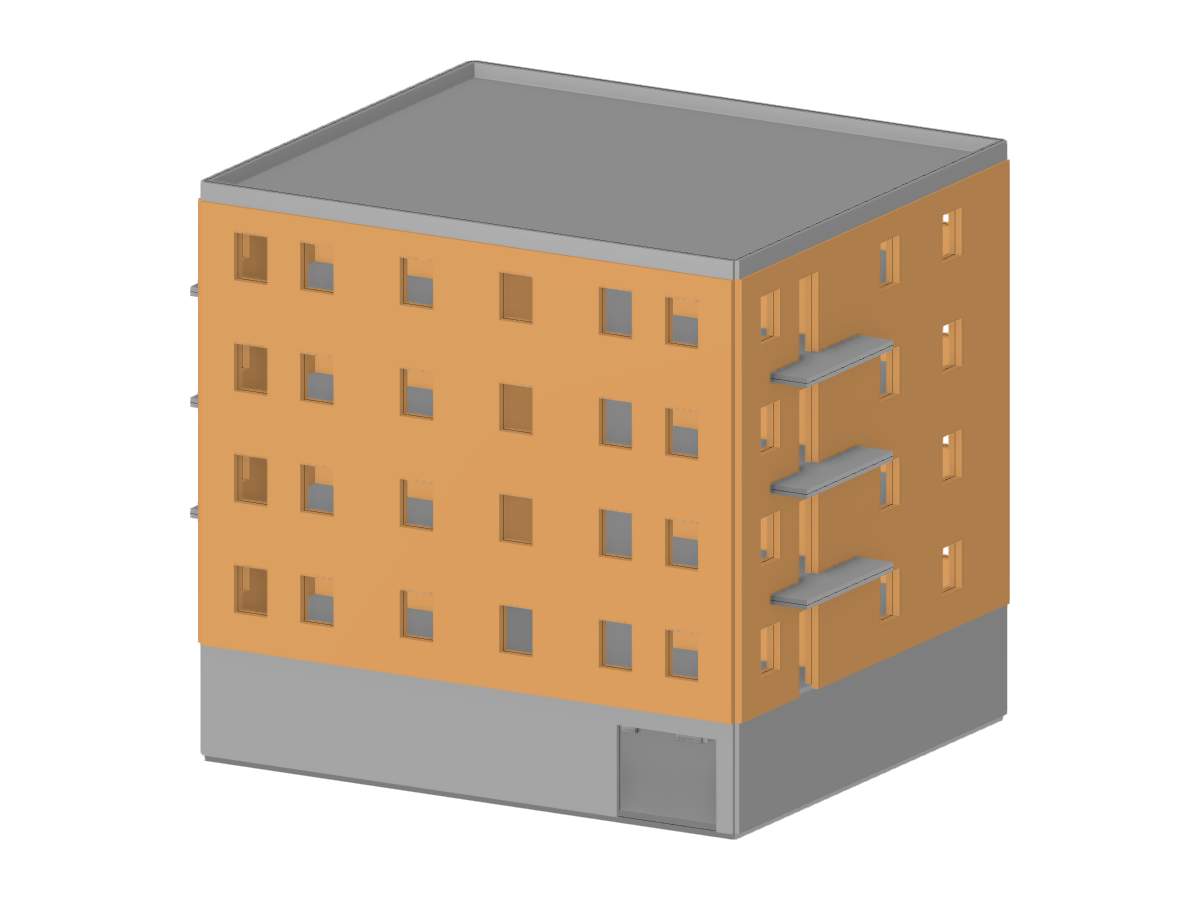

Masonry Building
Used in
3D Model
Specifications
| Number of Nodes | 501 |
| Number of Lines | 646 |
| Number of Members | 77 |
| Number of Surfaces | 103 |
| Number of Solids | 0 |
| Number of Load Cases | 5 |
| Number of Load Combinations | 32 |
| Number of Result Combinations | 0 |
| Total Weight | 1412.109 tons |
| Dimensions (Metric) | 18.600 x 15.500 x 14.000 m |
| Dimensions (Imperial) | 61.02 x 50.85 x 45.93 feet |
2024-03-09
025608

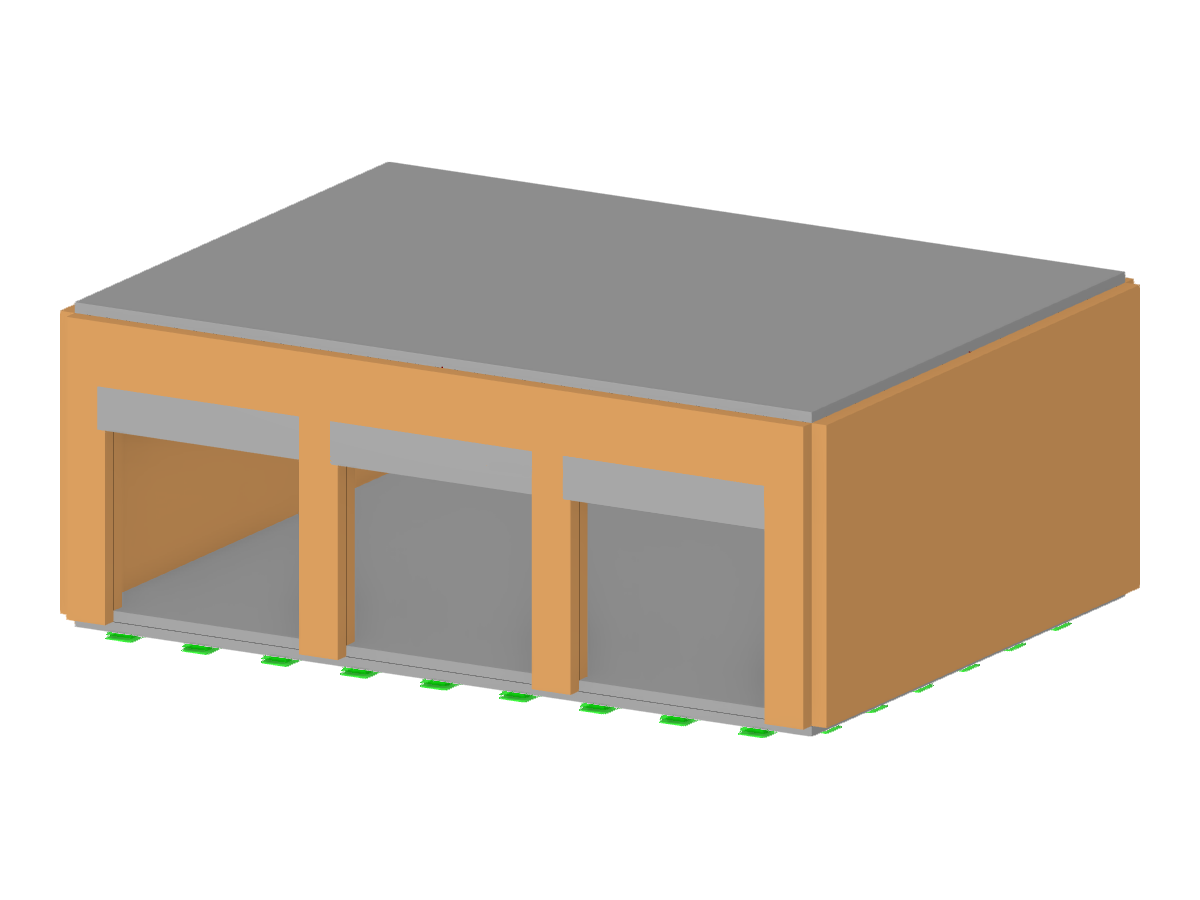

Garage
Used in
3D Model
Specifications
| Number of Nodes | 41 |
| Number of Lines | 49 |
| Number of Members | 12 |
| Number of Surfaces | 6 |
| Number of Solids | 0 |
| Number of Load Cases | 2 |
| Number of Load Combinations | 4 |
| Number of Result Combinations | 0 |
| Total Weight | 113.211 tons |
| Dimensions (Metric) | 9.500 x 3.500 x 7.000 m |
| Dimensions (Imperial) | 31.17 x 11.48 x 22.97 feet |
2024-03-09
025012

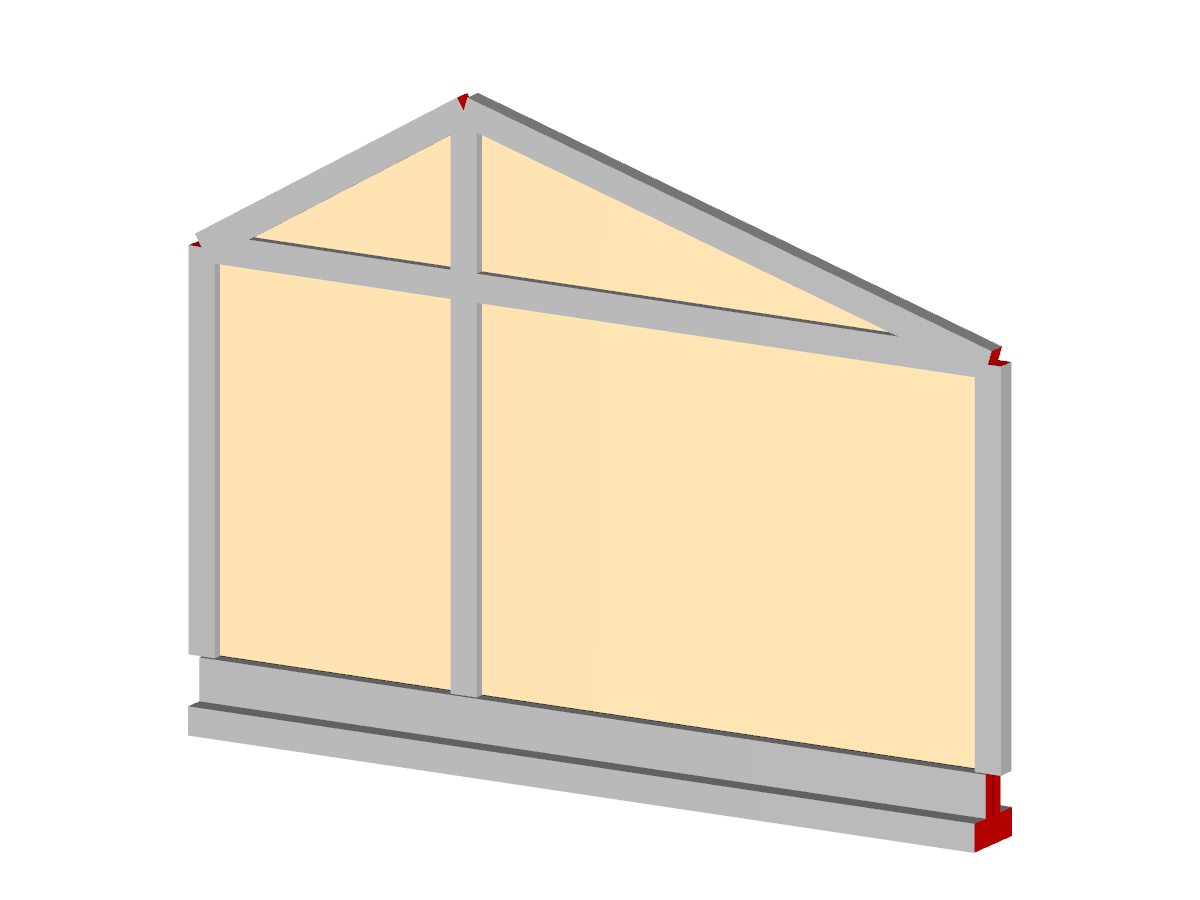

Sloped Masonry Wall
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 7 |
| Number of Lines | 9 |
| Number of Members | 9 |
| Number of Surfaces | 3 |
| Total Weight | 6.325 tons |
| Dimensions (Metric) | 6.000 x 0.000 x 4.306 m |
| Dimensions (Imperial) | 19.69 x 0 x 14.13 feet |
| Program Version | 5.26.02 |
2024-03-09
025010

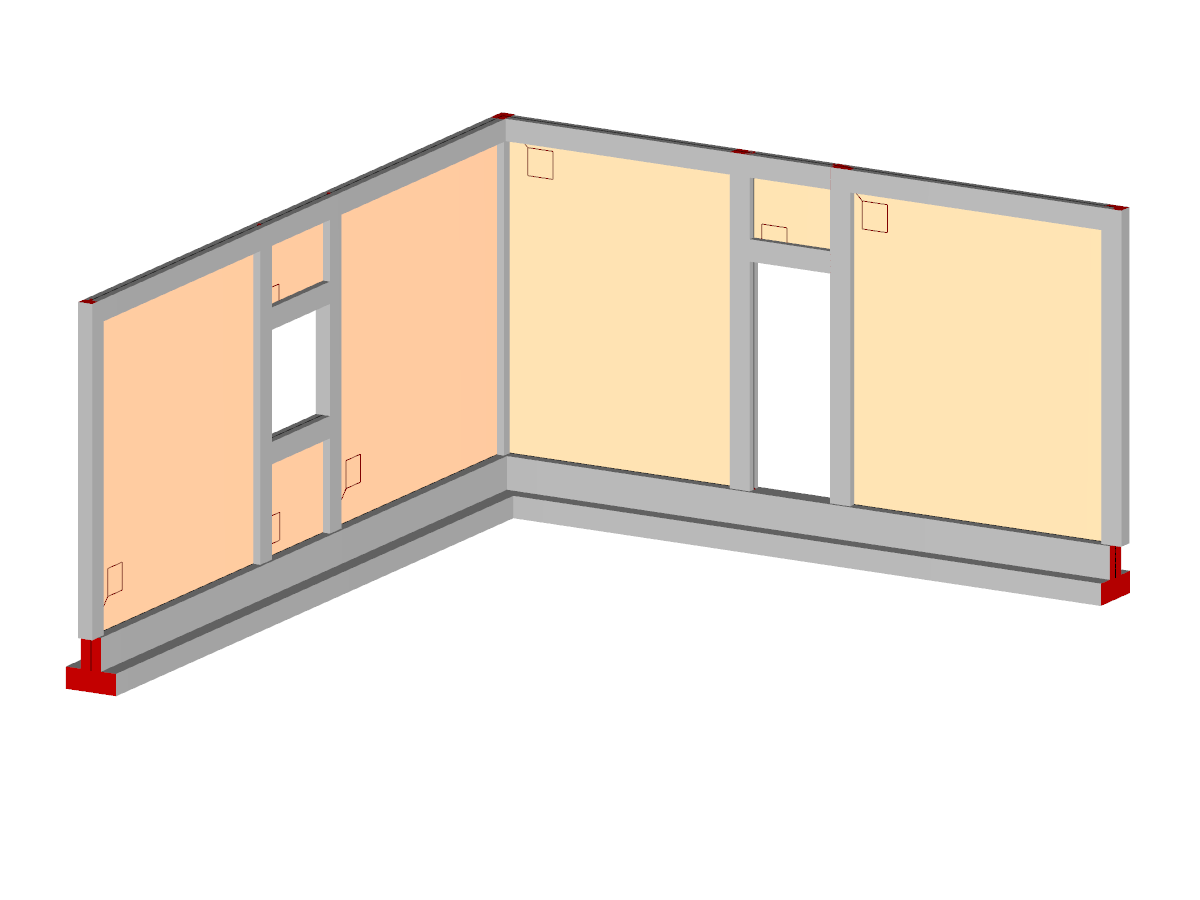

Variable Masonry Angle Wall with Openings
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 20 |
| Number of Lines | 28 |
| Number of Members | 22 |
| Number of Surfaces | 7 |
| Total Weight | 12.167 tons |
| Dimensions (Metric) | 6.100 x 7.100 x 3.306 m |
| Dimensions (Imperial) | 20.01 x 23.29 x 10.85 feet |
| Program Version | 5.26.02 |
