Defining Nodal Supports and Effective Lengths

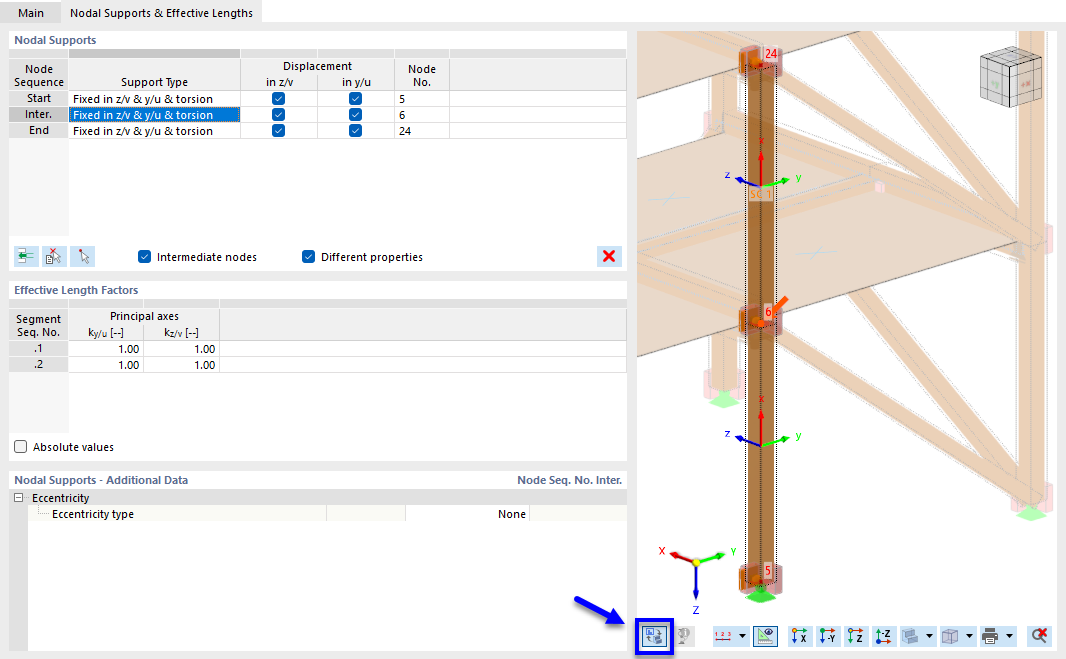

Defining nodal supports and effective lengths

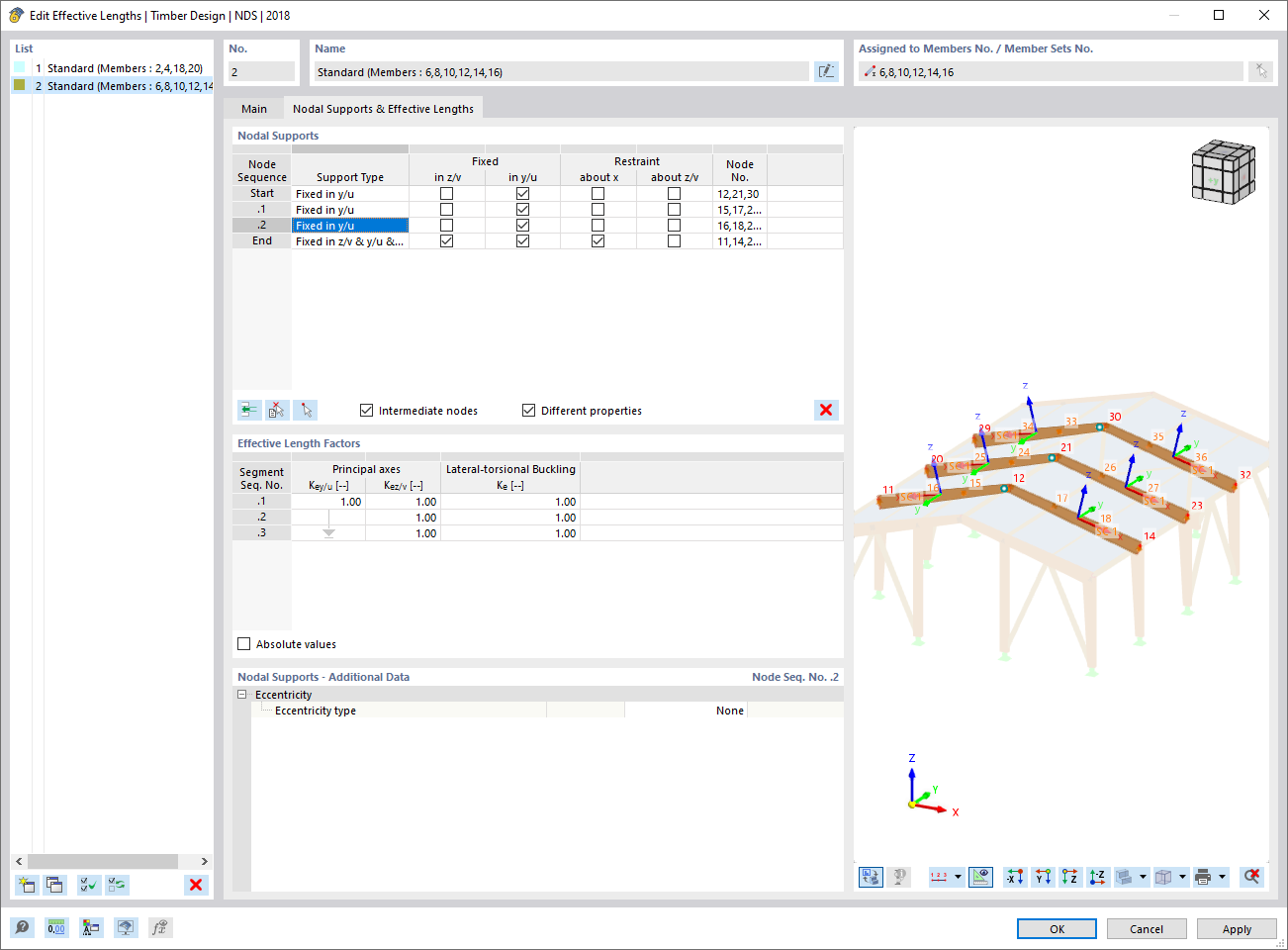

The image shows a model for defining nodal supports and effective lengths for timber design. Intermediate joints are visible in the model and allow for a detailed analysis of the structural elements. The display helps to understand the correct sizing and placement of joints in a timber structure.
