Stress Results Graphically and in Table
Graphical and tabular stress analysis in RFEM 6 add-on

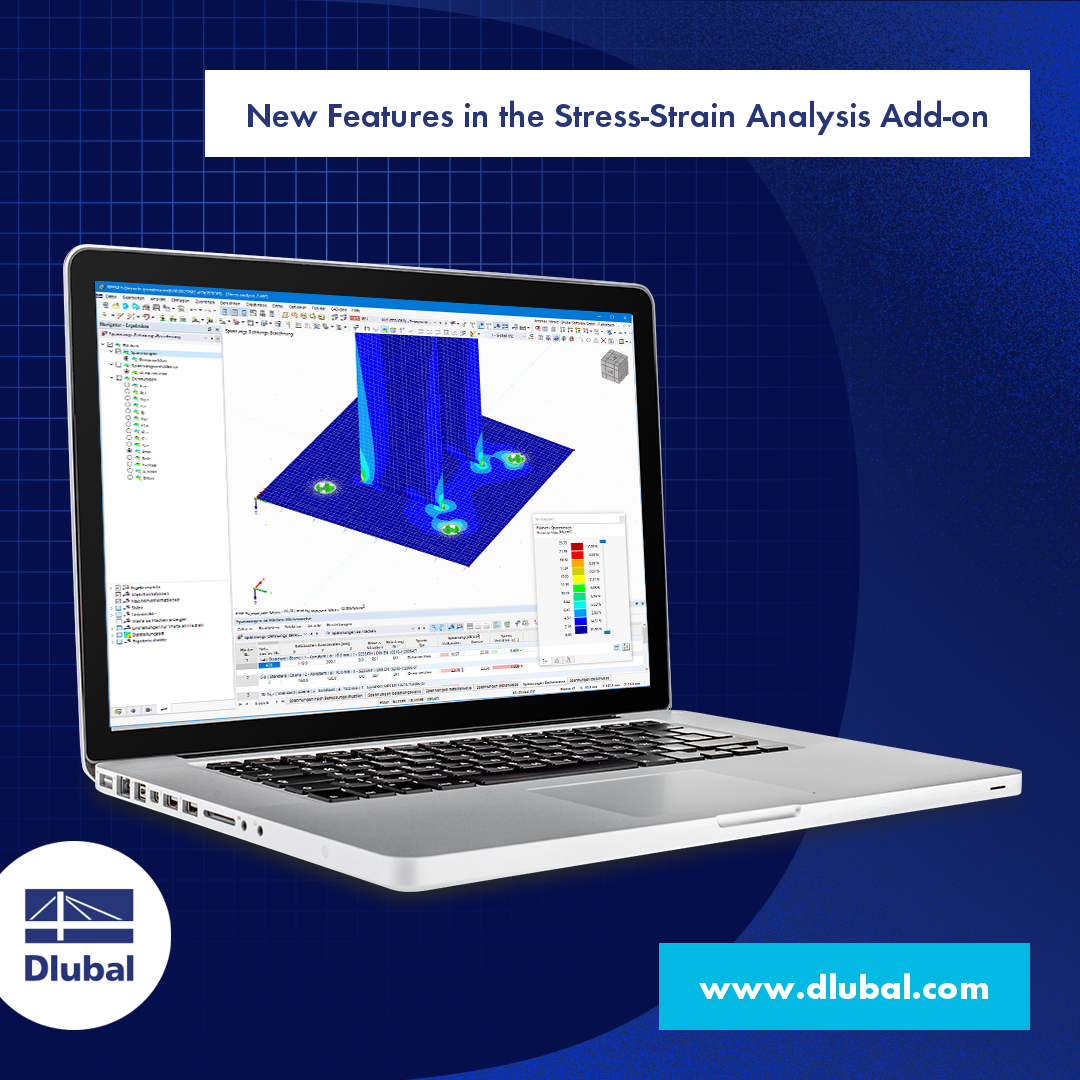

The display shows the graphical and tabular stress calculation in the RFEM 6 add-on "Stress-Strain Analysis". Existing stresses are compared with limit stresses. The analysis includes maximum stresses of solids, surfaces or surface sets, and members or member sets. An automatic optimization of cross-sections and thicknesses is integrated.
3D Model
Specifications
| Number of Nodes | 26 |
| Number of Lines | 29 |
| Number of Members | 0 |
| Number of Surfaces | 7 |
| Number of Solids | 0 |
| Number of Load Cases | 2 |
| Number of Load Combinations | 2 |
| Number of Result Combinations | 0 |
| Total Weight | 0.098 tons |
| Dimensions (Metric) | 0,500 x 1,000 x 0,500 m |
| Dimensions (Imperial) | 1.64 x 3.28 x 1.64 feet |
