2024-03-09
026654

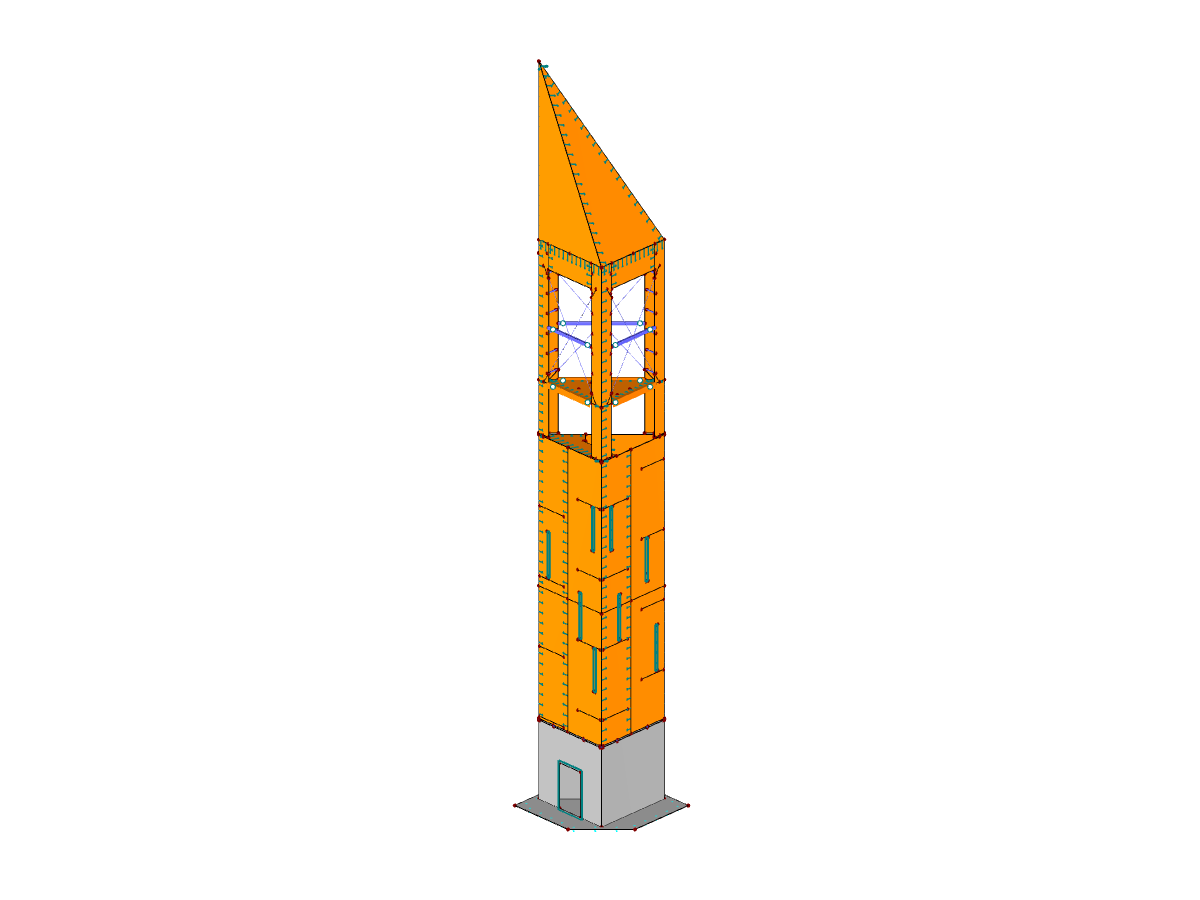

Tower Model in RFEM (© ingwh)
Used in
3D Model
Specifications
| Number of Nodes | 339 |
| Number of Lines | 396 |
| Number of Members | 60 |
| Number of Surfaces | 43 |
| Number of Load Cases | 4 |
| Number of Load Combinations | 9 |
| Number of Result Combinations | 2 |
| Total Weight | 138.376 tons |
| Dimensions (Metric) | 7.067 x 8.160 x 35.931 m |
| Dimensions (Imperial) | 23.19 x 26.77 x 117.88 feet |
| Program Version | 5.27.01 |
2024-05-30
026648
Tower Model (Left) and First Mode Shape (Right) in RFEM (© ingwh)
3D Model
Specifications
| Number of Nodes | 339 |
| Number of Lines | 396 |
| Number of Members | 60 |
| Number of Surfaces | 43 |
| Number of Load Cases | 4 |
| Number of Load Combinations | 9 |
| Number of Result Combinations | 2 |
| Total Weight | 138.376 tons |
| Dimensions (Metric) | 7.067 x 8.160 x 35.931 m |
| Dimensions (Imperial) | 23.19 x 26.77 x 117.88 feet |
| Program Version | 5.27.01 |
