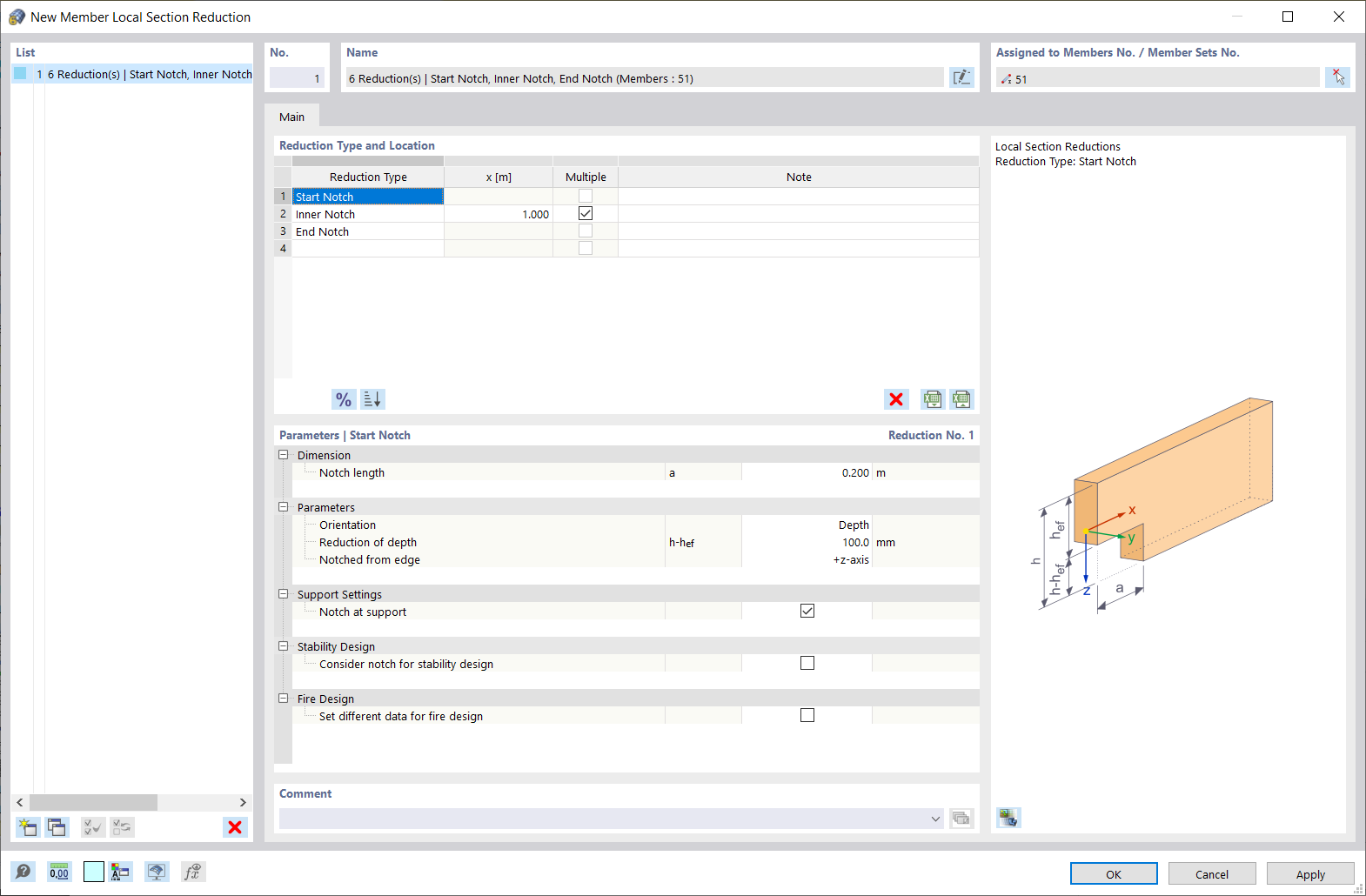

The dialog box shows the option to define member section reductions in order to account for a girder notch in the timber design.
The dialog box shows the option to define member section reductions in order to account for a girder notch in the timber design.
2021-12-15
026861

Dialog Box "New Local Reduction of Member Cross-Section"

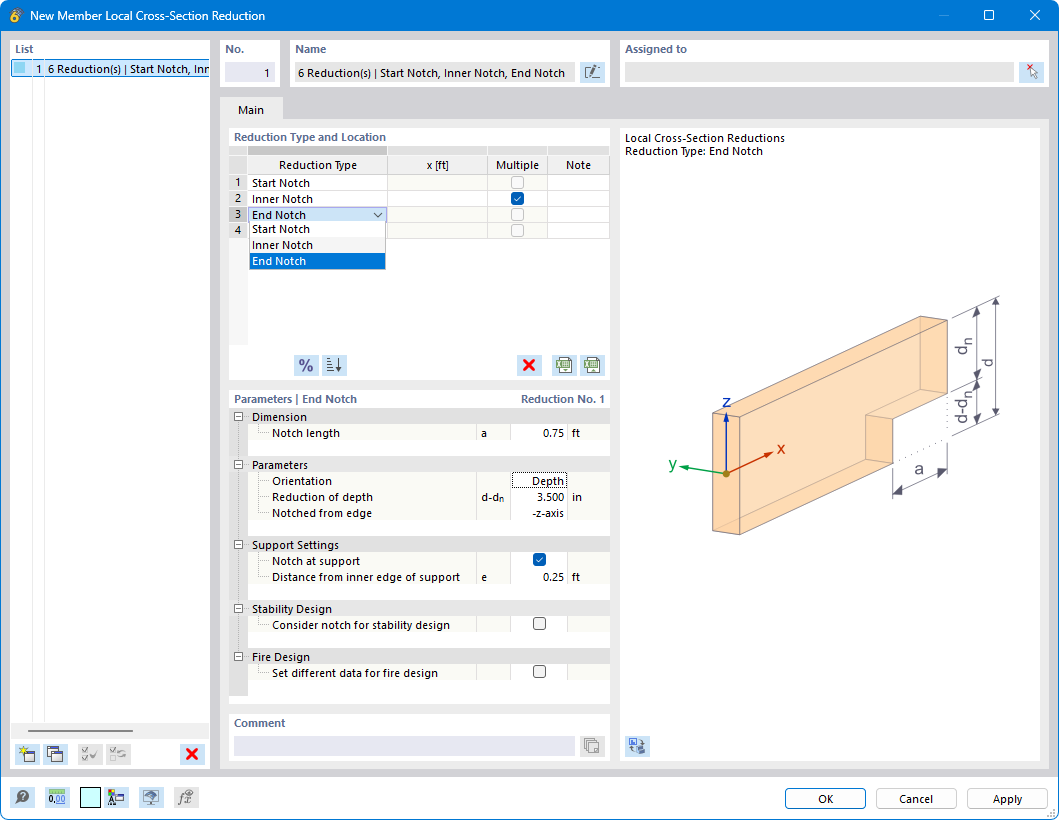

The dialog box shows the option to define member section reductions in order to account for a girder notch in the timber design.
The "New Local Member Section Reduction" dialog box allows for the consideration of notches at the start, inside or end areas of a beam. This feature is essential for the correct calculation of the load-bearing capacity of affected timber beams. The stiffness remains unchanged by this reduction. Users can specifically adjust the parameters of the reduction in the dialog box displayed.
