2024-03-09
027165

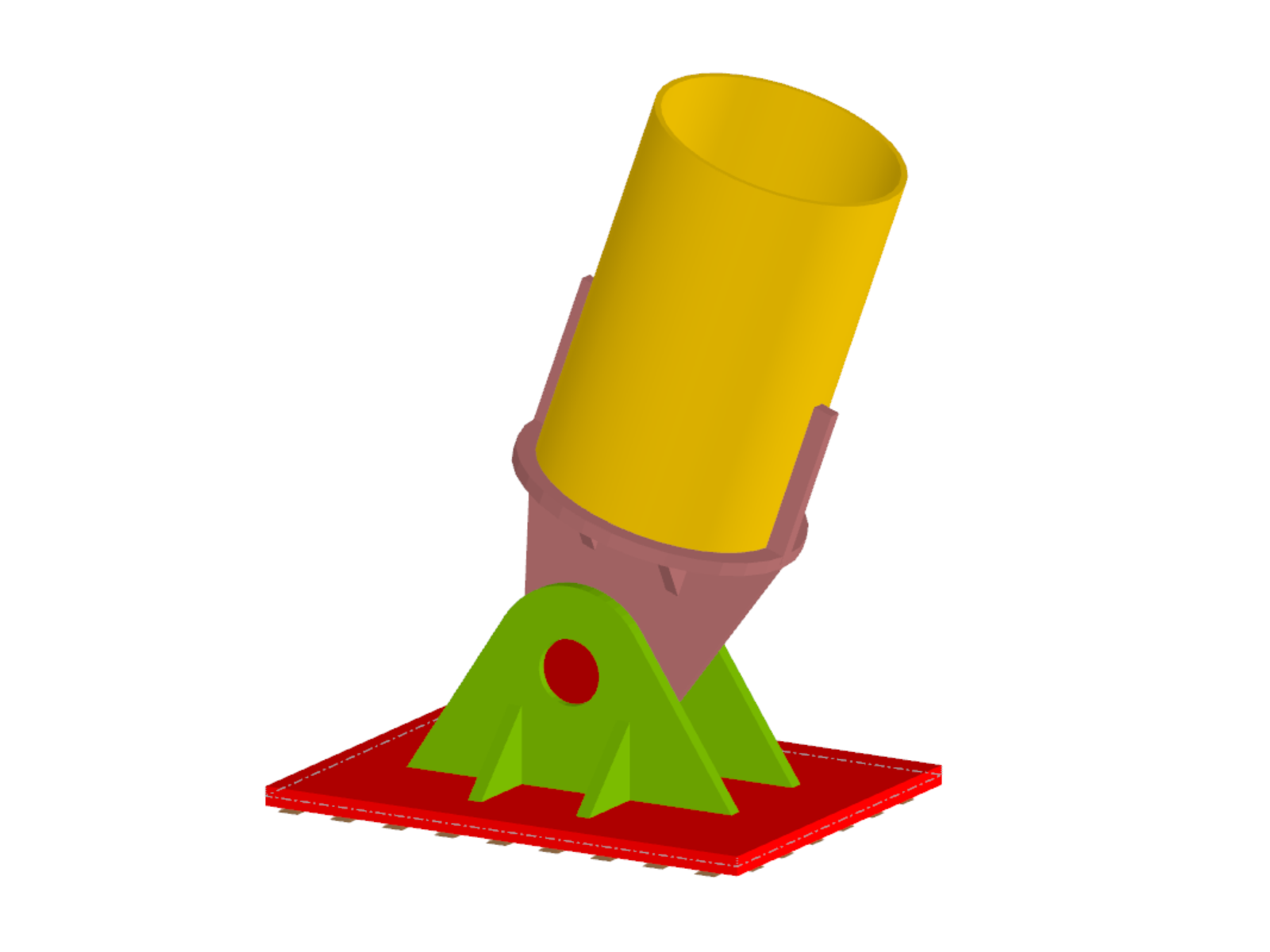

Hinged Support of Steel Column
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 68 |
| Number of Lines | 54 |
| Number of Members | 1 |
| Number of Surfaces | 20 |
| Total Weight | 0.299 tons |
| Dimensions (Metric) | 1.037 x 0.692 x 1.229 m |
| Dimensions (Imperial) | 3.4 x 2.27 x 4.03 feet |
| Program Version | 5.26.02 |
2024-05-30
027468
Hinged Support of Steel Column with Dimensions
Hinged Support of Steel Column
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 68 |
| Number of Lines | 54 |
| Number of Members | 1 |
| Number of Surfaces | 20 |
| Total Weight | 0.299 tons |
| Dimensions (Metric) | 1.037 x 0.692 x 1.229 m |
| Dimensions (Imperial) | 3.4 x 2.27 x 4.03 feet |
| Program Version | 5.26.02 |
2024-05-30
027470
Tension on Steel Column Support
Hinged Support of Steel Column, Tension
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 68 |
| Number of Lines | 54 |
| Number of Members | 1 |
| Number of Surfaces | 20 |
| Total Weight | 0.299 tons |
| Dimensions (Metric) | 1.037 x 0.692 x 1.229 m |
| Dimensions (Imperial) | 3.4 x 2.27 x 4.03 feet |
| Program Version | 5.26.02 |
