2024-03-09
027825

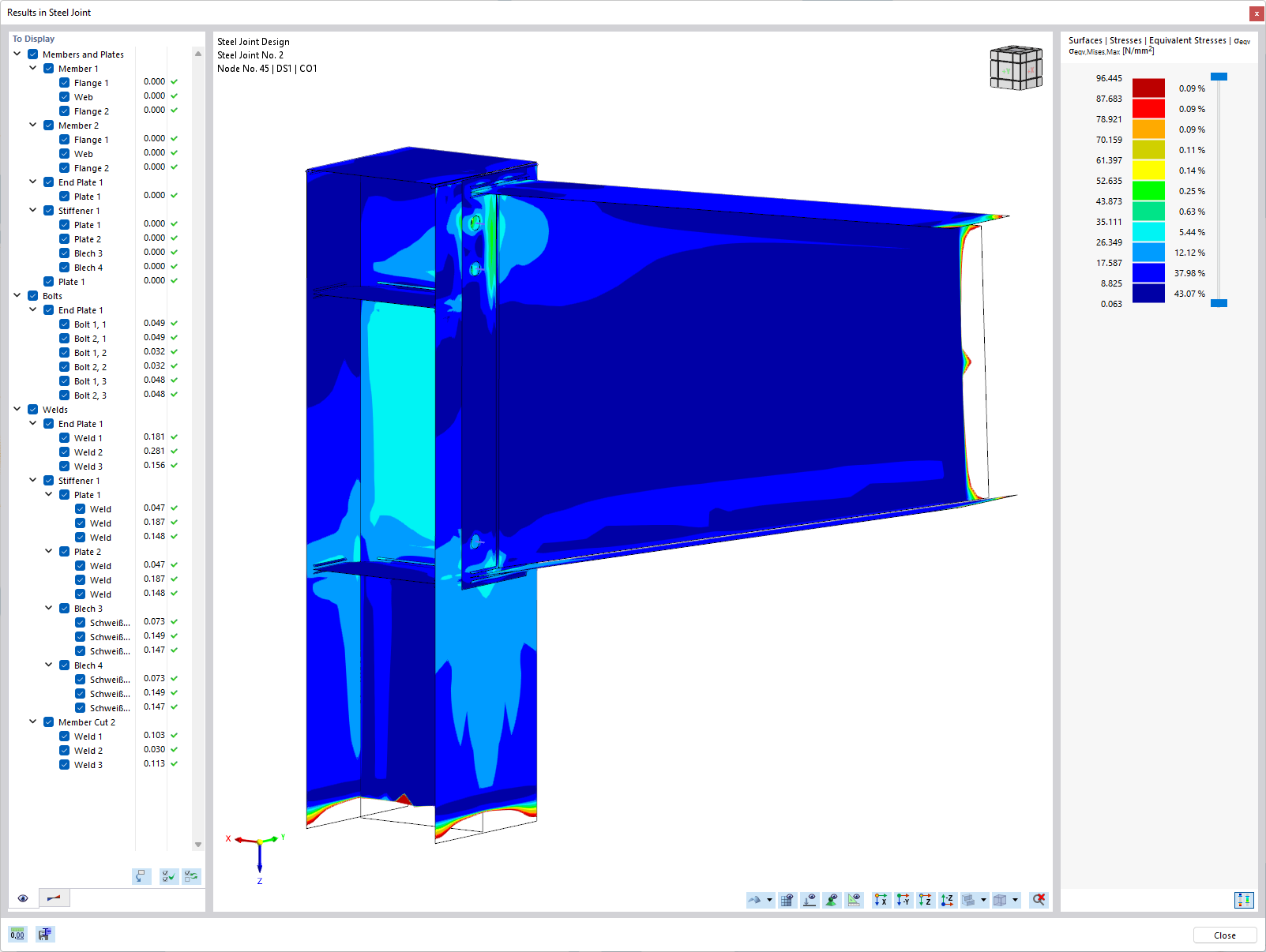

Results in Steel Joint from RFEM 6
Results in Steel Joint
3D Model
Specifications
| Number of Nodes | 71 |
| Number of Lines | 116 |
| Number of Members | 116 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 11 |
| Number of Load Combinations | 32 |
| Number of Result Combinations | 0 |
| Total Weight | 17.474 tons |
| Dimensions (Metric) | 23.000 x 14.419 x 50.000 m |
| Dimensions (Imperial) | 75.46 x 47.31 x 164.04 feet |
2024-05-30
027865

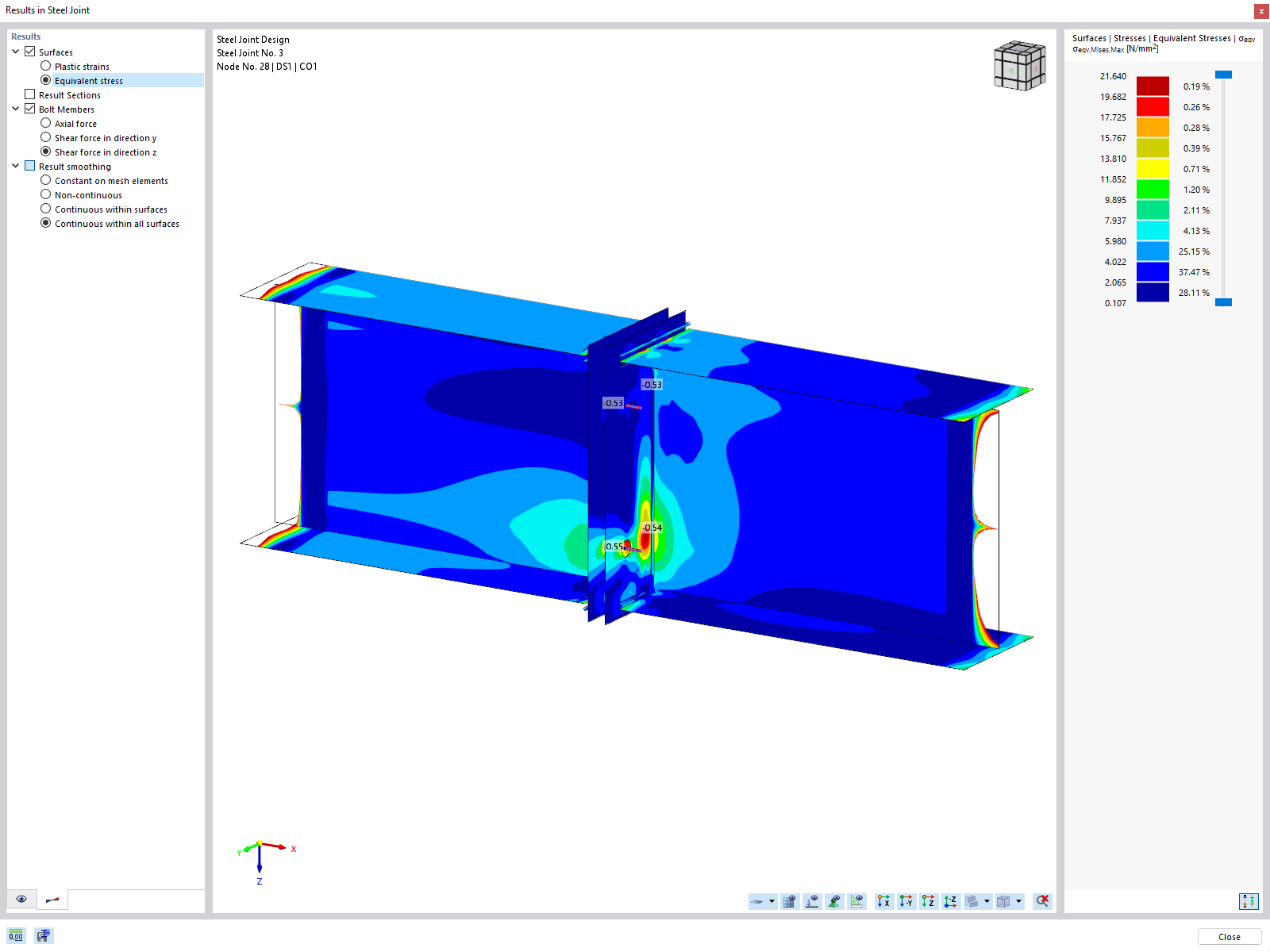

Results in Steel Joint
Steel Connection, Results
3D Model
No Download Possible
Customer Project / View Only
More About 3D Model
Specifications
| Number of Nodes | 77 |
| Number of Lines | 129 |
| Number of Members | 129 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 5 |
| Number of Load Combinations | 4 |
| Number of Result Combinations | 1 |
| Total Weight | 8.470 tons |
| Dimensions (Metric) | 12.000 x 8.000 x 8.000 m |
| Dimensions (Imperial) | 39.37 x 26.25 x 26.25 feet |
