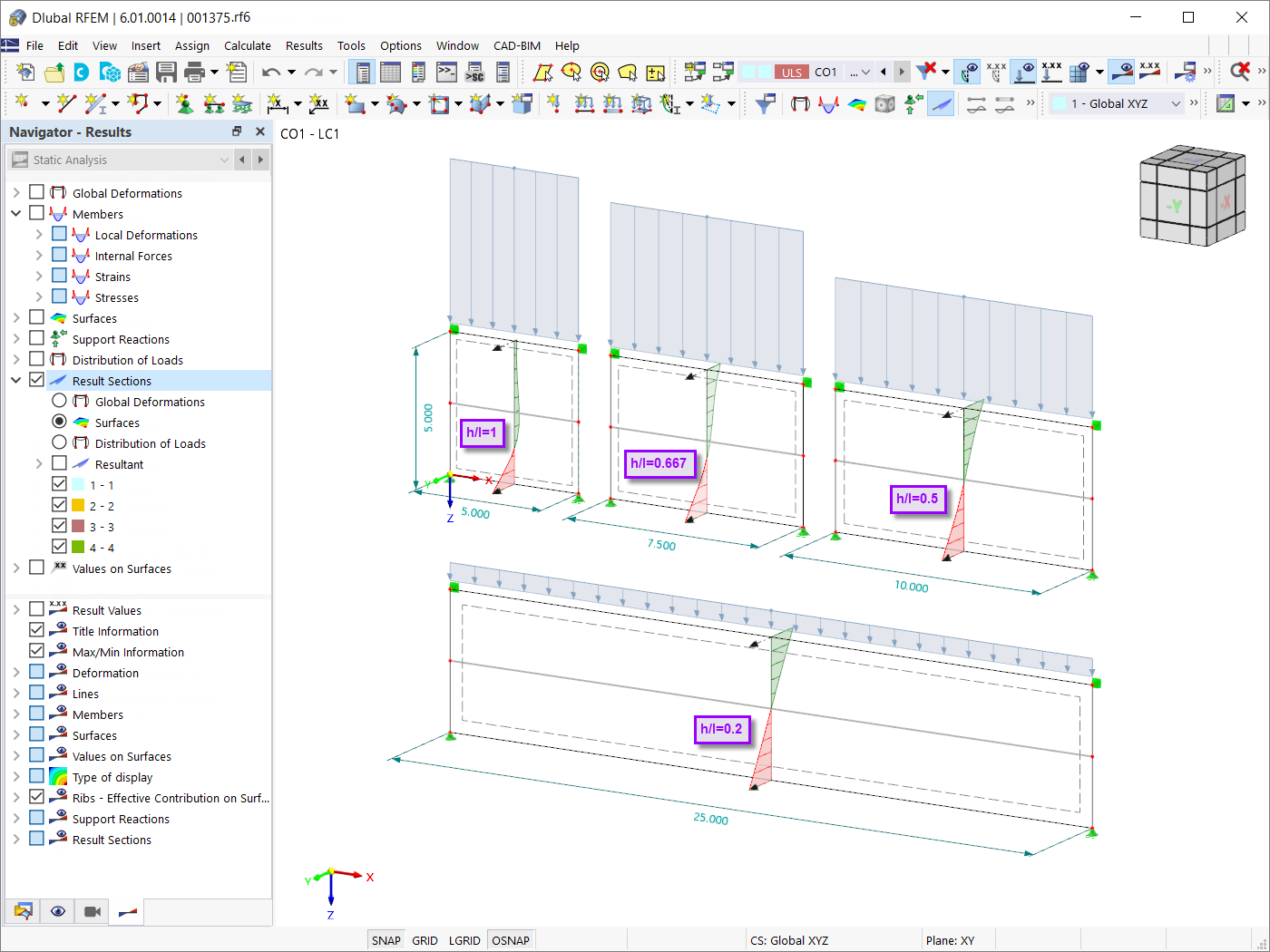

Axial Force Distribution (nx)
Used in
3D Model
Specifications
| Number of Nodes | 24 |
| Number of Lines | 20 |
| Number of Members | 4 |
| Number of Surfaces | 4 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 1 |
| Number of Result Combinations | 0 |
| Total Weight | 356.250 tons |
| Dimensions (Metric) | 25.000 x 12.000 x 0.000 m |
| Dimensions (Imperial) | 82.02 x 39.37 x 0 feet |
