2024-03-09
028484
The model is created using the Steel Joints add-on in RFEM 6 and analyzed for joint buckling.
Steel Joint with Haunch for Connecting Beam to Column
3D Model
Specifications
| Number of Nodes | 1111 |
| Number of Lines | 897 |
| Number of Members | 544 |
| Number of Surfaces | 70 |
| Number of Solids | 0 |
| Number of Load Cases | 3 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.111 tons |
| Dimensions (Metric) | 1.183 x 0.792 x 0.240 m |
| Dimensions (Imperial) | 3.88 x 2.6 x 0.79 feet |
2024-03-09
028474

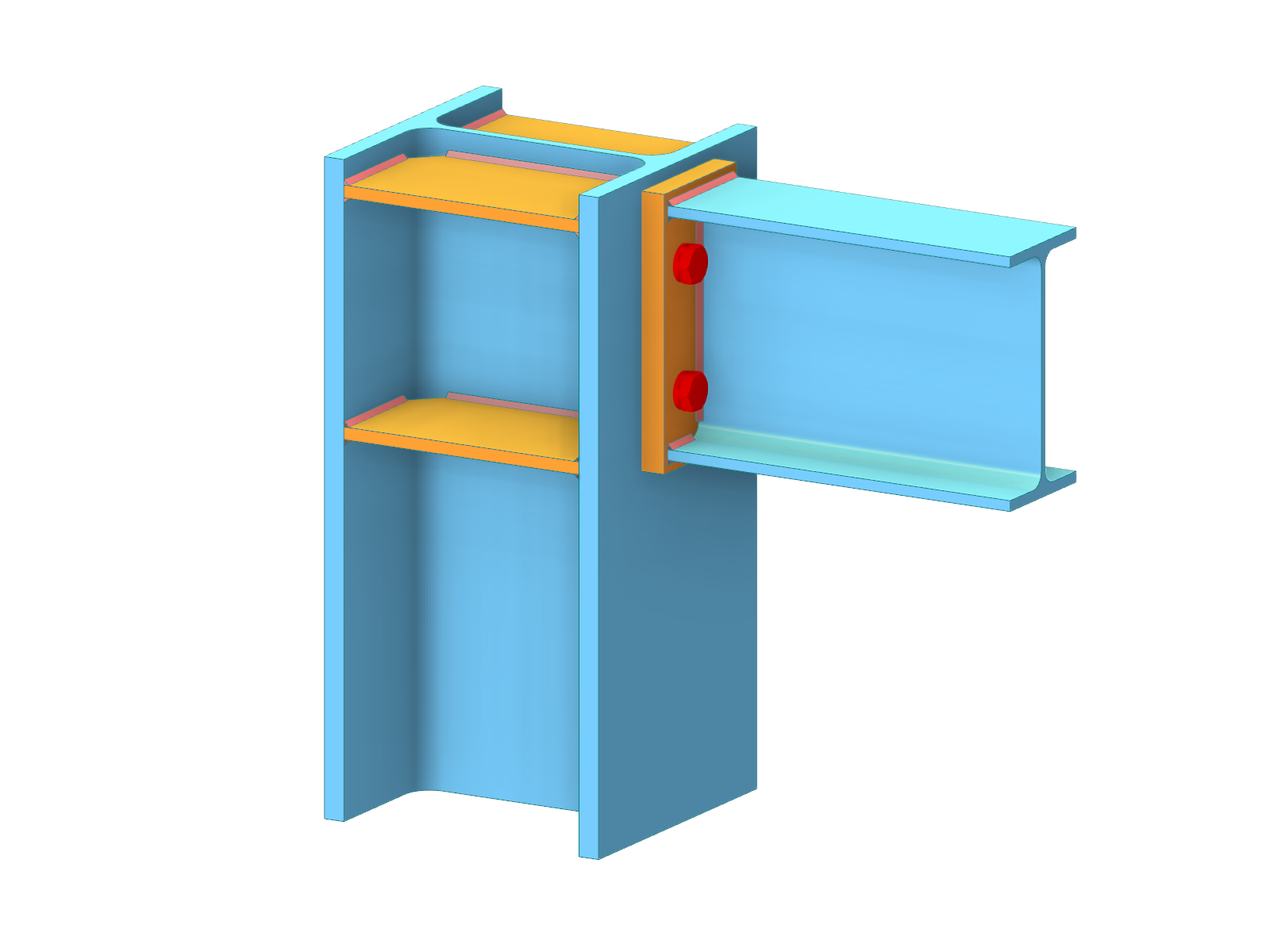

Connection Model of Beam to Column
Steel Connection of Beam to Column
3D Model
Specifications
| Number of Nodes | 656 |
| Number of Lines | 552 |
| Number of Members | 272 |
| Number of Surfaces | 53 |
| Number of Solids | 0 |
| Number of Load Cases | 3 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.066 tons |
| Dimensions (Metric) | 0.552 x 0.580 x 0.240 m |
| Dimensions (Imperial) | 1.81 x 1.9 x 0.79 feet |
2024-03-09
028396

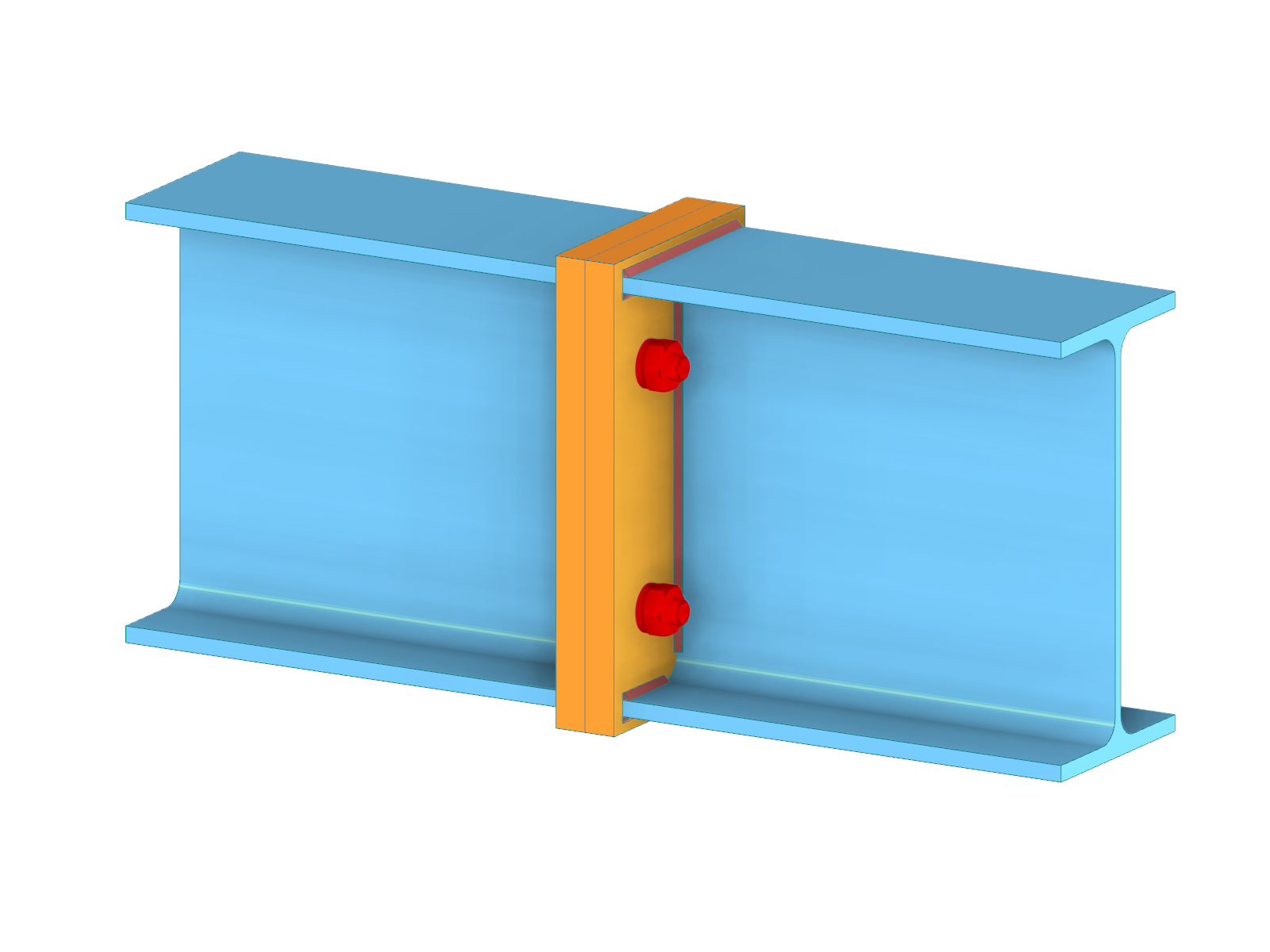

Connection Model of 2 Members using Plate-to-Plate Type
Steel Connection of 2 Members
Used in
3D Model
Specifications
| Number of Nodes | 554 |
| Number of Lines | 436 |
| Number of Members | 272 |
| Number of Surfaces | 34 |
| Number of Solids | 0 |
| Number of Load Cases | 4 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.043 tons |
| Dimensions (Metric) | 0.850 x 0.290 x 0.155 m |
| Dimensions (Imperial) | 2.79 x 0.95 x 0.51 feet |
2024-05-21
027972
Results in Steel Joint, Animation
Results in Steel Joint
3D Model
No Download Possible
Customer Project / View Only
More About 3D Model
Specifications
| Number of Nodes | 77 |
| Number of Lines | 129 |
| Number of Members | 129 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 5 |
| Number of Load Combinations | 4 |
| Number of Result Combinations | 1 |
| Total Weight | 8.470 tons |
| Dimensions (Metric) | 12.000 x 8.000 x 8.000 m |
| Dimensions (Imperial) | 39.37 x 26.25 x 26.25 feet |
