Surface Stresses with Nonlinear Material
Analysis of surface stresses in a structural component with nonlinear material behavior.

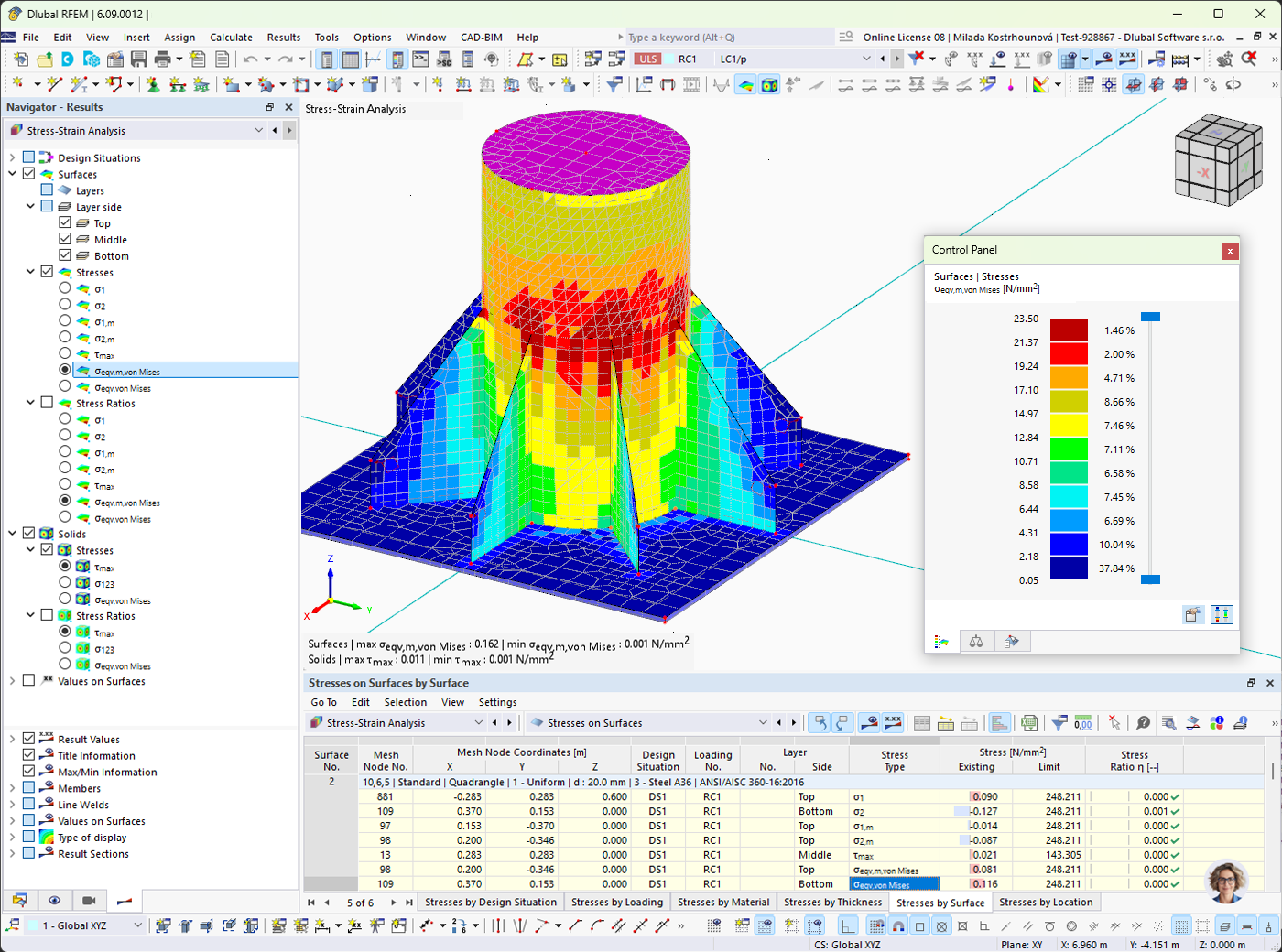

The image shows the distribution of stresses in a surface made of a nonlinear material. Areas with different stress intensities are recognizable, which are due to the material properties and the load distribution. The analysis takes into account the nonlinear response of the material to external influences. These insights are crucial for the optimization of load-bearing structures and the prevention of material failure.
3D Model
Specifications
| Number of Nodes | 26 |
| Number of Lines | 29 |
| Number of Members | 0 |
| Number of Surfaces | 7 |
| Number of Solids | 0 |
| Number of Load Cases | 2 |
| Number of Load Combinations | 2 |
| Number of Result Combinations | 0 |
| Total Weight | 0.098 tons |
| Dimensions (Metric) | 0,500 x 1,000 x 0,500 m |
| Dimensions (Imperial) | 1.64 x 3.28 x 1.64 feet |
2024-03-09
022907

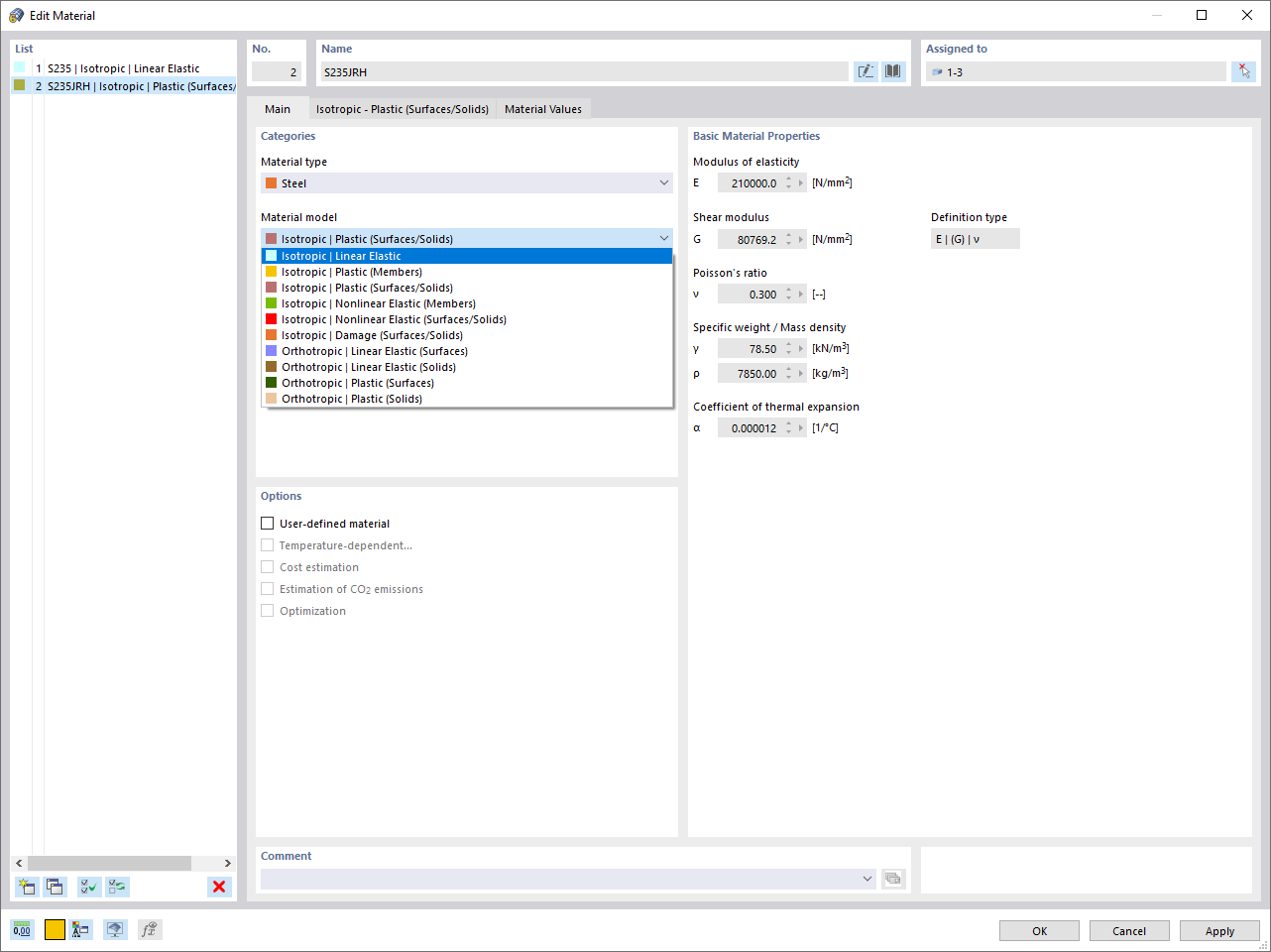

Available Material Models
2024-03-09
030211

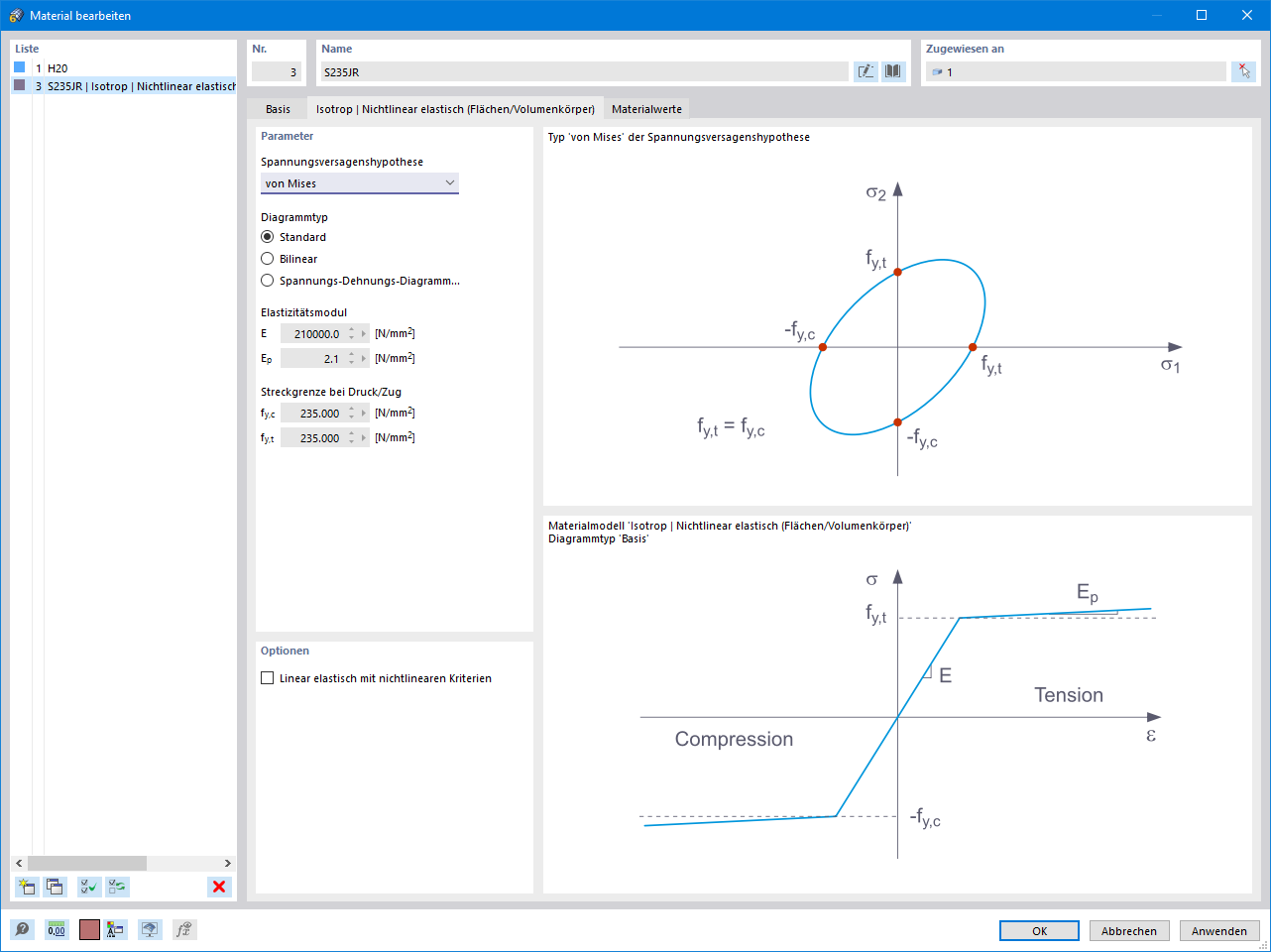

Isotropic Material Model | Nonlinear Elastic (Surfaces/Solids)
