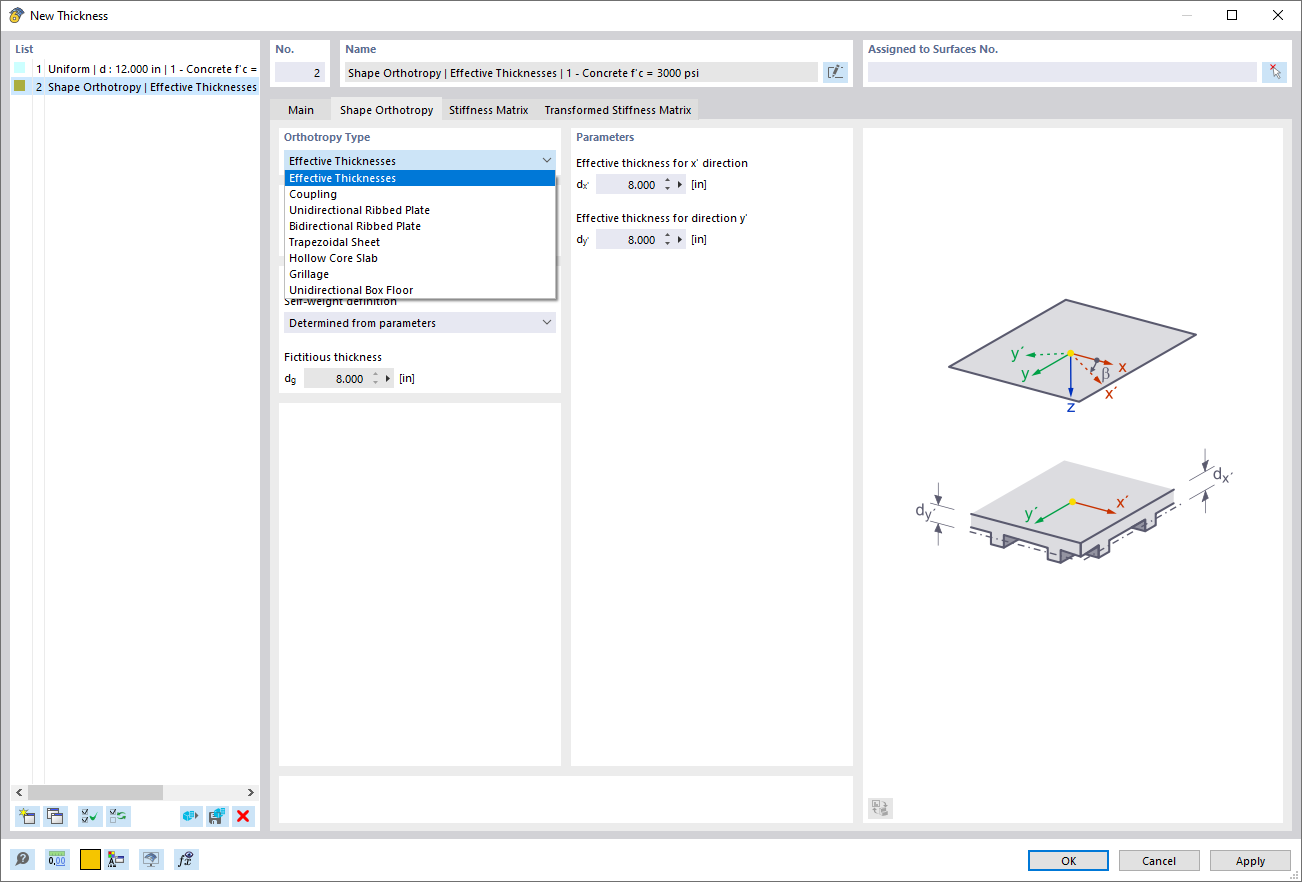

Dialog Box "New Thickness", Tab "Shape-Orthotropy"
Dialog Box 'New Thickness', Tab 'Shape Orthotropy'
The image shows detailed information on the definition of shape orthotropy and effective thickness in a structural engineering application dialog box. The control elements allow you to select a thickness type and enter the relevant parameters for the orthotropy of the structure. Input boxes and drop-down menus are visible for making precise adjustments.
