2022-04-21
031172

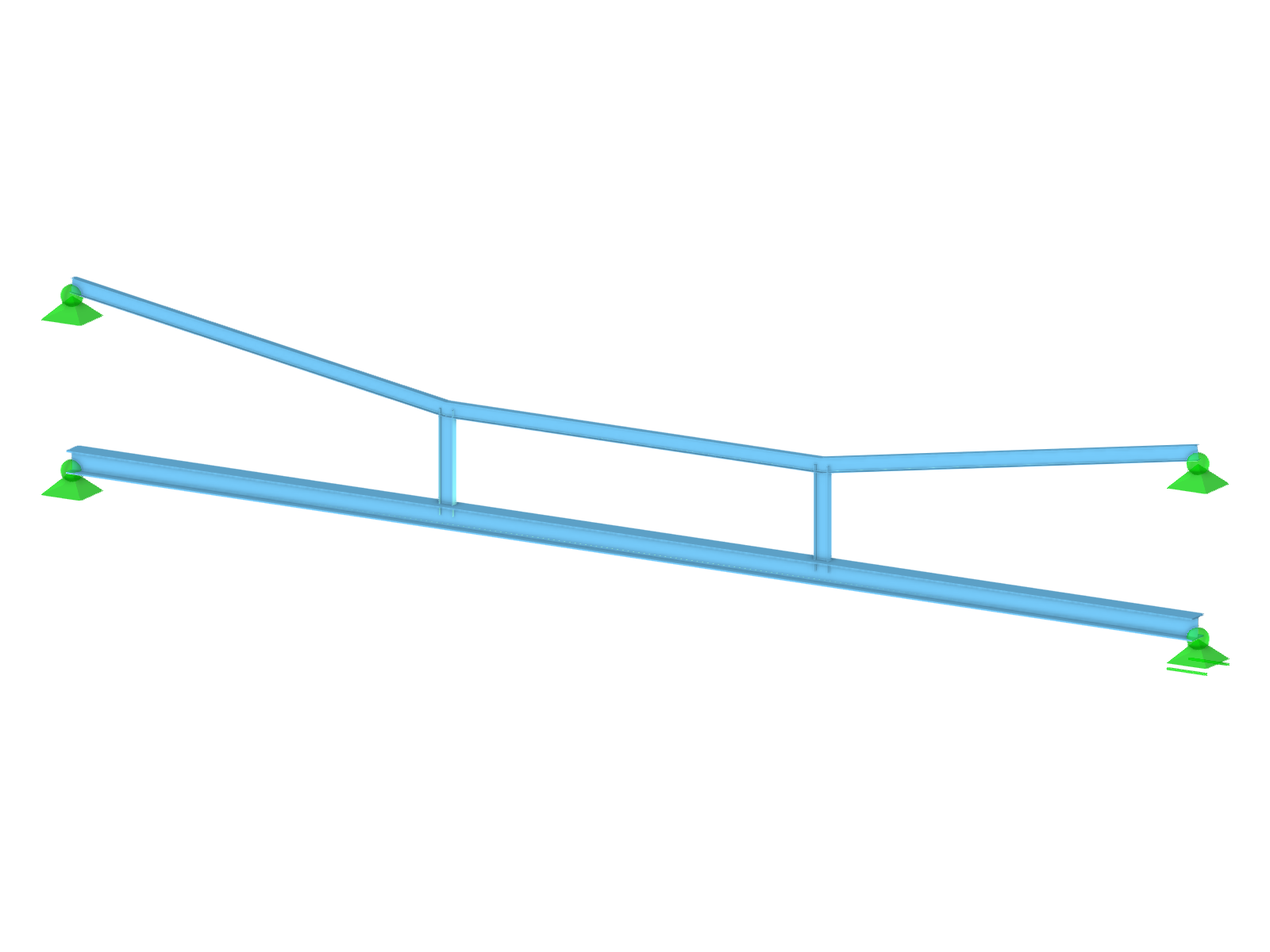

Spanned Steel Beam
Spanned Beam
Used in
3D Model
Specifications
| Number of Nodes | 8 |
| Number of Lines | 6 |
| Number of Members | 6 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 2.366 tons |
| Dimensions (Metric) | 16.500 x 2.300 x 0.000 m |
| Dimensions (Imperial) | 54.13 x 7.55 x 0 feet |
2022-04-21
031173

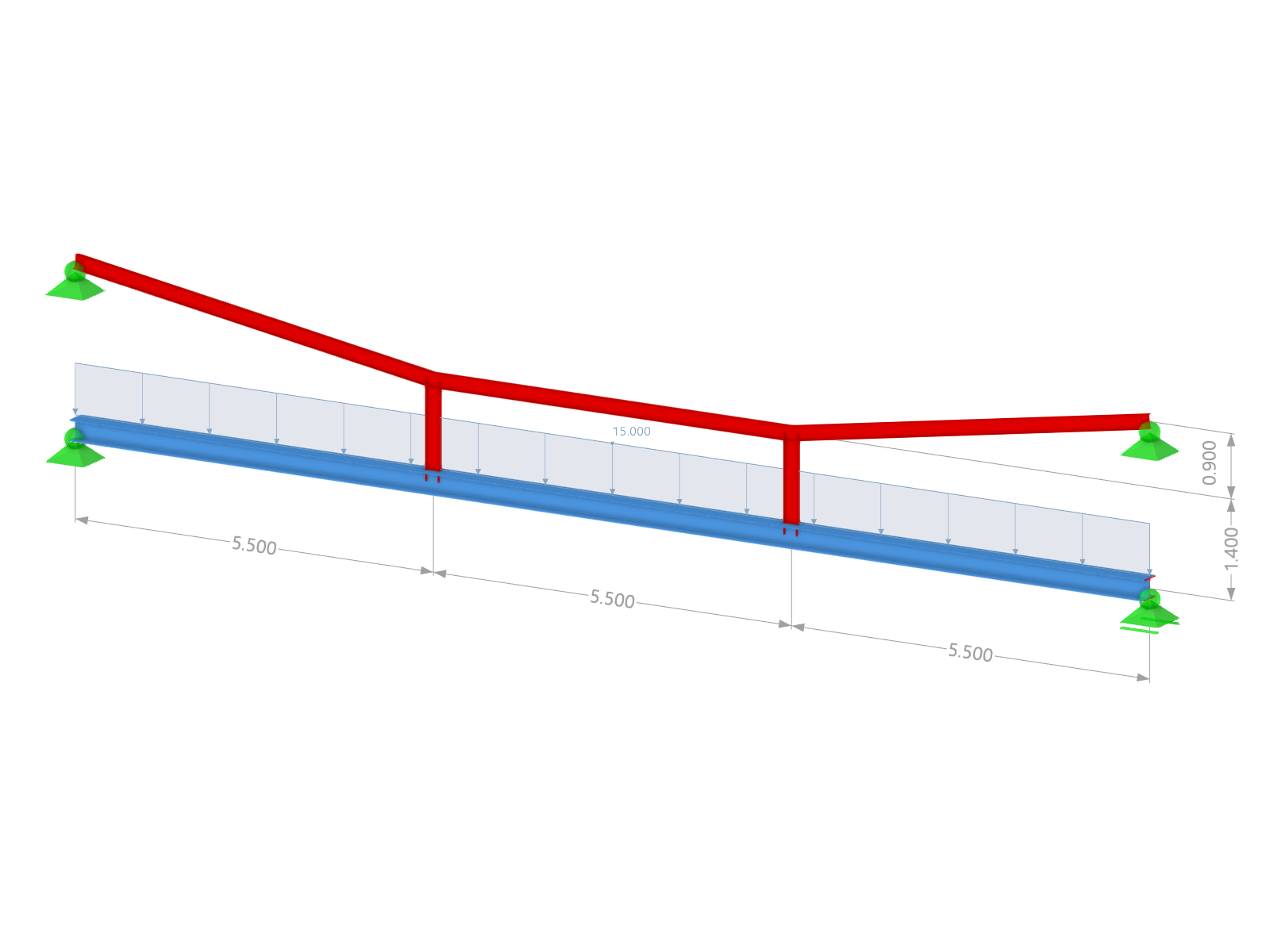

Spanned Steel Beam | Dimensions and Loads
Spanned Beam | Dimensions and Loads
3D Model
Specifications
| Number of Nodes | 8 |
| Number of Lines | 6 |
| Number of Members | 6 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 2.366 tons |
| Dimensions (Metric) | 16.500 x 2.300 x 0.000 m |
| Dimensions (Imperial) | 54.13 x 7.55 x 0 feet |
