2022-05-09
031599

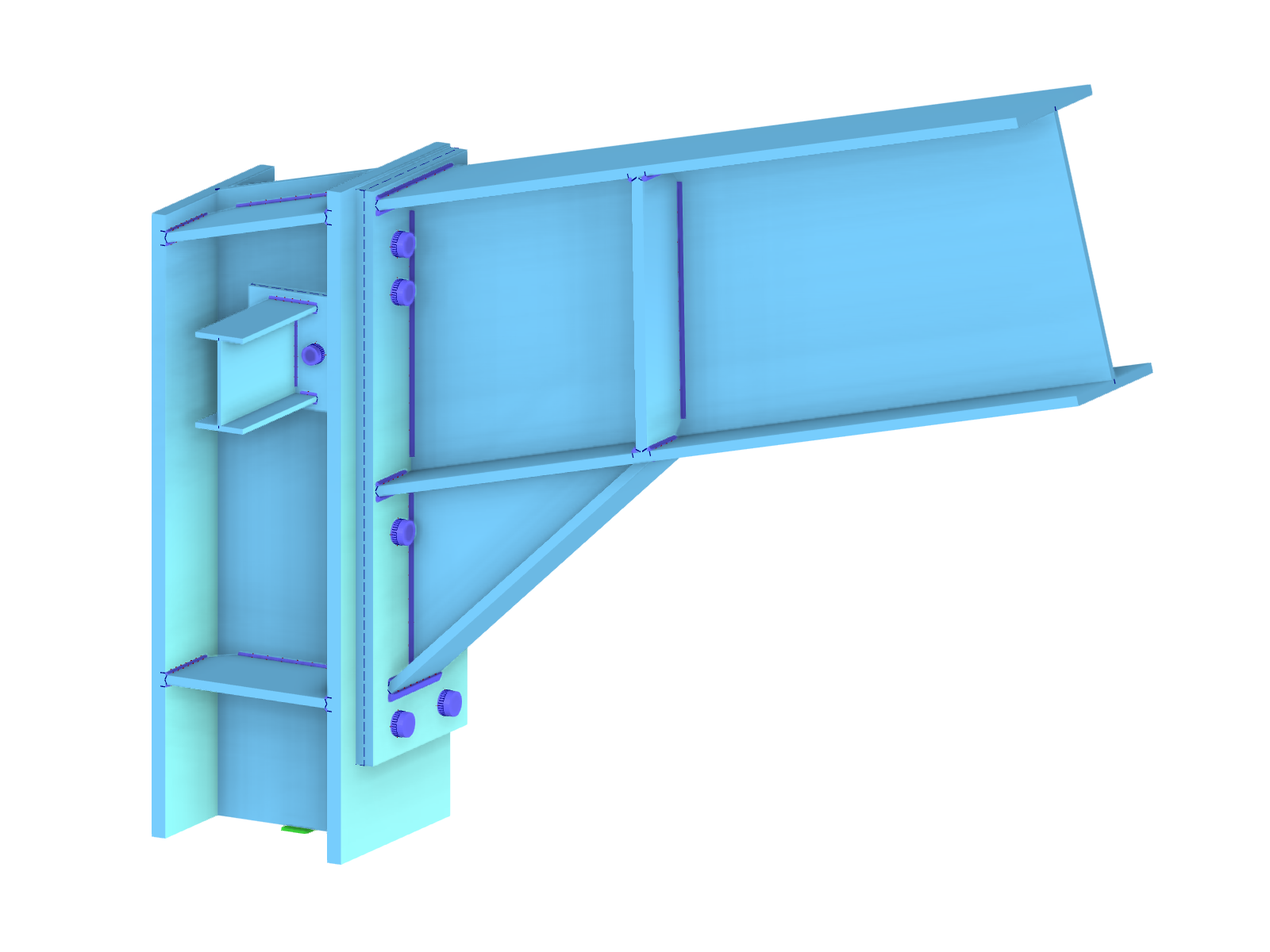

Rigid Frame Connection | Separate Model
Frame Connection
Used in
3D Model
Specifications
| Number of Nodes | 2052 |
| Number of Lines | 1675 |
| Number of Members | 988 |
| Number of Surfaces | 137 |
| Number of Solids | 0 |
| Number of Load Cases | 2 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.130 tons |
| Dimensions (Metric) | 1.048 x 0.868 x 0.581 m |
| Dimensions (Imperial) | 3.44 x 2.85 x 1.91 feet |
2022-04-07
030808

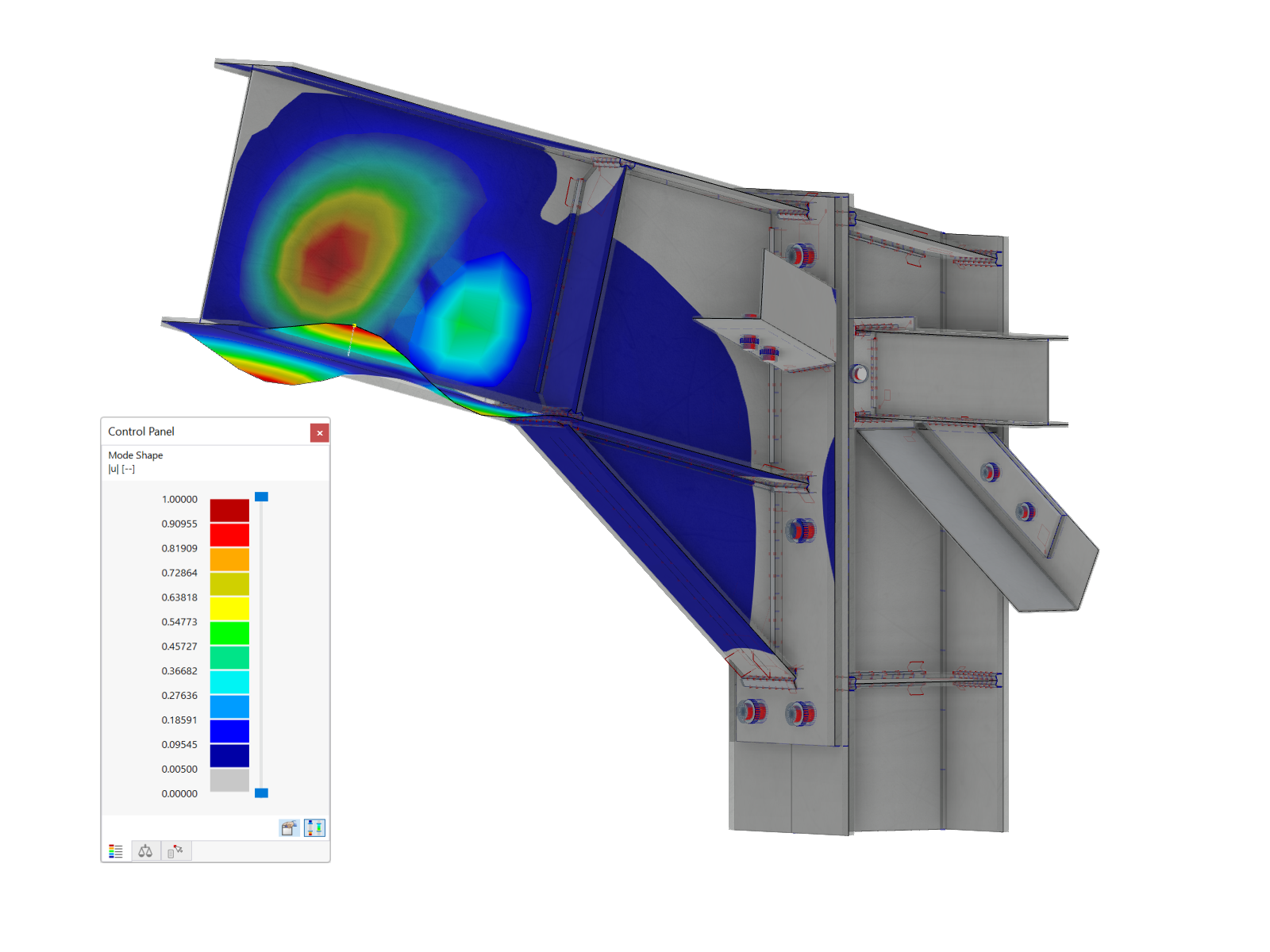

Rigid Frame Connection with Tapers and Stiffeners | Stability Analysis
Rigid Frame Connection | Buckling
Used in
3D Model
Specifications
| Number of Nodes | 2052 |
| Number of Lines | 1675 |
| Number of Members | 988 |
| Number of Surfaces | 137 |
| Number of Solids | 0 |
| Number of Load Cases | 2 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.130 tons |
| Dimensions (Metric) | 1.048 x 0.868 x 0.581 m |
| Dimensions (Imperial) | 3.44 x 2.85 x 1.91 feet |
