2022-06-20
032443

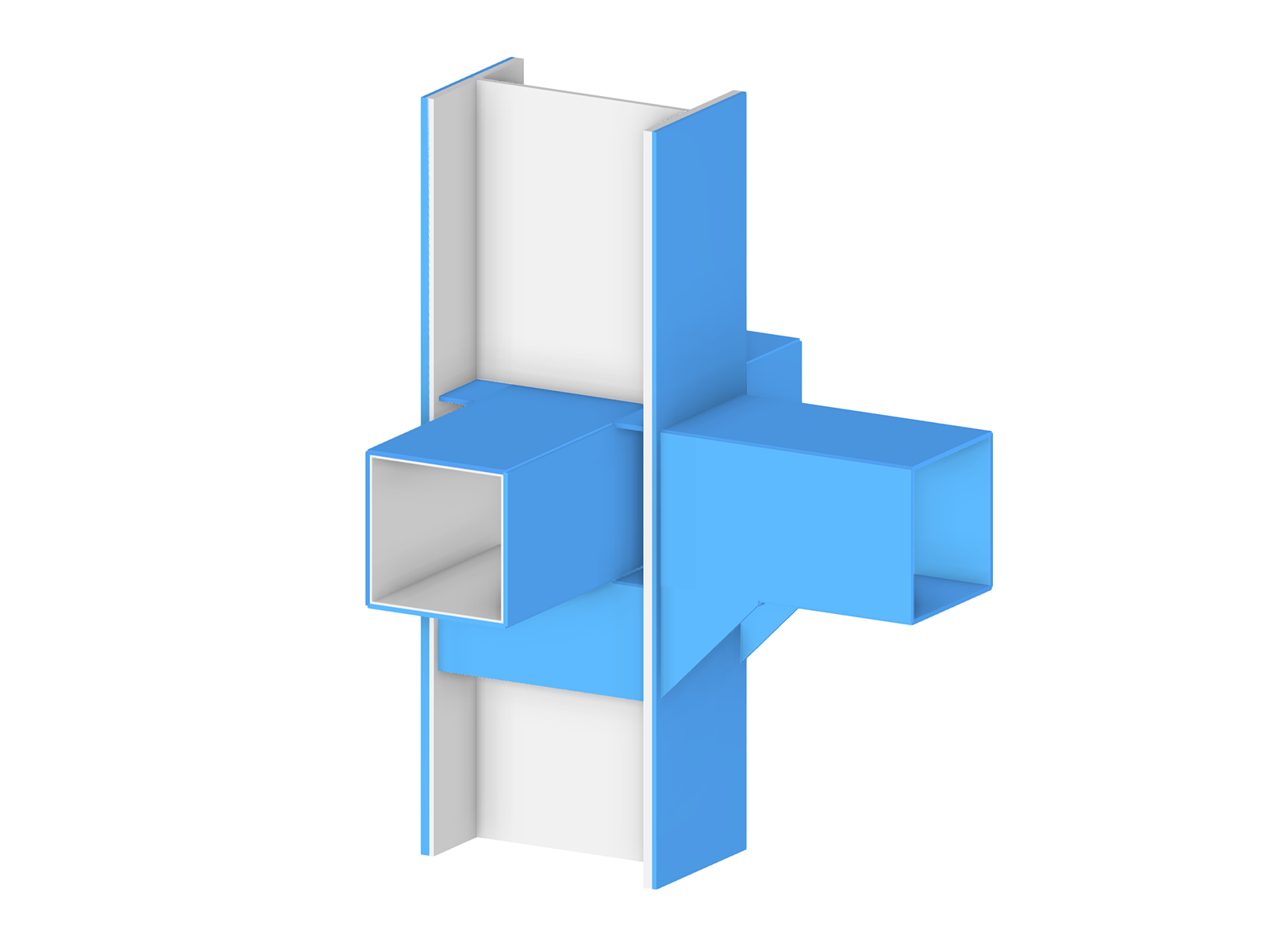

Steel Connection | Beams and Column
Connection | Beams and Column
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 71 |
| Number of Lines | 120 |
| Number of Members | 2 |
| Number of Surfaces | 40 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 1.814 tons |
| Dimensions (Metric) | 1.418 x 2.000 x 1.500 m |
| Dimensions (Imperial) | 4.65 x 6.56 x 4.92 feet |
2022-06-20
032454

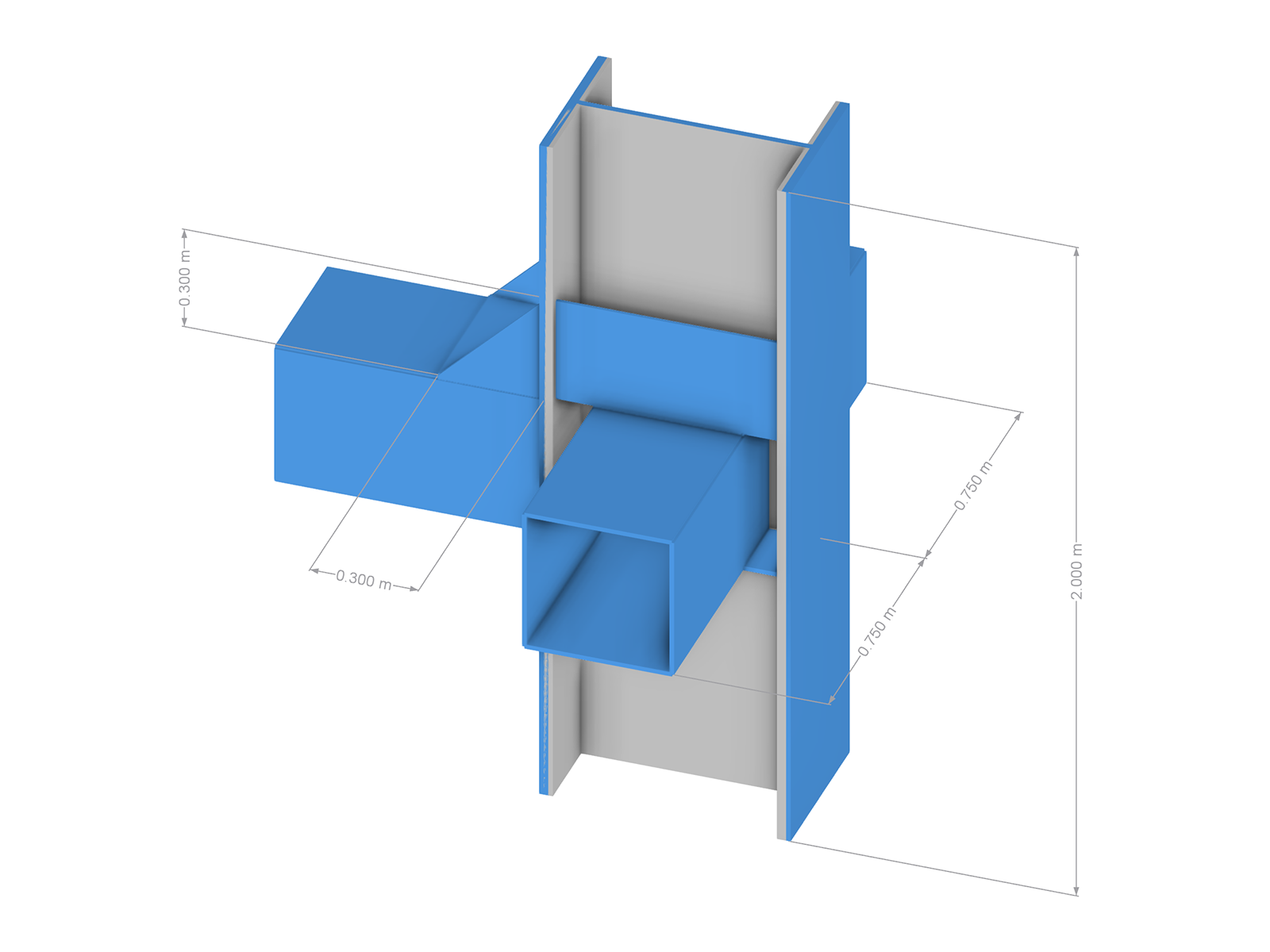

Steel Connection with Dimensions | Beams and Column
Connection with Dimensions | Beams and Column
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 71 |
| Number of Lines | 120 |
| Number of Members | 2 |
| Number of Surfaces | 40 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 1.814 tons |
| Dimensions (Metric) | 1.418 x 2.000 x 1.500 m |
| Dimensions (Imperial) | 4.65 x 6.56 x 4.92 feet |
