2022-08-11
033585
Truss Connection with Connecting Plate | Steel Joints Add-on for RFEM 6

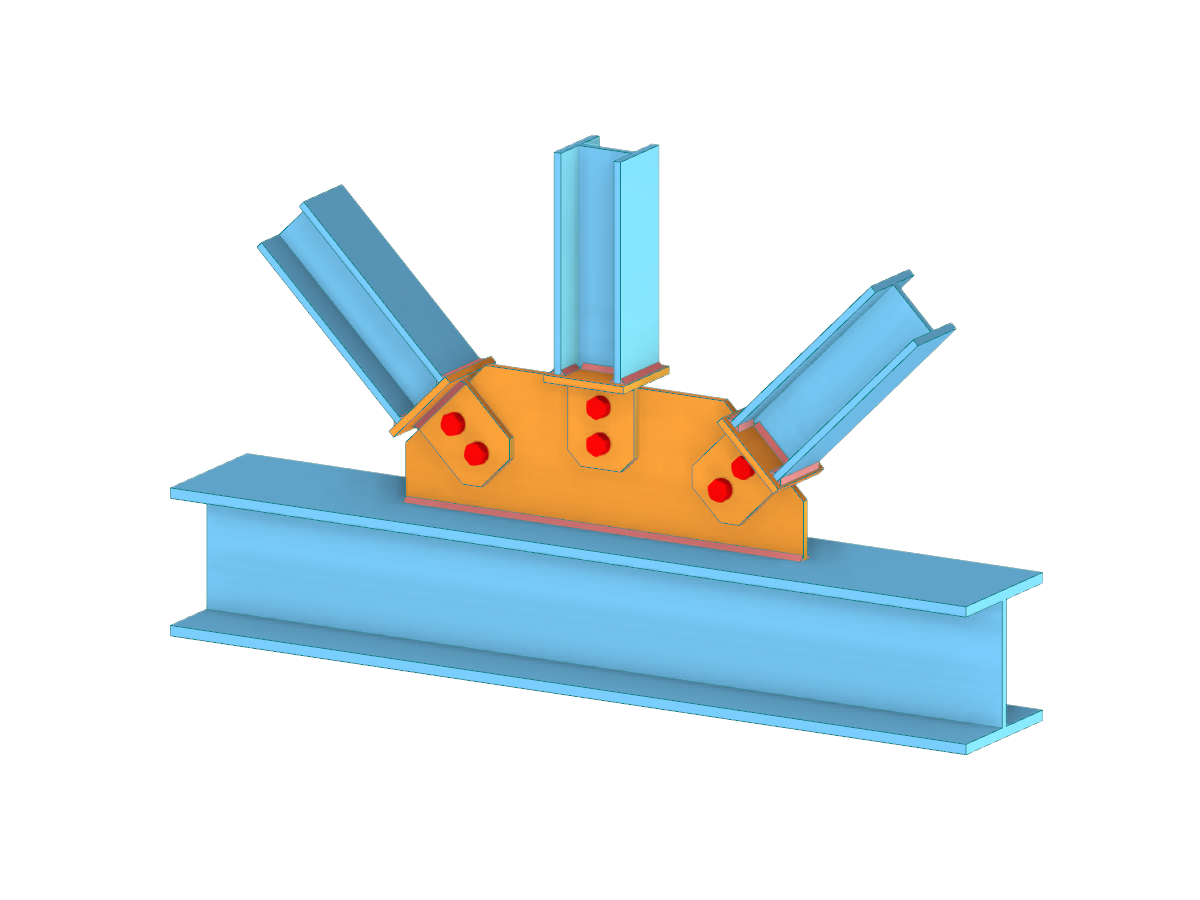

Truss Connection with Connecting Plate
Used in
3D Model
Specifications
| Number of Nodes | 18 |
| Number of Lines | 33 |
| Number of Members | 33 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 2 |
| Number of Load Combinations | 2 |
| Number of Result Combinations | 0 |
| Total Weight | 3.351 tons |
| Dimensions (Metric) | 20.000 x 2.500 x 0.000 m |
| Dimensions (Imperial) | 65.62 x 8.2 x 0 feet |
2024-08-08
033579

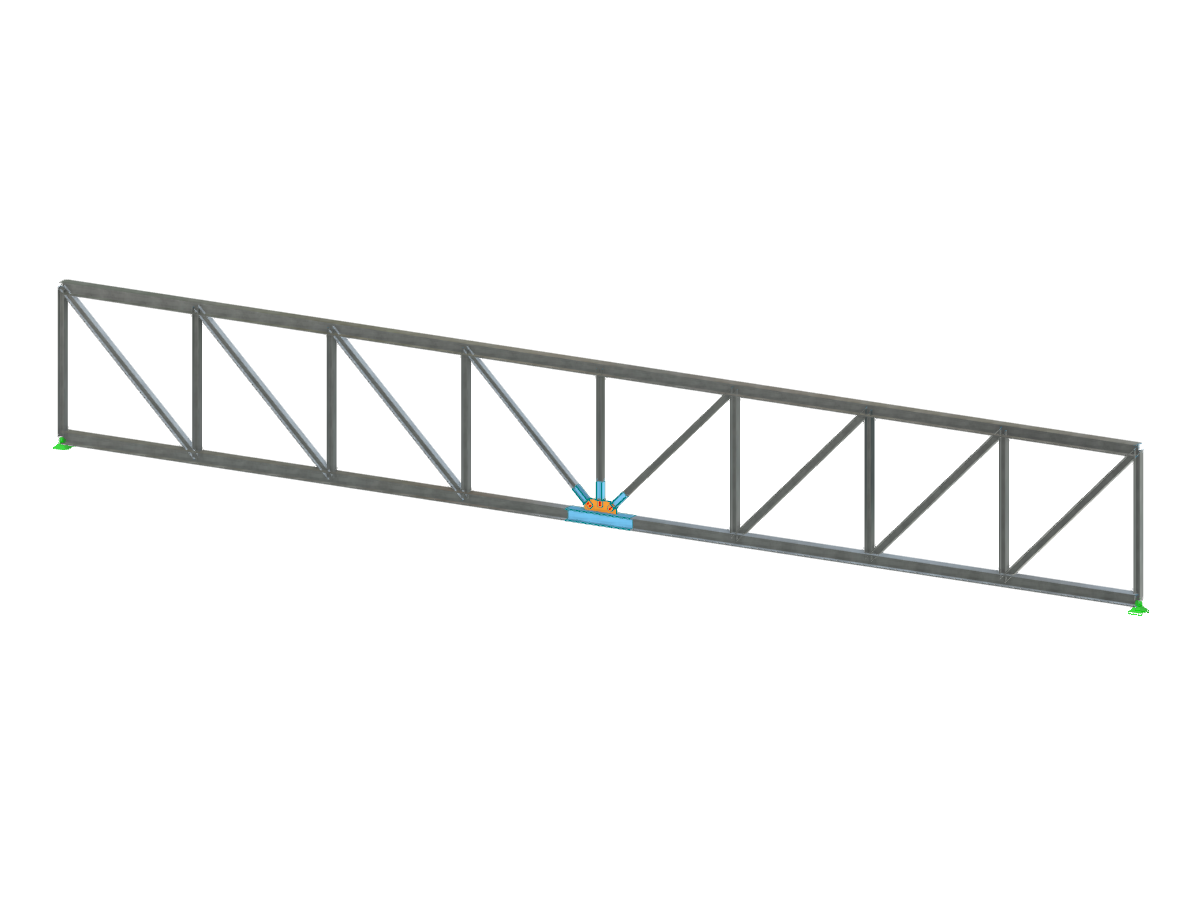

Steel Truss with Truss Connection
Steel Truss
3D Model
Specifications
| Number of Nodes | 18 |
| Number of Lines | 33 |
| Number of Members | 33 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 2 |
| Number of Load Combinations | 2 |
| Number of Result Combinations | 0 |
| Total Weight | 3.351 tons |
| Dimensions (Metric) | 20.000 x 2.500 x 0.000 m |
| Dimensions (Imperial) | 65.62 x 8.2 x 0 feet |
