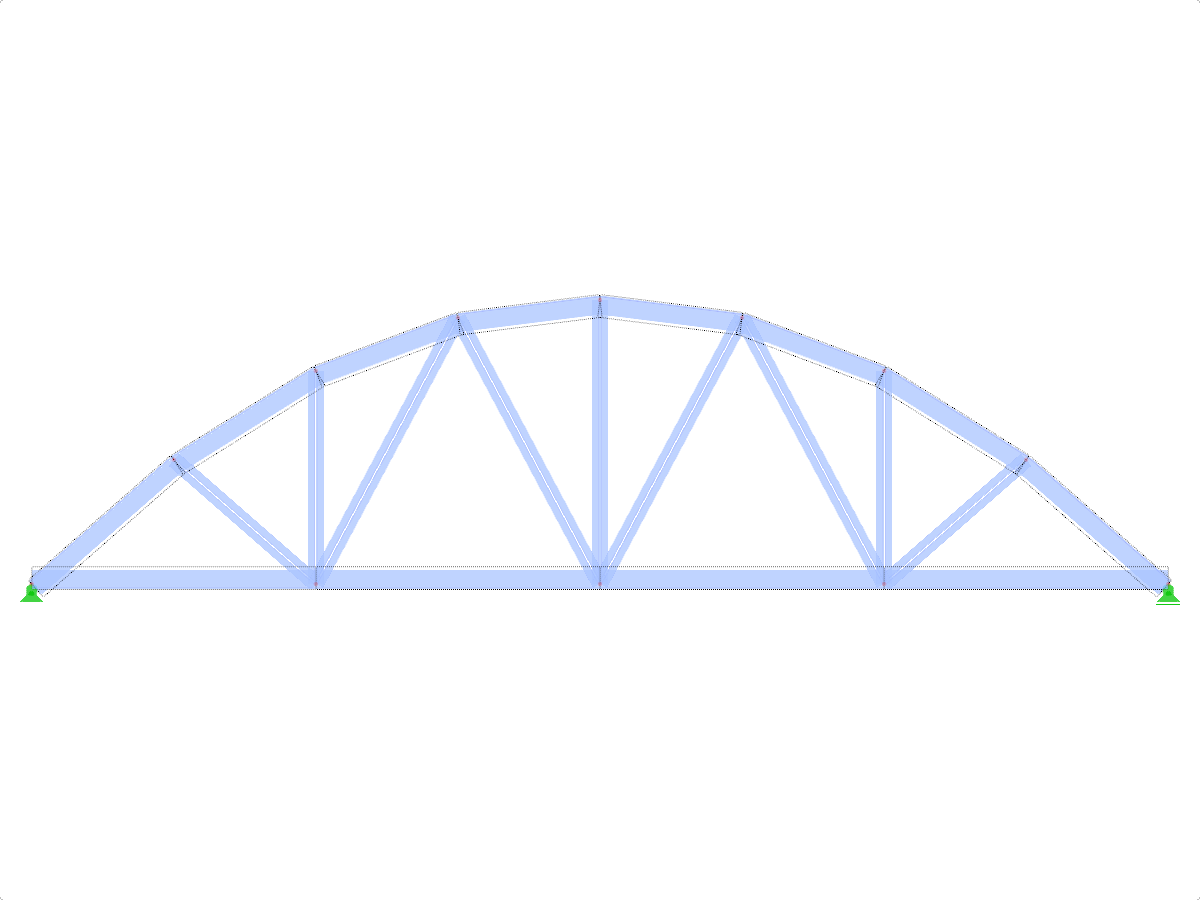

FT704p-plg | Bowstring Truss
Model ID 1657
Used in
3D Model
Specifications
Block parameters editable dynamically | |
Number of Nodes | 12 |
Number of Lines | 21 |
Number of Members | 21 |
Number of Surfaces | 0 |
Number of Solids | 0 |
Number of Load Cases | 1 |
Number of Load Combinations | 0 |
Number of Result Combinations | 0 |
Total Weight | 1.406 tons |
Dimensions (Metric) | 12.000 x 3.000 x 0.000 m |
Dimensions (Imperial) | 39.37 x 9.84 x 0 feet |
