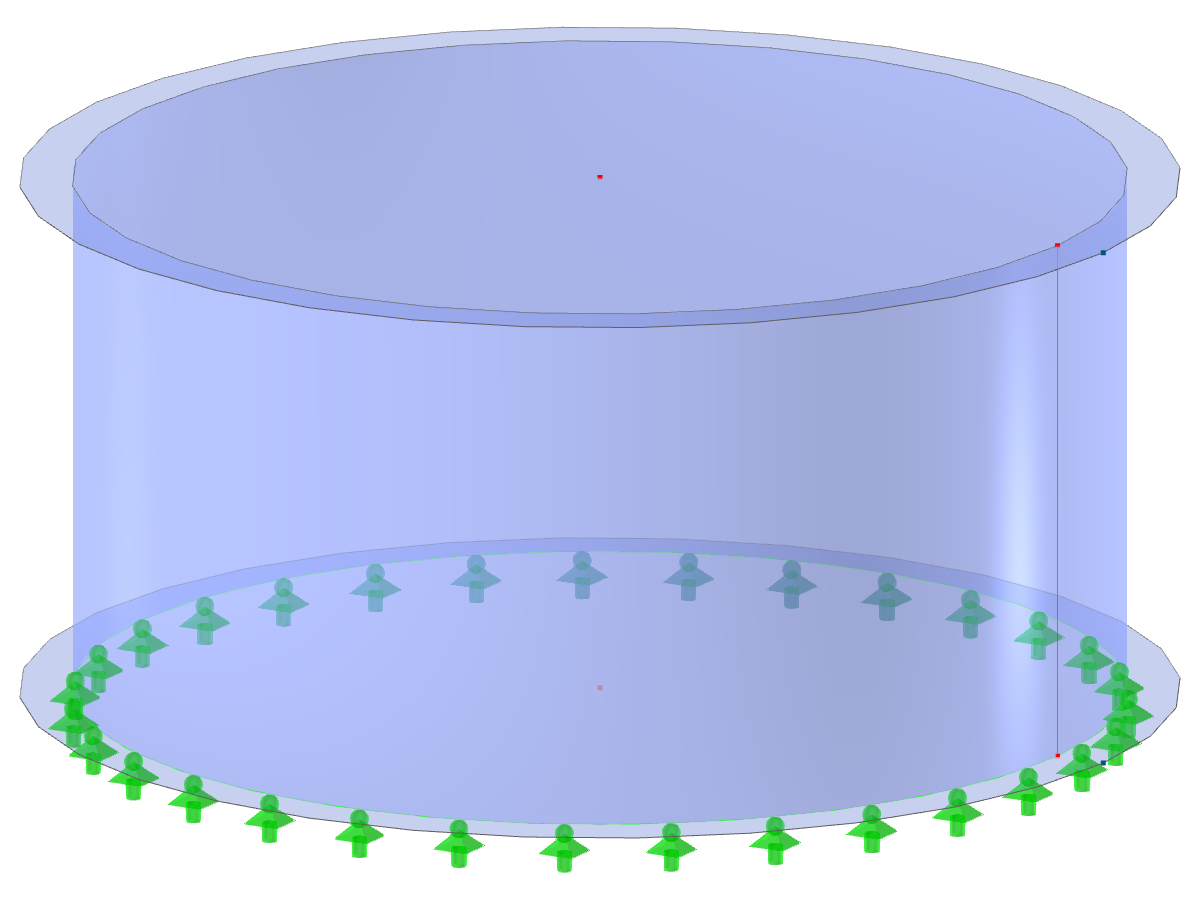

Steel Silo with Circular Plan and Plain Roof

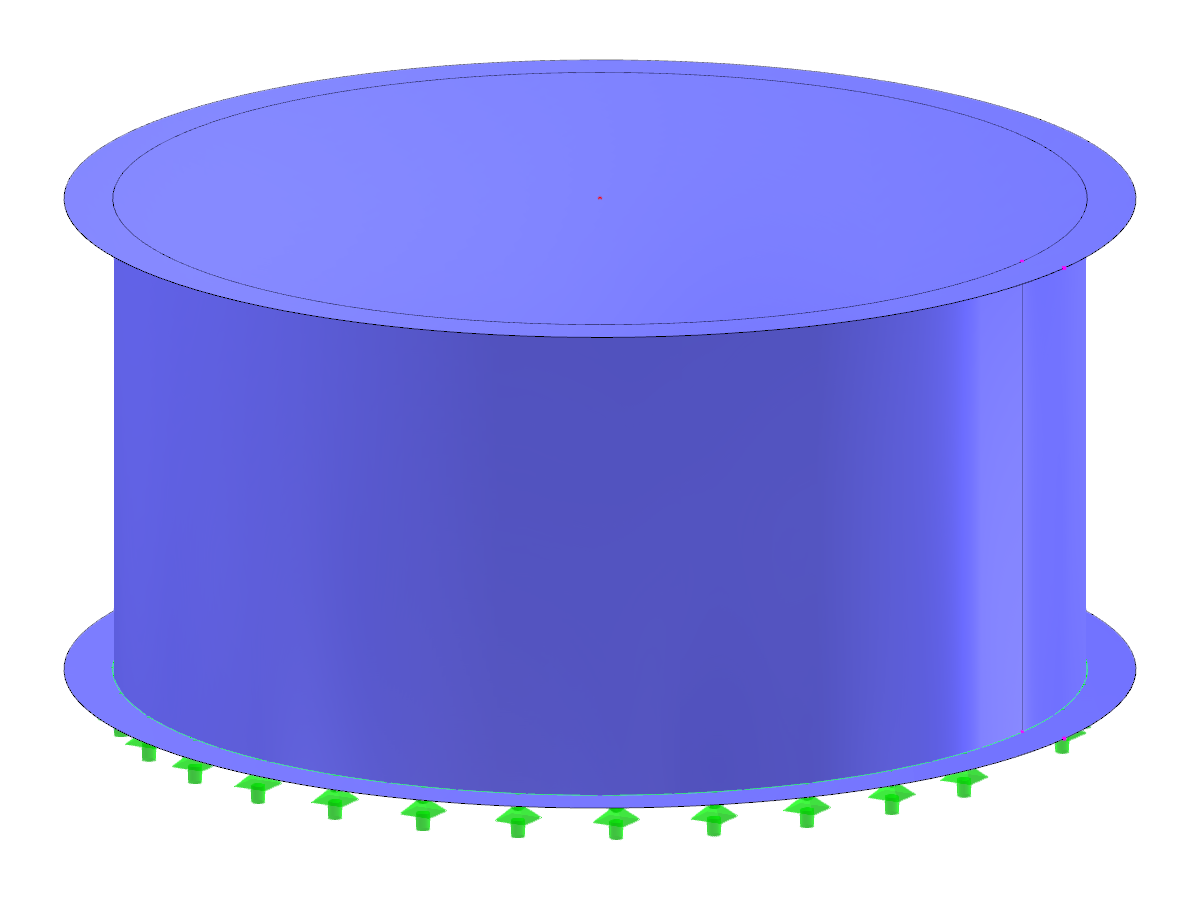

Steel silo with a circular plan and a plain roof, designed for efficient storage and protection from the elements.
The image depicts a steel silo characterized by its circular floor plan and plain roof, designed for bulk material storage. Its structure ensures efficiency and safety in storing loose materials while offering protection from environmental factors. The design demonstrates considerations for both durability and functionality.
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 6 |
| Number of Lines | 5 |
| Number of Members | 0 |
| Number of Surfaces | 3 |
| Number of Solids | 0 |
| Number of Load Cases | 2 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 52.067 tons |
| Dimensions (Metric) | 11.000 x 5.000 x 11.000 m |
| Dimensions (Imperial) | 36.09 x 16.4 x 36.09 feet |
