Steel Silo with Circular Plan
Steel silo featuring a circular plan for optimized storage structure and load distribution.

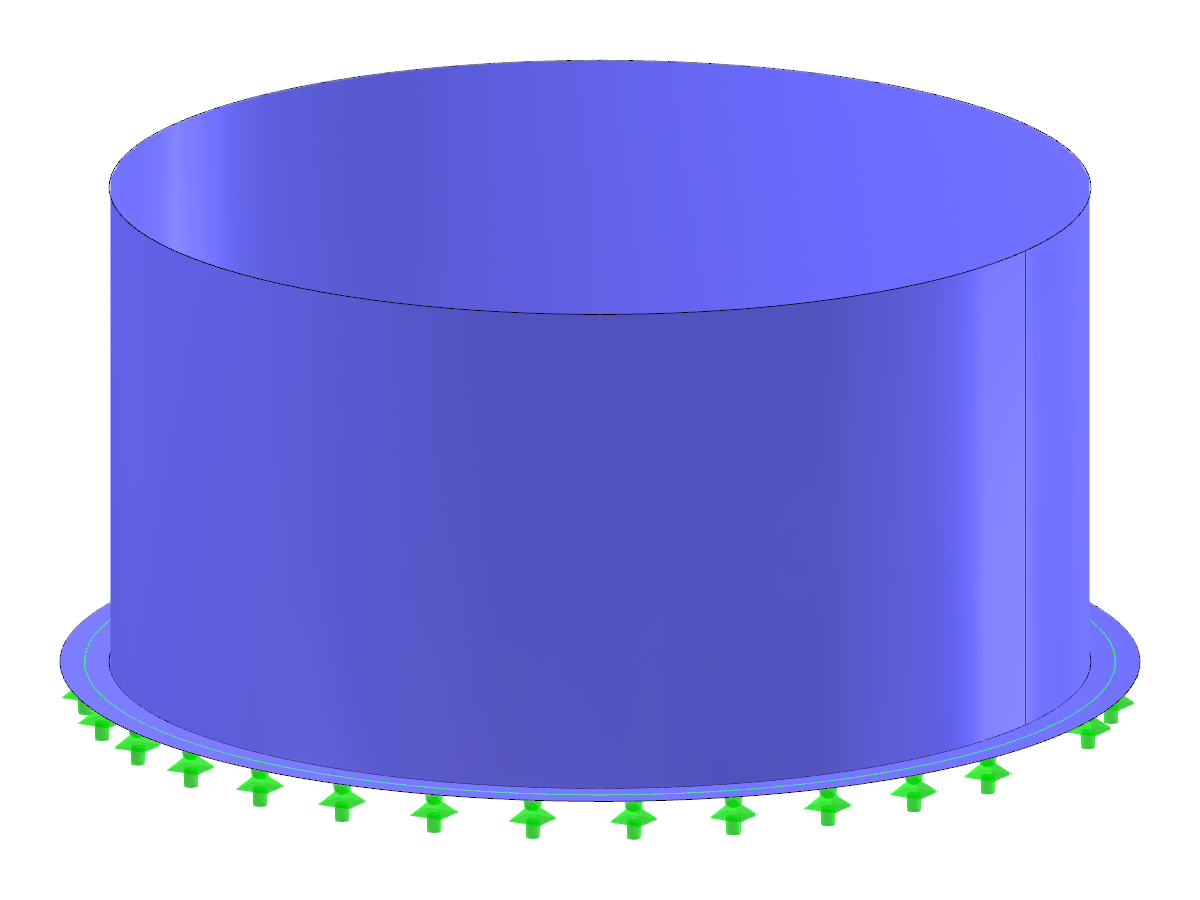

The image displays a steel silo designed with a circular plan, which enhances structural efficiency and evenly distributes loads. The silo is intended for bulk material storage and is engineered to maintain stability under various load conditions. The design highlights the advantages of using circular geometry in silo construction, ensuring effective capacity utilization and material flow. The structure exhibits modern engineering practices in silos, combining strength with practicality.
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 5 |
| Number of Lines | 5 |
| Number of Members | 0 |
| Number of Surfaces | 2 |
| Number of Solids | 0 |
| Number of Load Cases | 2 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 40.876 tons |
| Dimensions (Metric) | 11.000 x 5.000 x 11.000 m |
| Dimensions (Imperial) | 36.09 x 16.4 x 36.09 feet |
