034-FPC010 | Prismatic Folded Structure Systems. Cross-Folded Surfaces Spanned Diagonally over Rectangular Floor Plan, Ridges Folded Upward

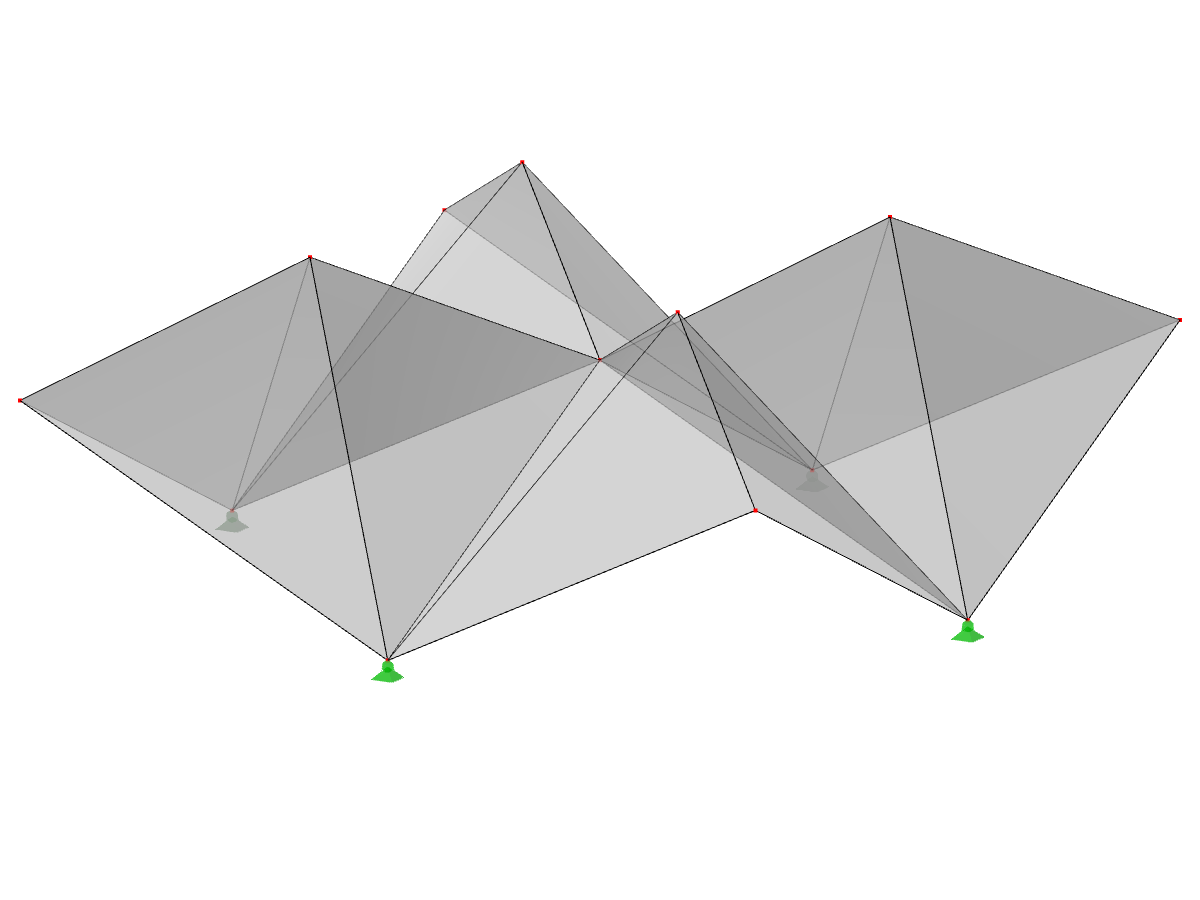

Model ID 512 | 034-FPC010 | Prismatic Folded Structure Systems. Cross-Folded Surfaces Spanned Diagonally over Rectangular Floor Plan, Ridges Folded Upward
3D Model
More About 3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 13 |
| Number of Lines | 28 |
| Number of Members | 0 |
| Number of Surfaces | 16 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 470.532 tons |
| Dimensions (Metric) | 20,000 x 8,000 x 20,000 m |
| Dimensions (Imperial) | 65.62 x 26.25 x 65.62 feet |
