034-FPL100 | Prismatic Folded Structure Systems | Surfaces with Counter-Running Folding | Ridge-to-Ridge Folding

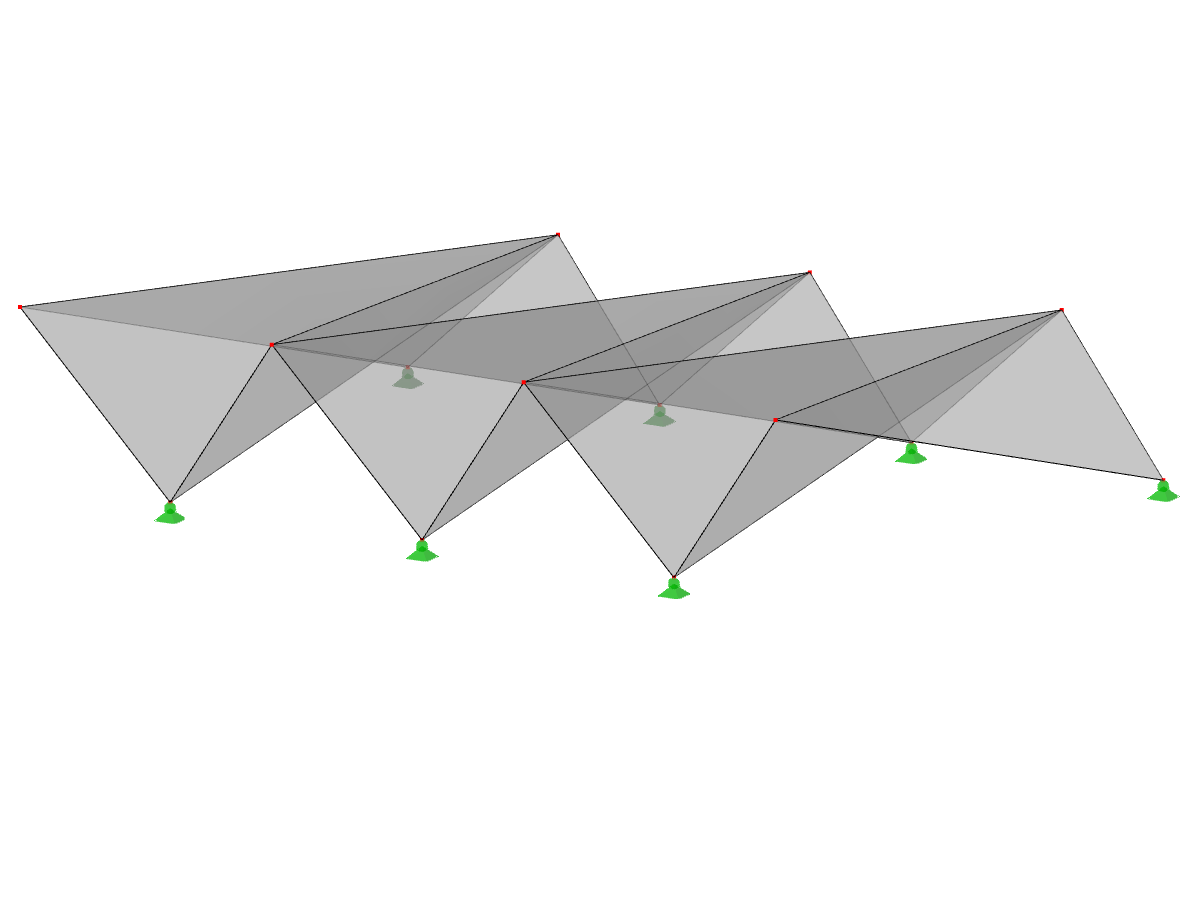

Model ID 520 | 034-FPL100 | Prismatic Folded Structure Systems | Surfaces with Counter-Running Folding | Ridge-to-Ridge Folding
3D Model
More About 3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 15 |
| Number of Lines | 25 |
| Number of Members | 0 |
| Number of Surfaces | 12 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 232.336 tons |
| Dimensions (Metric) | 18,000 x 5,000 x 17,000 m |
| Dimensions (Imperial) | 59.06 x 16.4 x 55.77 feet |
