034-FPC008-b | Prismatic Folded Structure Systems. Single-Folded Surfaces over Polygonal Floor Plan, Ridges Toward Center

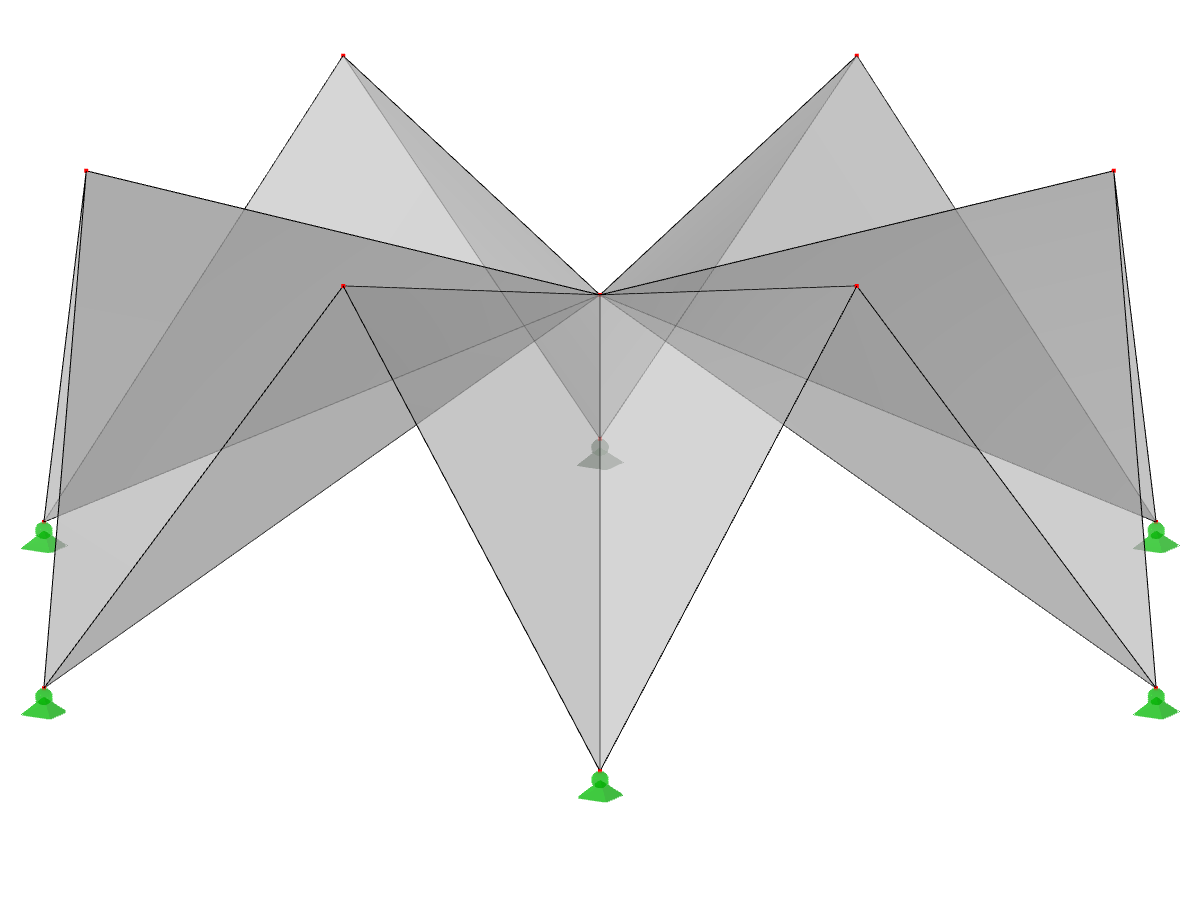

Model ID 523 | 034-FPC008-b | Prismatic Folded Structure Systems. Single-Folded Surfaces over Polygonal Floor Plan, Ridges Toward Center
3D Model
More About 3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 13 |
| Number of Lines | 24 |
| Number of Members | 0 |
| Number of Surfaces | 12 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 211.827 tons |
| Dimensions (Metric) | 20.000 x 7.000 x 17.321 m |
| Dimensions (Imperial) | 65.62 x 22.97 x 56.83 feet |
