034-FPL104 | Prismatic Folded Structure Systems. Surfaces with Counter-Running Folding. Center Fold Elevated over Ridge Fold. Ridge-to-Valley Folding
Model ID 525 | 034-FPL104 | Prismatic Folded Structure Systems. Surfaces with Counter-Running Folding. Center Fold Elevated over Ridge Fold. Ridge-to-Valley Folding

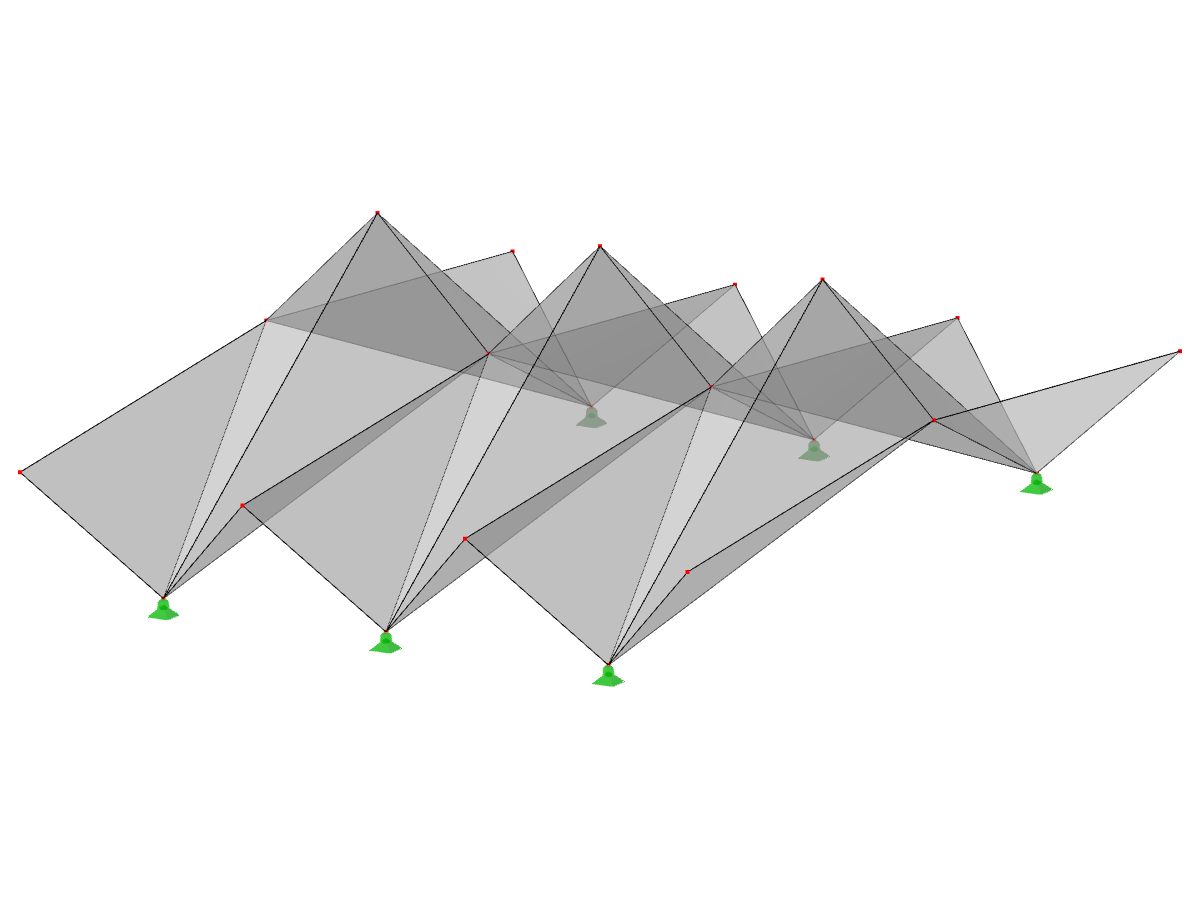

3D Model
More About 3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 21 |
| Number of Lines | 44 |
| Number of Members | 0 |
| Number of Surfaces | 24 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 632.485 tons |
| Dimensions (Metric) | 18.000 x 8.000 x 23.000 m |
| Dimensions (Imperial) | 59.06 x 26.25 x 75.46 feet |
