034-FPL123 | Prismatic Folded Structure Systems. Linear Structure System Composed of Folded Surfaces. Two-Hinged A-Frame: Ridge-to-Valley Folding

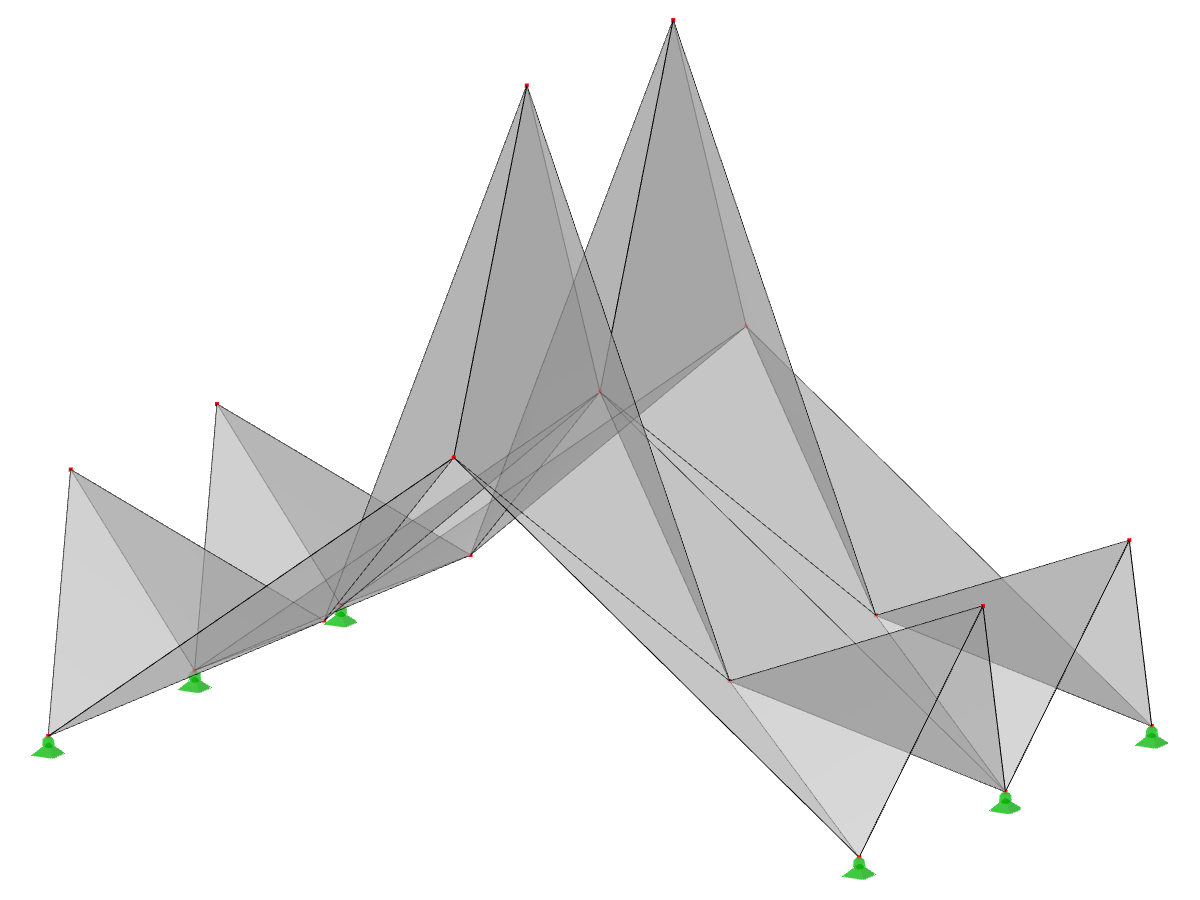

Model ID 547 | 034-FPL123 | Prismatic Folded Structure Systems. Linear Structure System Composed of Folded Surfaces. Two-Hinged A-Frame: Ridge-to-Valley Folding
3D Model
More About 3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 19 |
| Number of Lines | 42 |
| Number of Members | 0 |
| Number of Surfaces | 24 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 254.388 tons |
| Dimensions (Metric) | 18,000 x 12,000 x 10,000 m |
| Dimensions (Imperial) | 59.06 x 39.37 x 32.81 feet |
