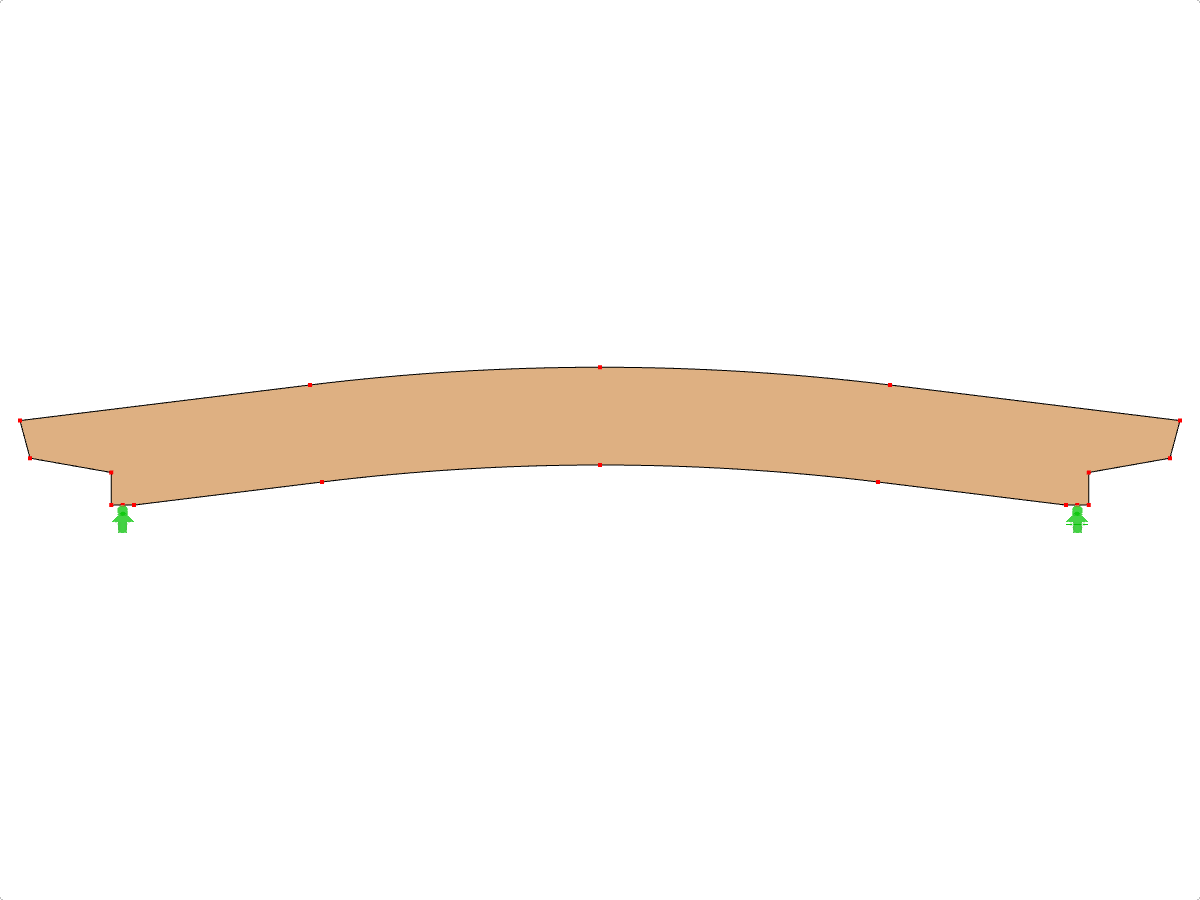

GLB0405 | Glued-Laminated Beam | Curved | Constant Height | Symmetric | Offset-Tapered Cantilevers
Model ID 574 | GLB0405 | Glued-Laminated Beam | Curved | Constant Height | Symmetric | Offset-Tapered Cantilevers
Used in
3D Model
More About 3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 18 |
| Number of Lines | 16 |
| Number of Members | 0 |
| Number of Surfaces | 1 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 1.970 tons |
| Dimensions (Metric) | 17,800 x 2,115 x 0,000 m |
| Dimensions (Imperial) | 58.4 x 6.94 x 0 feet |
