GLB0512 | Glued-Laminated Beam | Pitched Cambered | Constant Height | Symmetric | Horizontal Cantilevers | With Loose Ridge Wedge

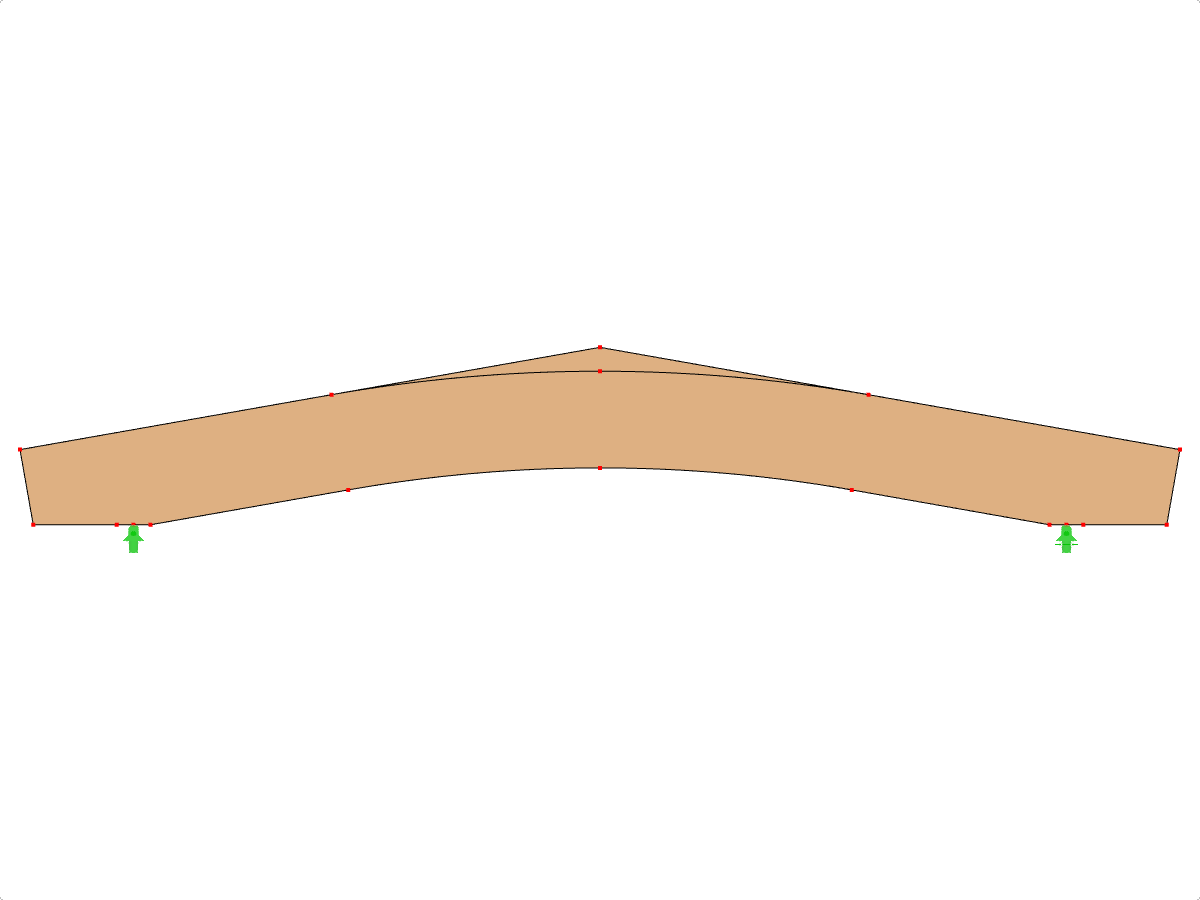

Model ID 587 | GLB0512 | Glued-Laminated Beam | Pitched Cambered | Constant Height | Symmetric | Horizontal Cantilevers | With Loose Ridge Wedge
3D Model
More About 3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 17 |
| Number of Lines | 16 |
| Number of Members | 0 |
| Number of Surfaces | 2 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.973 tons |
| Dimensions (Metric) | 12,000 x 1,835 x 0,000 m |
| Dimensions (Imperial) | 39.37 x 6.02 x 0 feet |
