GLB0516 | Glued-Laminated Beam | Pitched Cambered | Constant Height | Asymmetric | With Loose Ridge Wedge

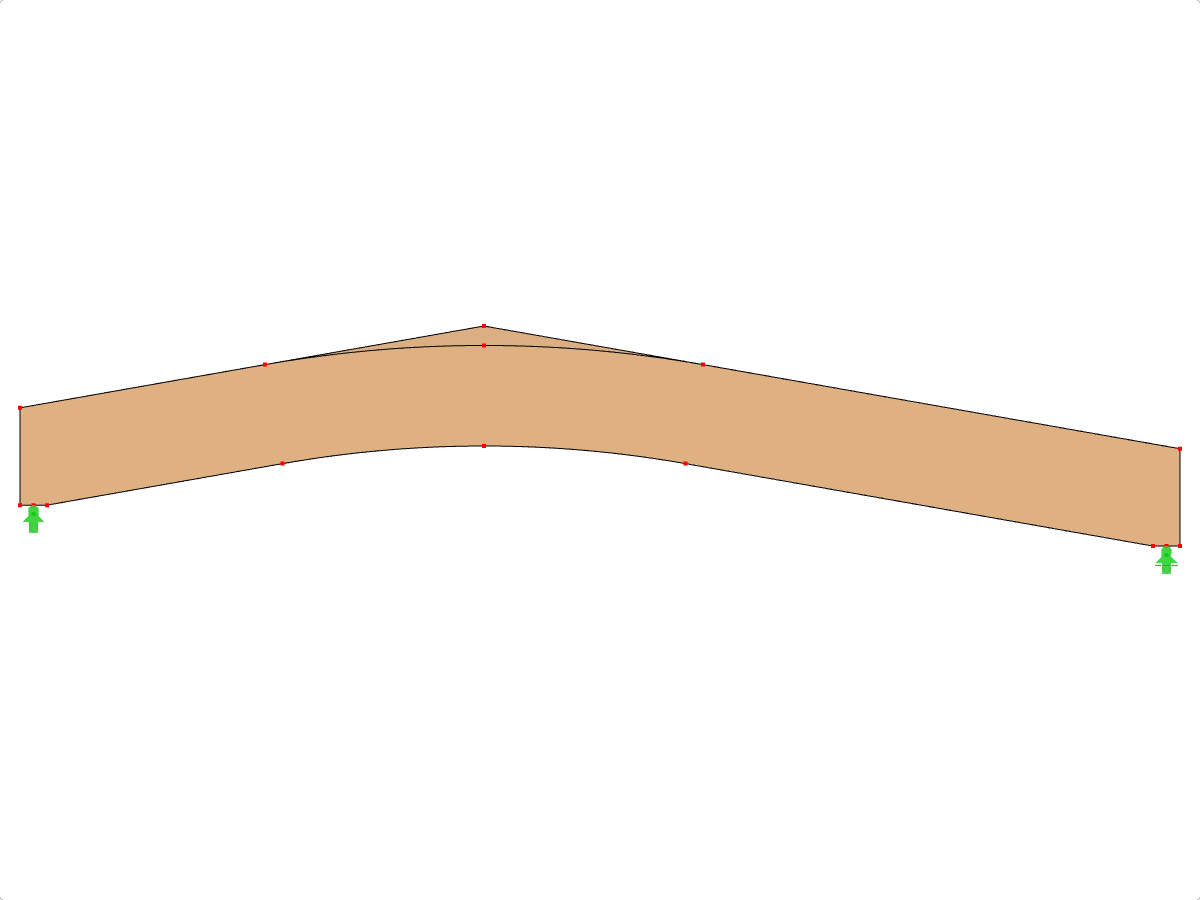

Model ID 595 | GLB0516 | Glued-Laminated Beam | Pitched Cambered | Constant Height | Asymmetric | With Loose Ridge Wedge
3D Model
More About 3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 15 |
| Number of Lines | 14 |
| Number of Members | 0 |
| Number of Surfaces | 2 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 1.615 tons |
| Dimensions (Metric) | 15,000 x 2,845 x 0,000 m |
| Dimensions (Imperial) | 49.21 x 9.33 x 0 feet |
