GLB0508 | Glued-Laminated Beam | Pitched Cambered | Variable Height | Asymmetric | Parallel Cantilevers | Without Loose Ridge Wedge

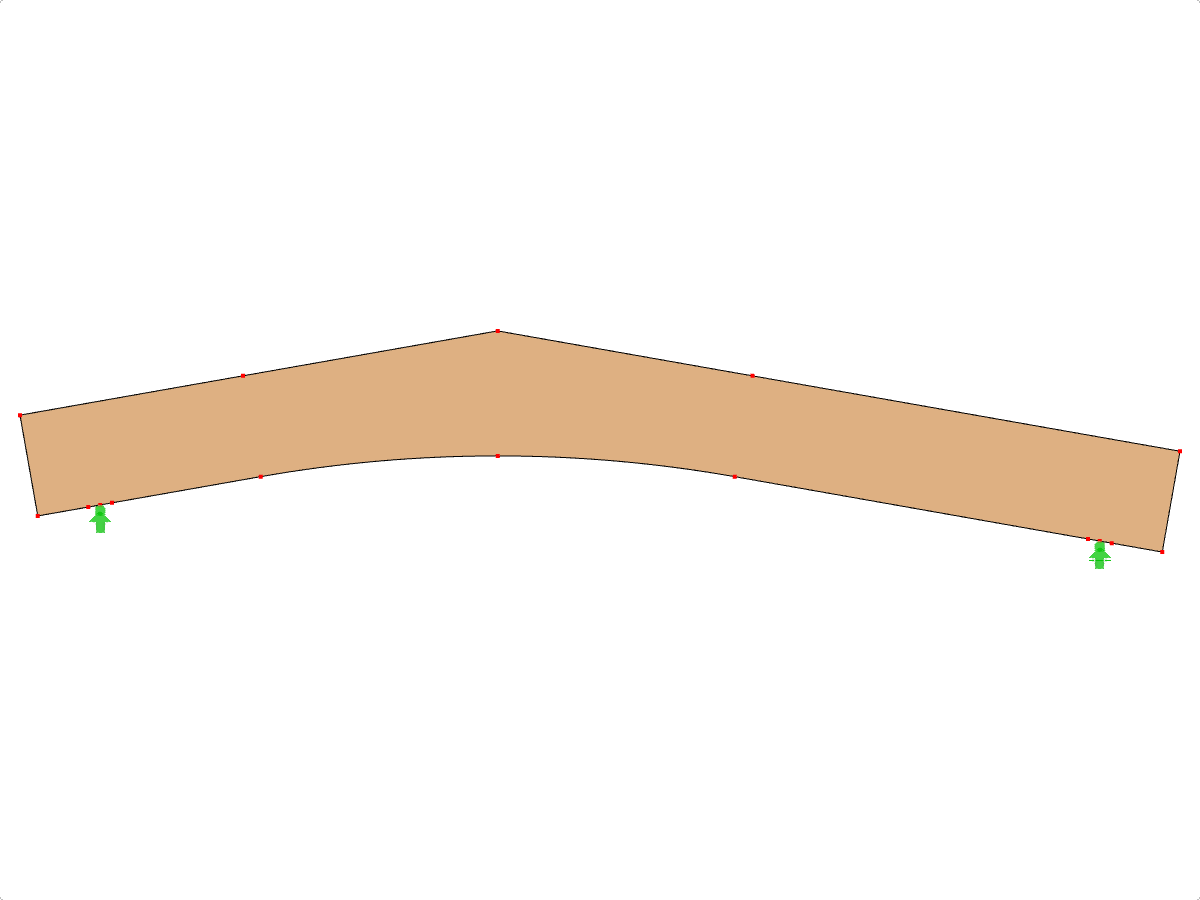

Model ID 597 | GLB0508 | Glued-Laminated Beam | Pitched Cambered | Variable Height | Asymmetric | Parallel Cantilevers | Without Loose Ridge Wedge
3D Model
More About 3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 16 |
| Number of Lines | 15 |
| Number of Members | 0 |
| Number of Surfaces | 1 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 2.097 tons |
| Dimensions (Metric) | 17,000 x 3,240 x 0,000 m |
| Dimensions (Imperial) | 55.77 x 10.63 x 0 feet |
