GLB0602 | Glued-Laminated Beam | Pitched Cambered | Variable Height | Symmetric | Horizontal Cantilevers | Without Loose Ridge Wedge

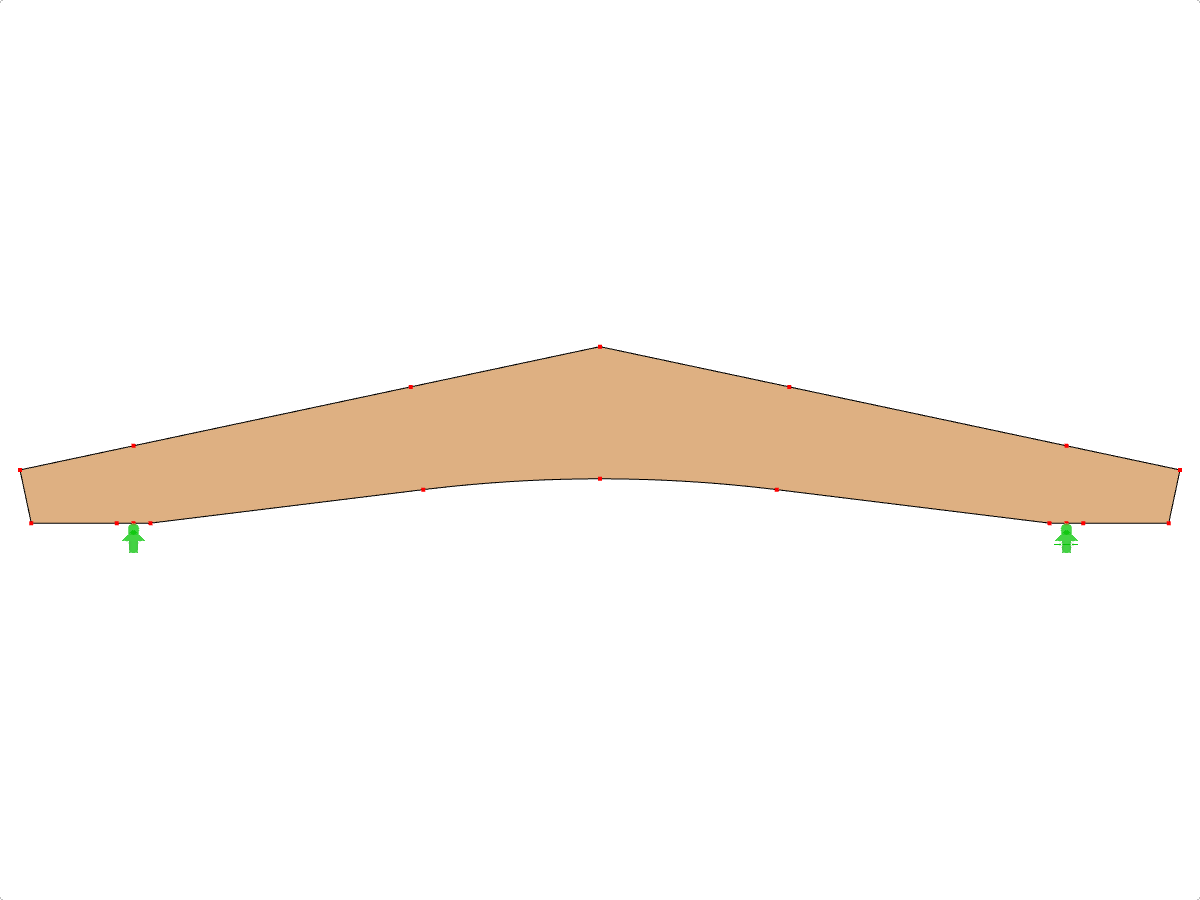

Model ID 605 | GLB0602 | Glued-Laminated Beam | Pitched Cambered | Variable Height | Symmetric | Horizontal Cantilevers | Without Loose Ridge Wedge
3D Model
More About 3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 18 |
| Number of Lines | 17 |
| Number of Members | 0 |
| Number of Surfaces | 1 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.934 tons |
| Dimensions (Metric) | 12,000 x 1,826 x 0,000 m |
| Dimensions (Imperial) | 39.37 x 5.99 x 0 feet |
