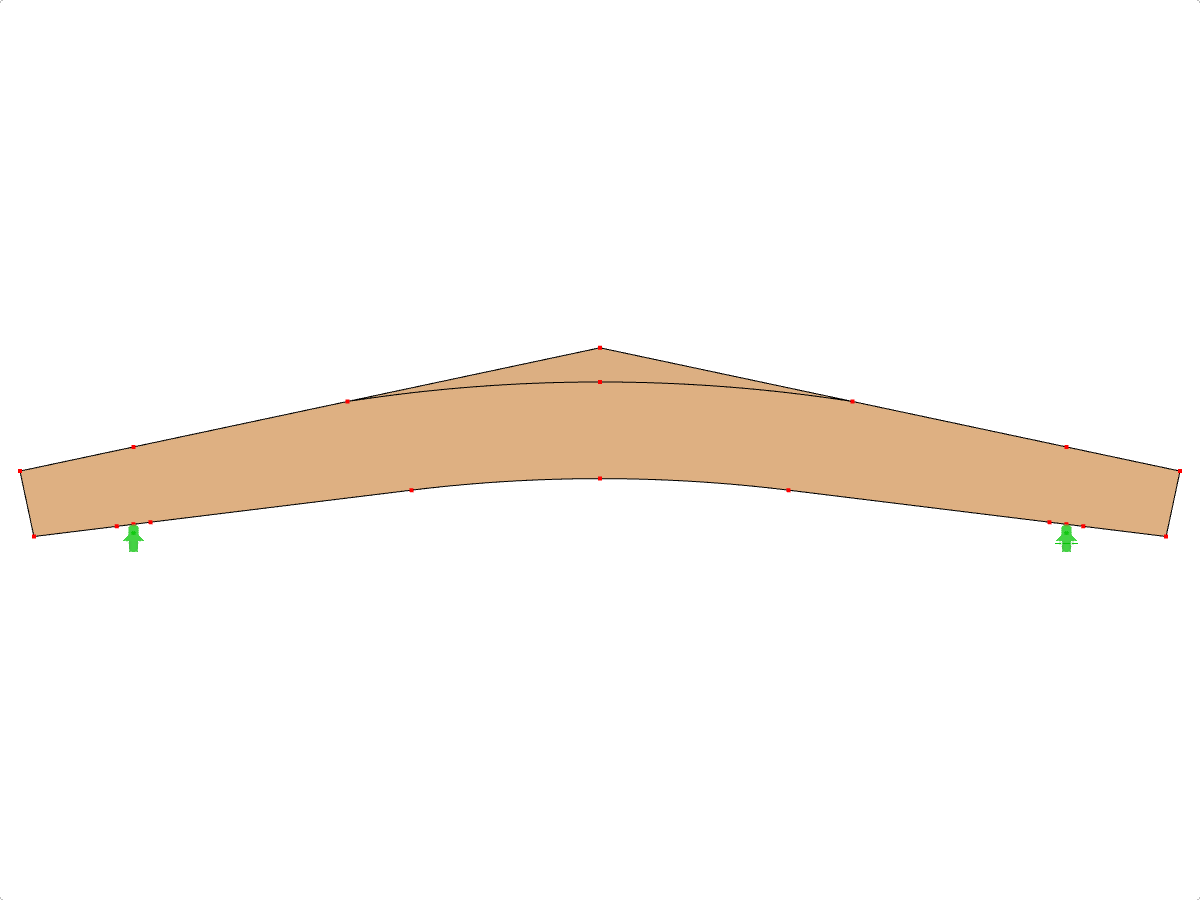

GLB0613 | Glued-Laminated Beam | Pitched Cambered | Variable Height | Symmetric | Parallel Cantilevers | With Loose Ridge Wedge
Model ID 614 | GLB0613 | Glued-Laminated Beam | Pitched Cambered | Variable Height | Symmetric | Parallel Cantilevers | With Loose Ridge Wedge
3D Model
More About 3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 19 |
| Number of Lines | 18 |
| Number of Members | 0 |
| Number of Surfaces | 2 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.930 tons |
| Dimensions (Metric) | 12,000 x 1,952 x 0,000 m |
| Dimensions (Imperial) | 39.37 x 6.4 x 0 feet |
