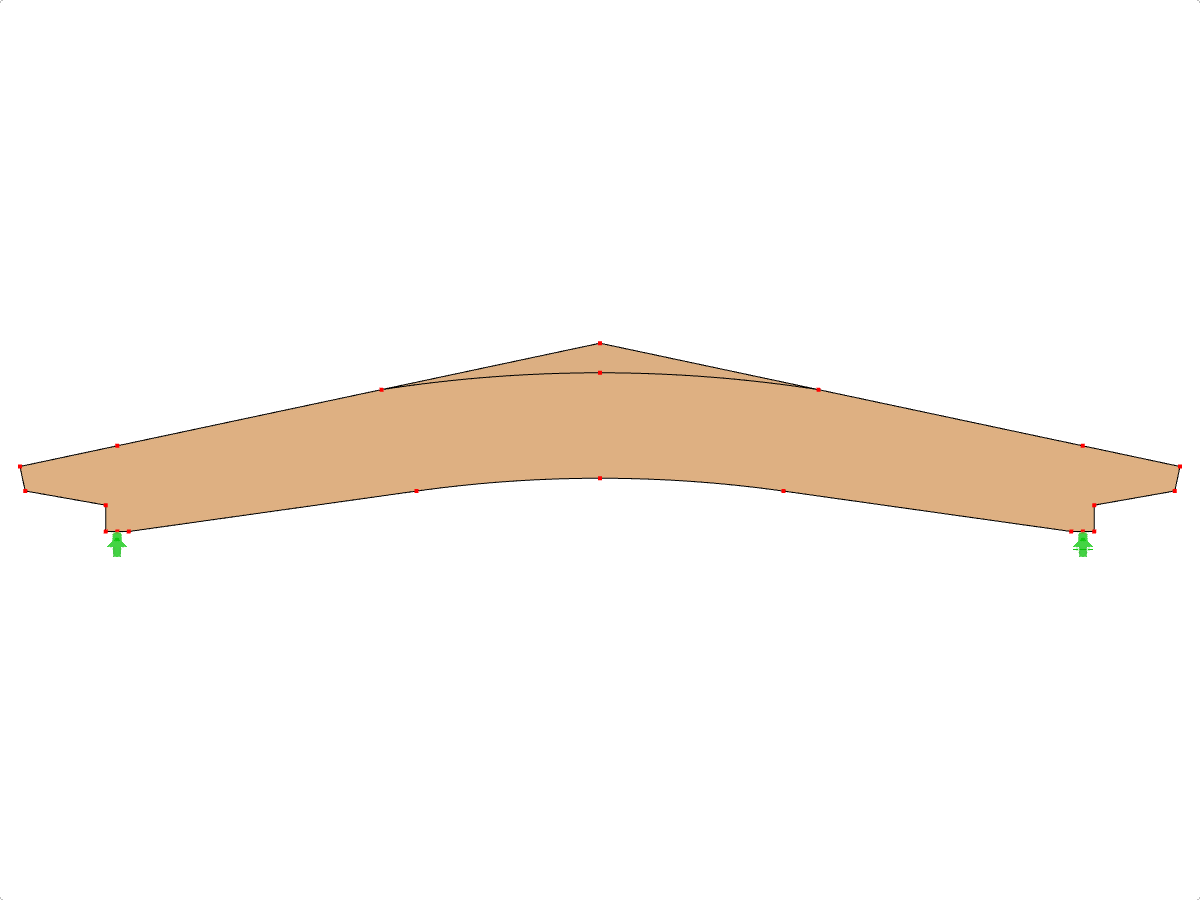

GLB0615 | Glued-Laminated Beam | Pitched Cambered | Variable Height | Symmetric | Offset-Tapered Cantilevers | With Loose Ridge Wedge
Model ID 616 | GLB0615 | Glued-Laminated Beam | Pitched Cambered | Variable Height | Symmetric | Offset-Tapered Cantilevers | With Loose Ridge Wedge
3D Model
More About 3D Model
Specifications
Block parameters editable dynamically | |
Number of Nodes | 21 |
Number of Lines | 20 |
Number of Members | 0 |
Number of Surfaces | 2 |
Number of Solids | 0 |
Number of Load Cases | 1 |
Number of Load Combinations | 0 |
Number of Result Combinations | 0 |
Total Weight | 2.051 tons |
Dimensions (Metric) | 17,600 x 2,857 x 0,000 m |
Dimensions (Imperial) | 57.74 x 9.37 x 0 feet |
