FTZ160p-plg | Parabolic - Flat Bottom Chord

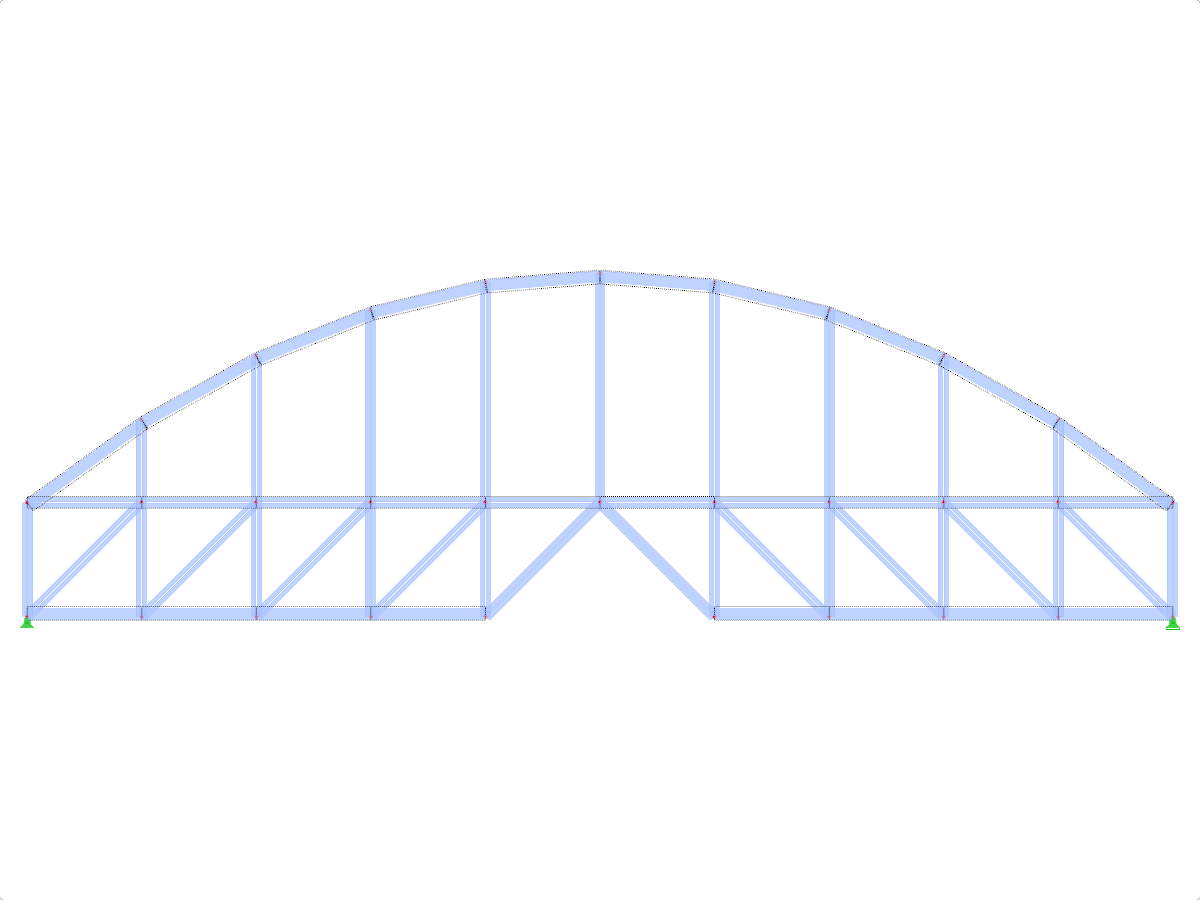

Model ID 1931 | FTZ160p-plg | Parabolic - Flat Bottom Chord
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 30 |
| Number of Lines | 57 |
| Number of Members | 57 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 3.211 tons |
| Dimensions (Metric) | 20,000 x 6,000 x 0,000 m |
| Dimensions (Imperial) | 65.62 x 19.69 x 0 feet |
