Barrel Vault with Variable Radius at Ends

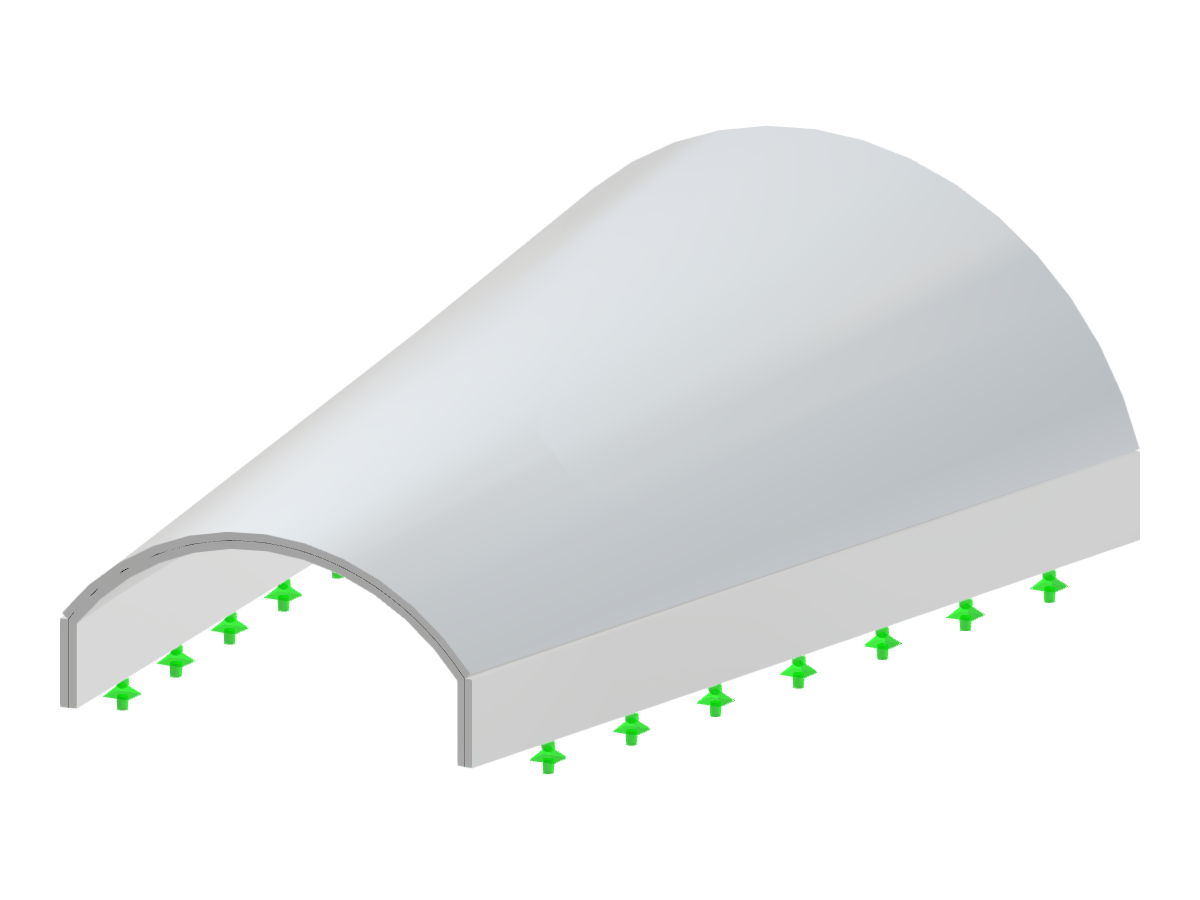

A semi-cylindrical barrel vault structure featuring a variable radius at its ends, shown with distinct height and radius geometry.
The image displays a semi-cylindrical barrel vault structure with a variable radius at its ends, emphasizing its unique geometric design based on height and radius. The vault features distinct dimensions, illustrating how the curvature changes towards its extremities. This type of structure is often used in architecture for its aesthetic appeal and efficient load distribution.
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 8 |
| Number of Lines | 10 |
| Number of Members | 0 |
| Number of Surfaces | 3 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 7.713 tons |
| Dimensions (Metric) | 4.000 x 2.000 x 6.000 m |
| Dimensions (Imperial) | 13.12 x 6.56 x 19.69 feet |
