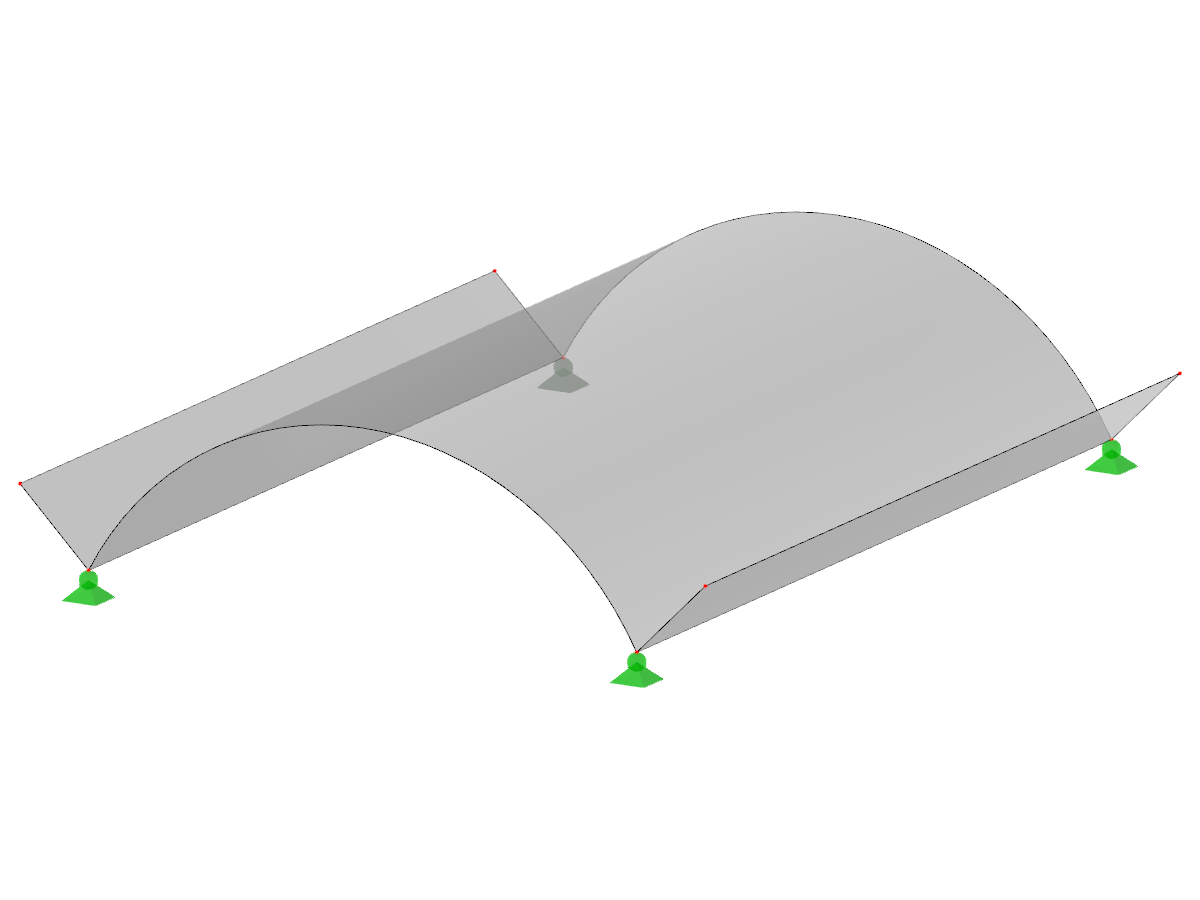

Barrel Vault with Radial Stiffener Analysis

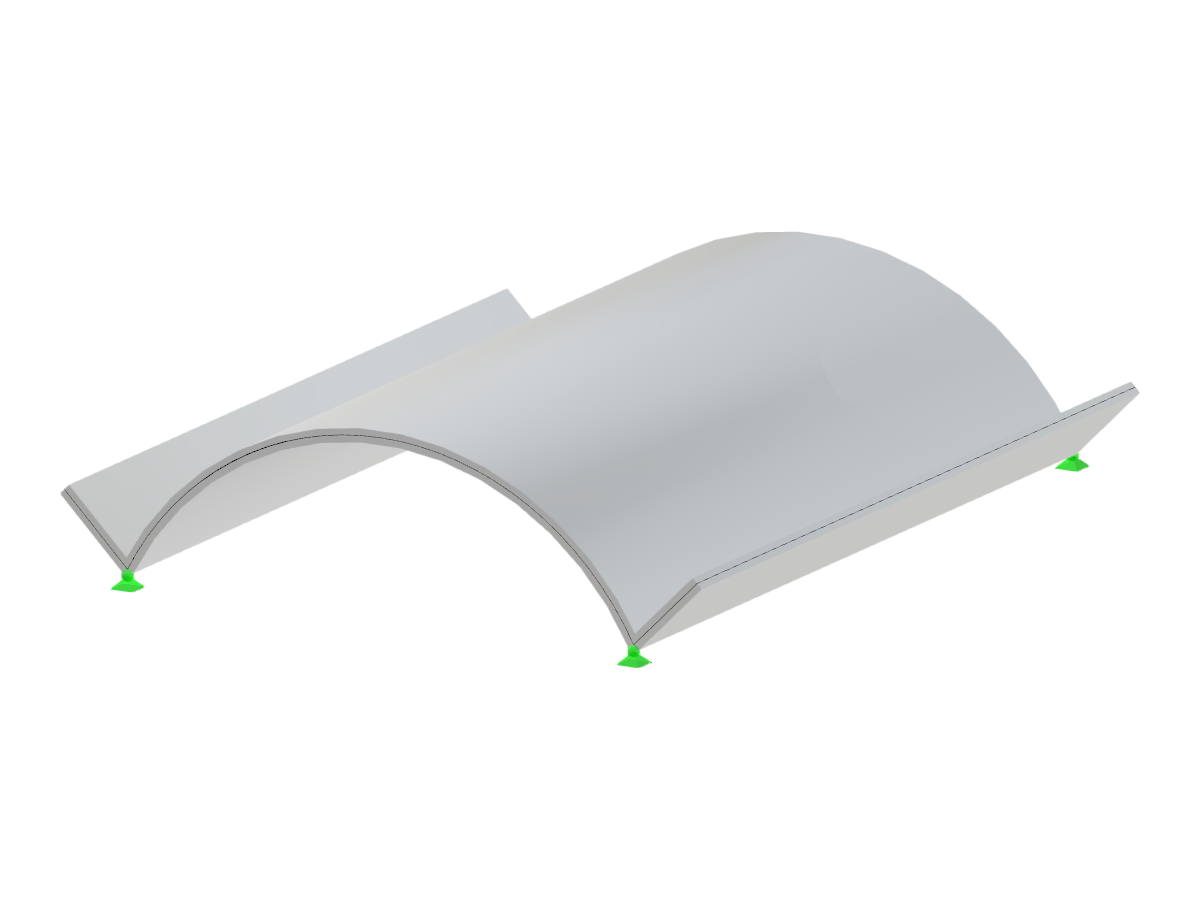

Barrel vault structure featuring a semi-cylindrical shape and radial stiffener design with specified dimensions.
The image illustrates a barrel vault structure characterized by a semi-cylindrical form and radial stiffeners. The geometric parameters are detailed in terms of height and radius. Stiffeners are specified by length, vertical projection, and plan projection. The design demonstrates technical structural aspects relevant for engineering purposes.
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 8 |
| Number of Lines | 10 |
| Number of Members | 0 |
| Number of Surfaces | 3 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 9.471 tons |
| Dimensions (Metric) | 5.000 x 1.200 x 6.000 m |
| Dimensions (Imperial) | 16.4 x 3.94 x 19.69 feet |
