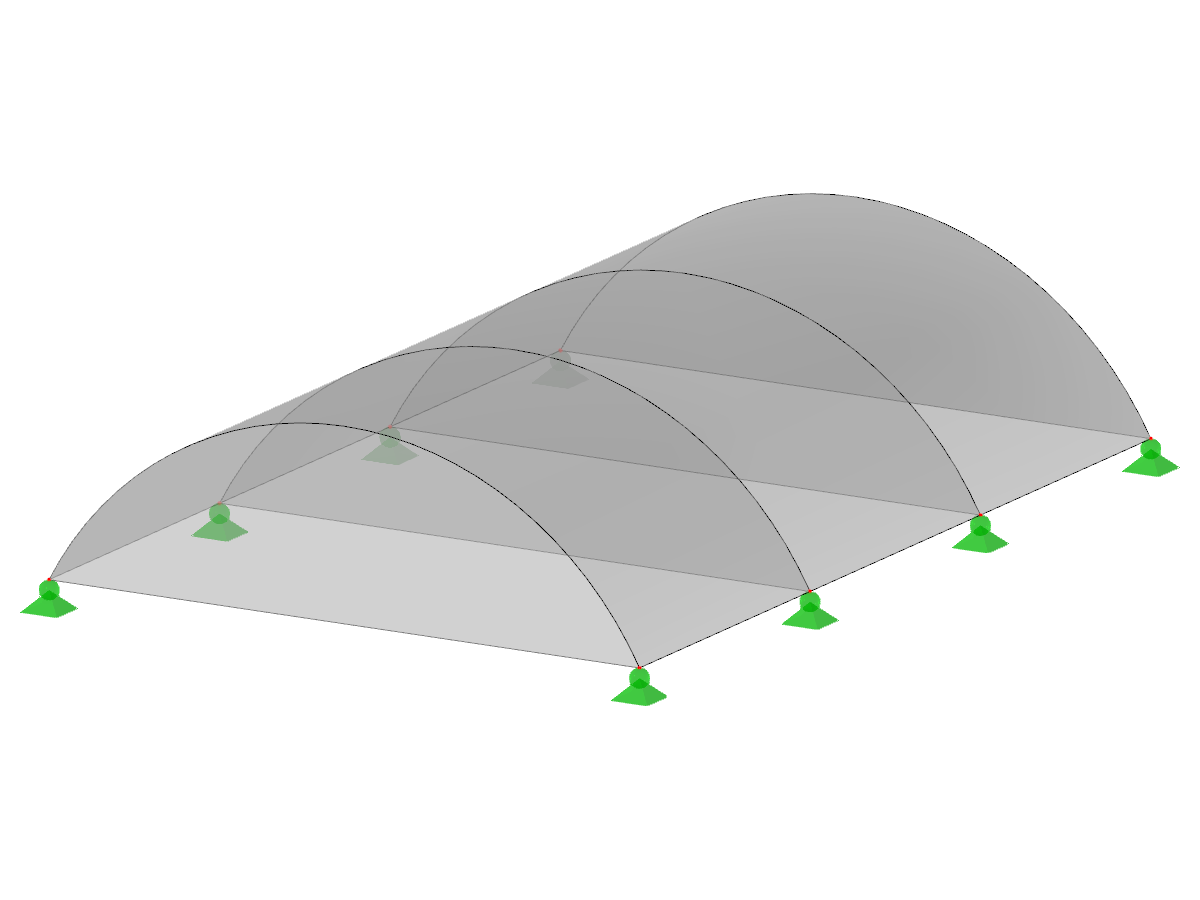

Barrel Vault Structure with Diaphragm Analysis

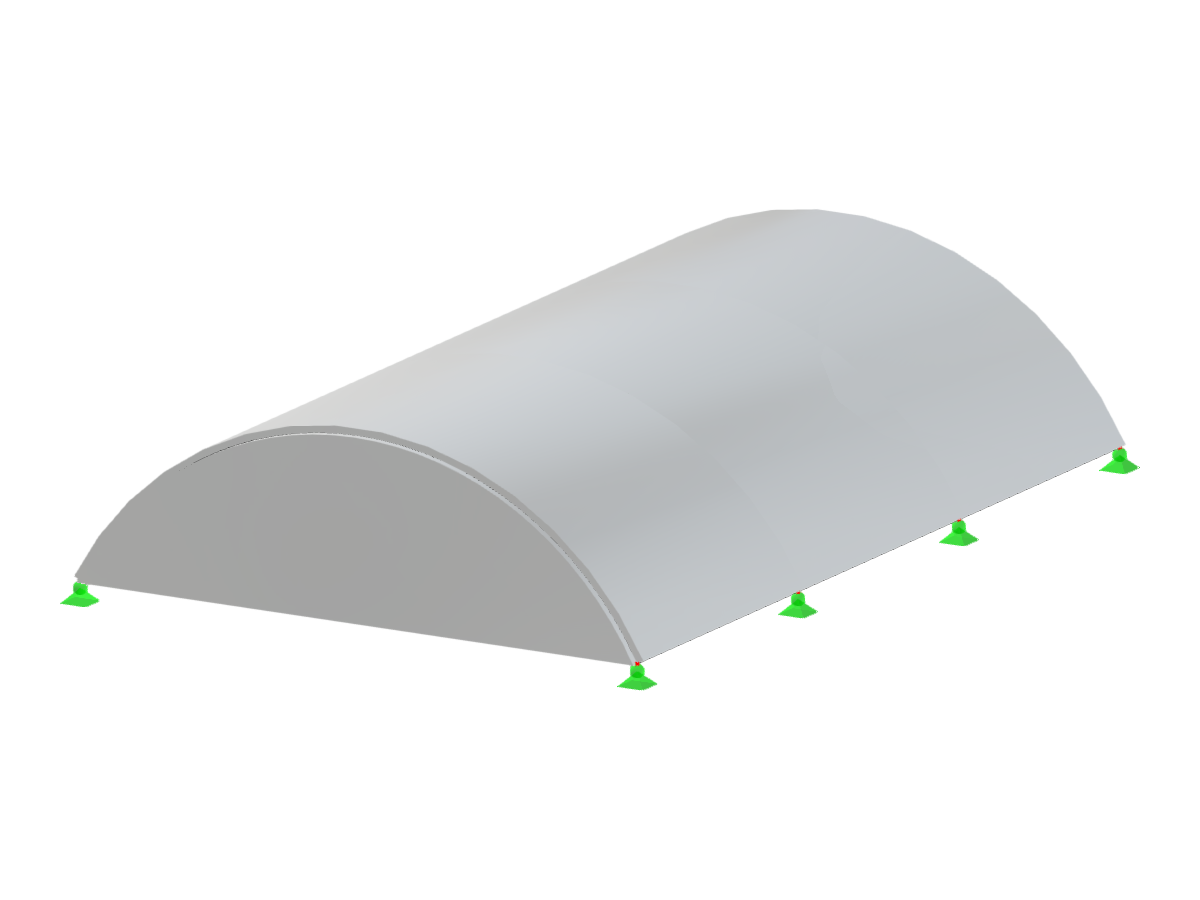

Structural analysis of a barrel vault with diaphragm, using height-radius geometry.
A barrel vault structure is analyzed with a semi-cylindrical shape, characterized by its height and radius geometry. The structure integrates diaphragm elements for stability enhancement. This type of vault is commonly used for large-span architectural applications. Its design involves complex load distribution dynamics.
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 8 |
| Number of Lines | 14 |
| Number of Members | 0 |
| Number of Surfaces | 7 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 10.769 tons |
| Dimensions (Metric) | 4.000 x 1.200 x 6.000 m |
| Dimensions (Imperial) | 13.12 x 3.94 x 19.69 feet |
