Rotational Shell Structures in Engineering Design

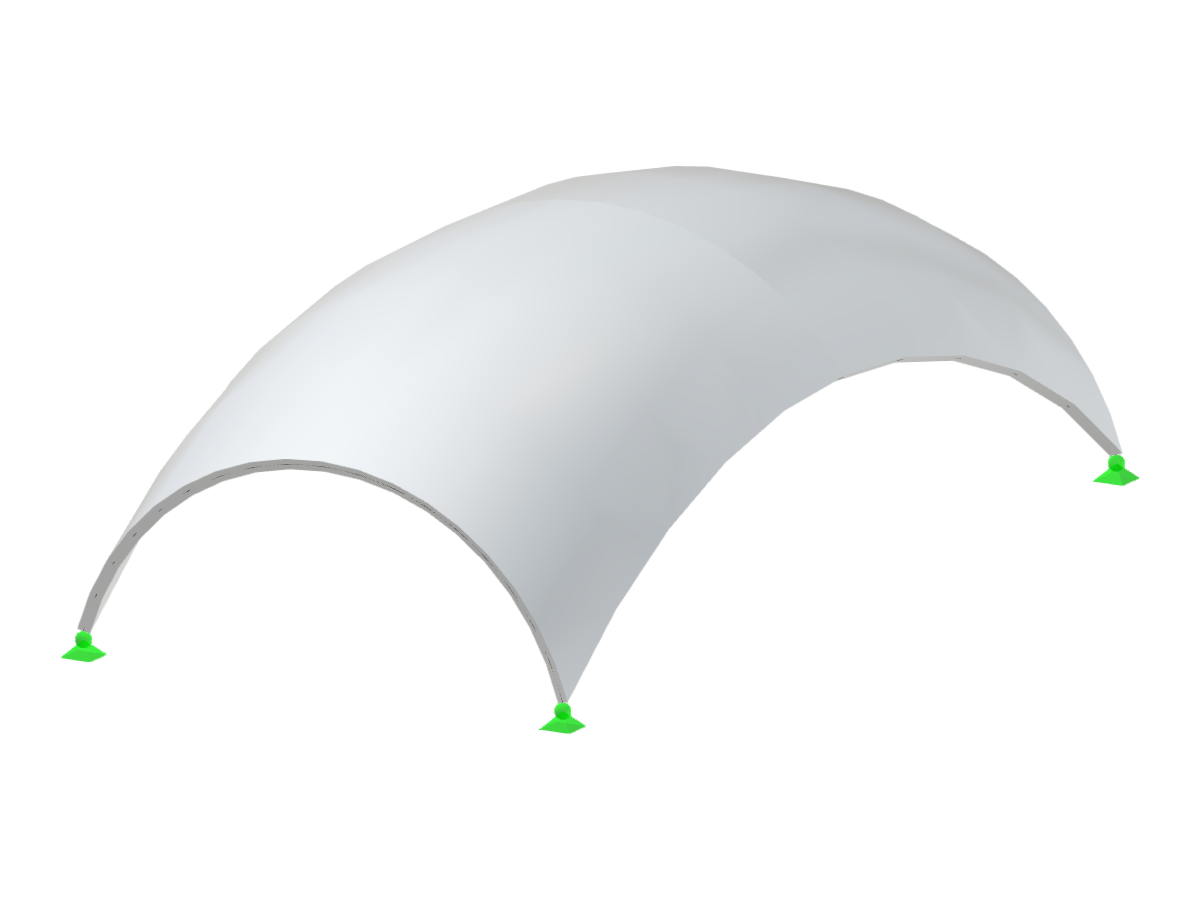

Illustration of rotational shell with a spherical surface and sail vault on a rectangular base.
The image depicts a rotational shell structure featuring a spherical surface complemented by a sail vault design on a rectangular plan. This architectural concept highlights the geometrical elegance and engineering capabilities in constructing complex shell forms. The structural representation focuses on the intricate balance between geometry and practical application in civil engineering.
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 9 |
| Number of Lines | 12 |
| Number of Members | 0 |
| Number of Surfaces | 4 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 10.104 tons |
| Dimensions (Metric) | 4.000 x 2.500 x 8.000 m |
| Dimensions (Imperial) | 13.12 x 8.2 x 26.25 feet |
