Hypar Surface Structures with Anticlastic Geometry

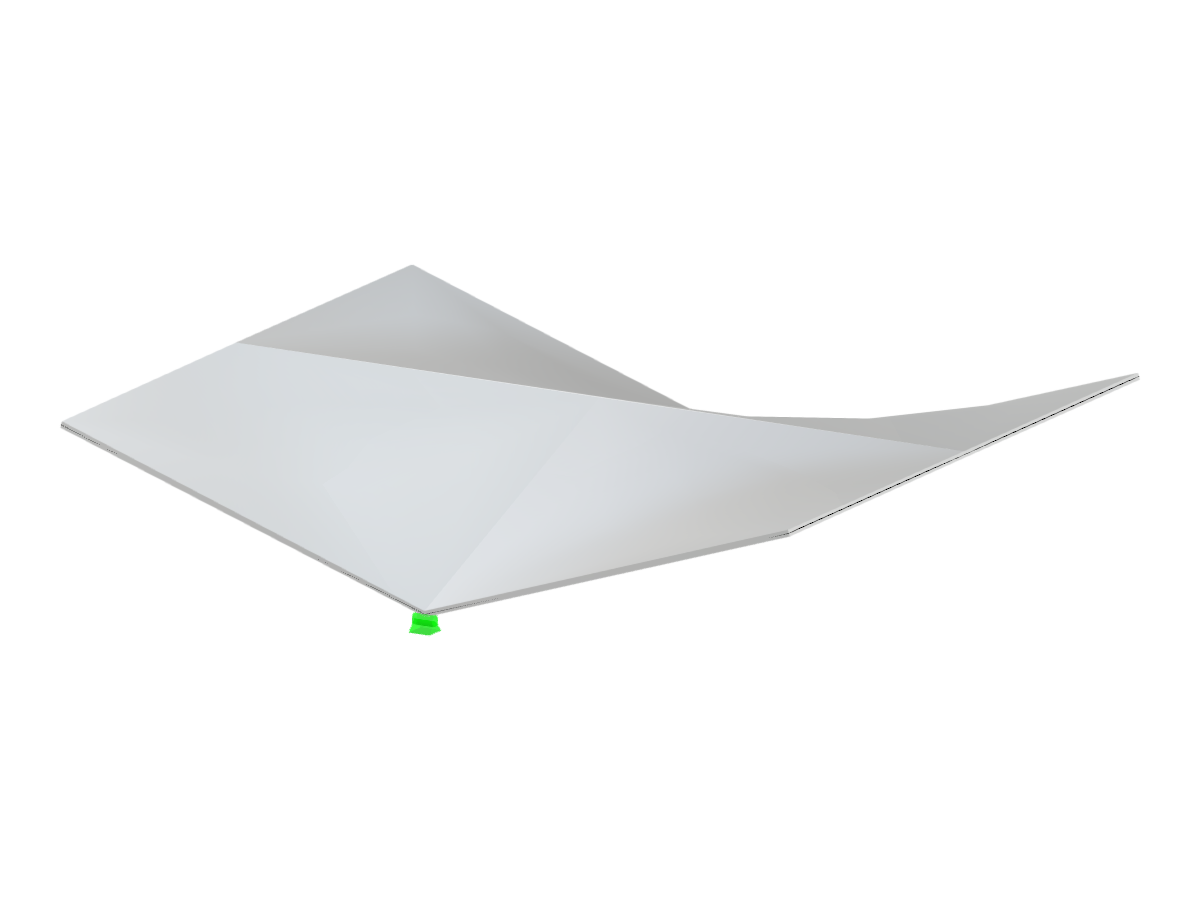

Anticlastic shell structures featuring four hyperbolic paraboloid surfaces over a rectangular plan with two boundary conditions and folds on one level.
The image depicts anticlastic shell structures known as "hypar" surfaces, comprising four hyperbolic paraboloid elements arranged over a rectangular plan. The configuration includes two boundaries and two folds on a single level. This structural arrangement is often utilized for its aesthetic appeal and structural efficiency in architectural designs.
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 9 |
| Number of Lines | 12 |
| Number of Members | 0 |
| Number of Surfaces | 4 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 31.315 tons |
| Dimensions (Metric) | 12.000 x 2.000 x 10.000 m |
| Dimensions (Imperial) | 39.37 x 6.56 x 32.81 feet |
