Anticlastic Shell Structures with Hypar Surfaces

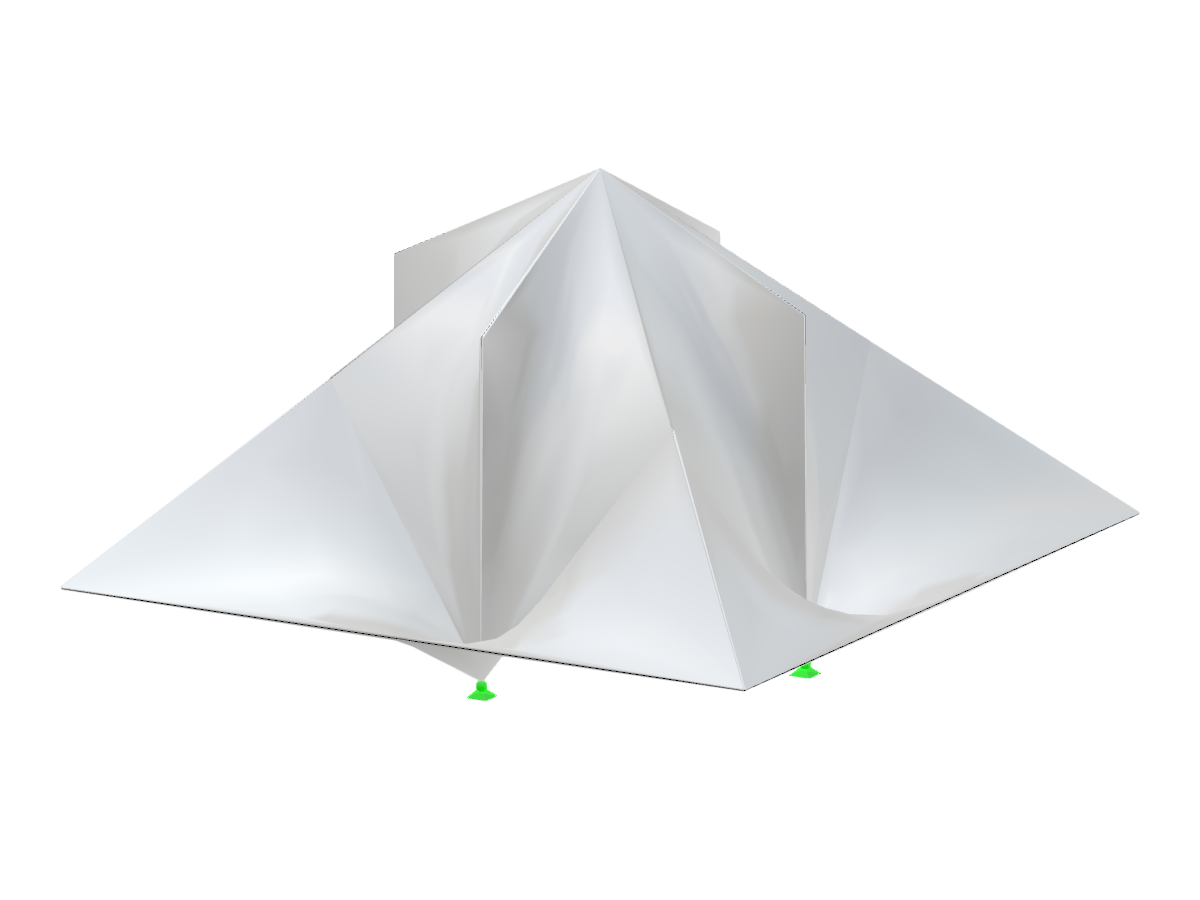

A model showcasing sixteen anticlastic "hypar" surfaces over a square plan, illustrating space-defining structures with straight-edged surfaces.
This image exhibits a structural design comprising sixteen anticlastic "hypar" surfaces arranged over a square plan. These surfaces feature characteristic straight-edged configurations, highlighting an approach to defining and enclosing space. The "hypar" surfaces exemplify a versatile architectural and engineering concept for dynamic structural forms.
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 21 |
| Number of Lines | 36 |
| Number of Members | 0 |
| Number of Surfaces | 16 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 179.282 tons |
| Dimensions (Metric) | 20.000 x 12.000 x 20.000 m |
| Dimensions (Imperial) | 65.62 x 39.37 x 65.62 feet |
